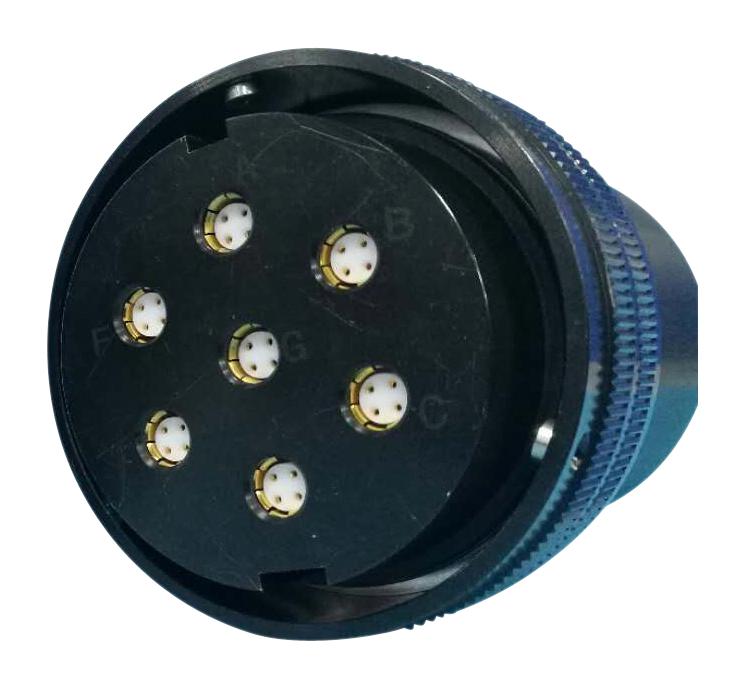

AMPHENOL INDUSTRIAL GTC06EQX36BVS025LC High-Speed Industrial Connector
The Amphenol GTC06EQX36BVS025LC is a high-speed, rugged connector featuring quick positive coupling and high EMI shielding, suitable for hazardous environments. It offers a bandwidth up to 1.25 GHz, exceeding data rates of 2.5 Gbps, with a maximum voltage rating of 50 Vrms at sea level. Designed for industrial applications, it withstands temperatures from -55°C to +125°C, provides high shock and vibration resistance, and is IP69K rated when mated. Constructed with durable aluminum or stainless steel components, it meets CAT5e performance standards, ideal for factory automation and control systems.
AMPHENOL INDUSTRIAL GTC06EQX36BVS025LC High-Speed Industrial Connector Specifications:
- Operating Temperature Range: -55°C to +125°C
- Durability (Mating Cycle): 2000
- Coupling: Reverse Bayonet, Quick positive coupling
- Ingress Protection: IP67, IP69K when mated
- Material: Aluminum or stainless steel
- Salt Spray Resistance: Up to 500 hours depending on plating
- Bandwidth: Up to 1.25 GHz
- Insertion Loss: <0.4dB@100MHz
- Return Loss: <20dB@100MHz
- Voltage Rating: 50 Vrms max. @ sea level
- Impedance: 100 or 150 Ohm differential pairs
- Certifications: RoHS, REACH
- Shock & Vibration Resistance: High
Buy the Amphenol Series IDS-104 High-Speed Connector: GTC06EQX36BVS025LC
Purchase the Amphenol Series IDS-104 GTC06EQX36BVS025LC connector online now to enhance your automation systems. This high-speed, rugged connector provides reliable EMI shielding, quick coupling, and IP69K rated durability, suitable for hazardous and industrial environments. Operating from -55°C to +125°C, it withstands high shock and vibration, features aluminum or stainless steel construction for long-term performance, and complies with RoHS and REACH standards. Perfect for factory automation, control devices, and harsh conditions, ensuring seamless, high-speed data connectivity.
Order your Amphenol Series IDS-104 GTC06EQX36BVS025LC connector today and ensure reliable high-speed data transmission in challenging industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL GTC06EQX36BVS025LC?
You can click on the BUY or RFQ button to purchase GTC06EQX36BVS025LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part GTC06EQX36BVS025LC?
You can download the GTC06EQX36BVS025LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of GTC06EQX36BVS025LC?
AMPHENOL INDUSTRIAL
