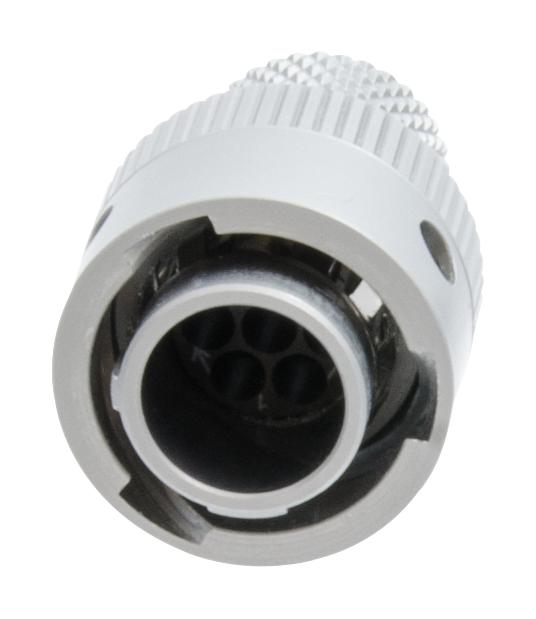

AMPHENOL INDUSTRIAL MB06TA0807SN574 Industrial Micro-B Connector
Amphenol's Micro-B Series Connectors are designed for industrial applications requiring a compact, lightweight, and reliable high-density connection solution. Featuring an aluminum shell with a robust triple bayonet coupling mechanism for quick and secure mating (1/4 turn), these connectors provide excellent shell-to-shell EMI shielding and high mating cycle durability. They utilize stamped and formed contacts and include an internal EMI grounding spring for superior electrical conductivity. Available in various mounting options, including in-line and 2-hole flange mounts, these connectors are suitable for automotive systems, factory automation, industrial equipment, instrumentation, robotics, security systems, telecommunications, and test and measurement setups.
AMPHENOL INDUSTRIAL MB06TA0807SN574 Industrial Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Plating: Tin/Gold Plated
- Ingress Protection: IP67 with cable gland or backshell in mated condition
- Operating Temperature Range: -40°C to 125°C
- Mating Cycles: 500
- Voltage Rating: AC 250V RMS
- Test Voltage: AC 500V RMS
- Contact Resistance: 22mΩ Max
- Current Rating: 3A for #22D contacts
- Vibration Resistance: According to IEC-364-28D
- Salt Spray Resistance: 500 hours with Gray ZnNi finish or 48 hours with Electroless Nickel
- Shell Styles: Various including O1H/01T/03H/03A for receptacles and 06H/06T for plugs
- Insert Arrangements: 7, 10, 15 poles with corresponding configurations
- Operating Temperature: -40°C to 125°C
- Protection Level: Up to IP67 when mated with appropriate backshell or cable gland
Buy the Amphenol MB06TA0807SN574 – Reliable Industrial Micro-B Connector for Automation and Heavy Equipment
Purchase the Amphenol Micro-B Connector MB06TA0807SN574 online today and experience reliable, high-density connections perfect for automation, robotics, telecommunications, and industrial equipment. Designed with an aluminum shell, triple bayonet coupling, and stamped contacts, this connector ensures quick and secure mating, high durability, and excellent EMI shielding. Suitable for harsh environments, it features up to 500 mating cycles, IP67 protection with accessories, and a temperature range from -40°C to 125°C. Ideal for engineers and technicians seeking quality and efficiency in small footprint connectors.
Get Amphenol Micro-B MB06TA0807SN574 today—built for high performance, durability, and quick coupling in industrial automation and rugged environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB06TA0807SN574?
You can click on the BUY or RFQ button to purchase MB06TA0807SN574 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB06TA0807SN574?
You can download the MB06TA0807SN574 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB06TA0807SN574?
AMPHENOL INDUSTRIAL
