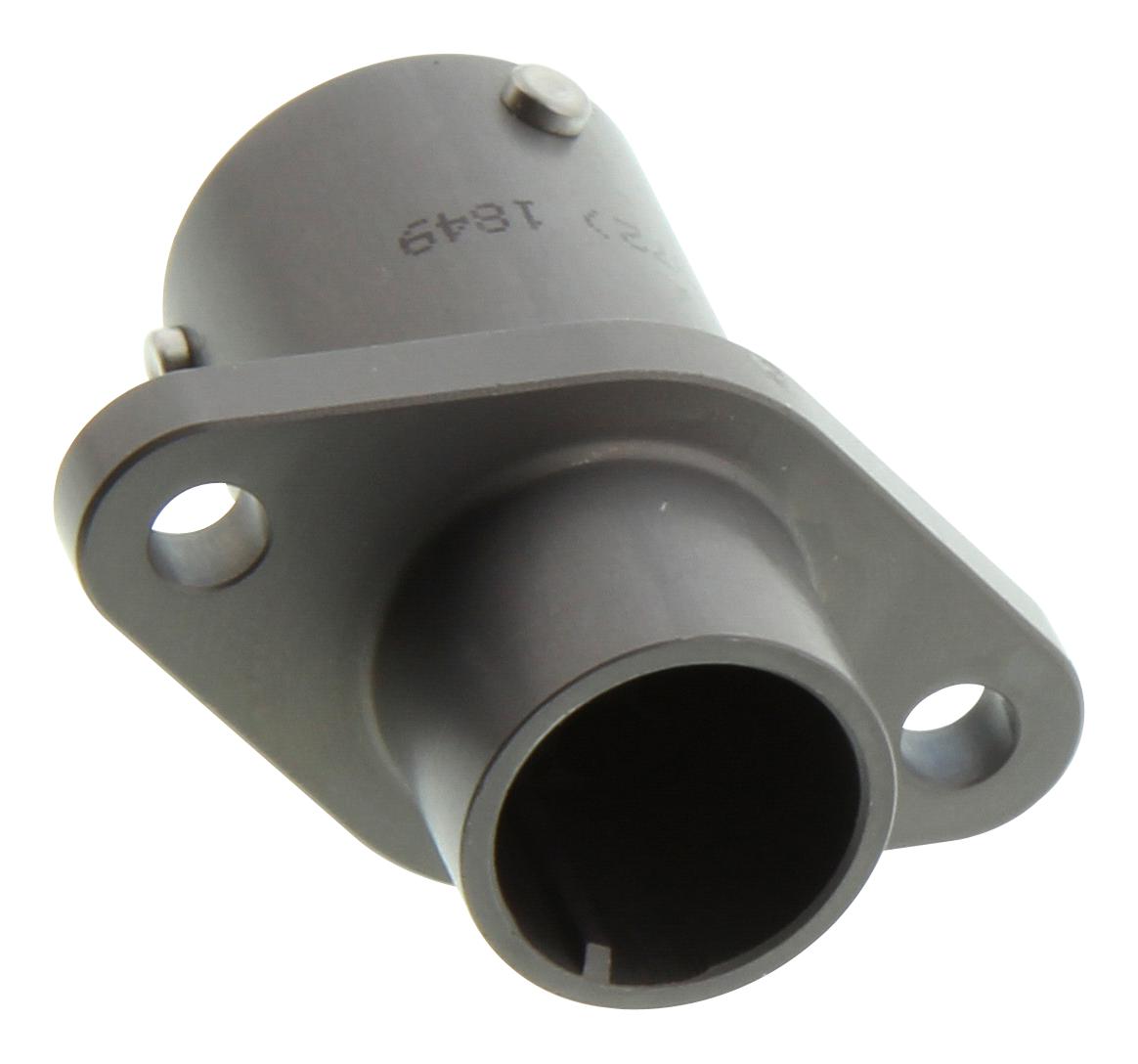

AMPHENOL INDUSTRIAL MB03A0807SN072 Micro-Connector
Amphenol's Micro-B Series Connectors are compact, lightweight, and designed for high-density applications requiring reliable electrical performance and effective EMI shielding. Constructed with an aluminum shell and featuring a robust triple bayonet coupling mechanism, these connectors support high mating cycles and provide excellent shell-to-shell electrical bonding through an internal EMI grounding spring. The range includes various mounting options such as inline and two-hole flange mounts, making them suitable for industrial, automotive, automation, instrumentation, robotics, security, telecommunications, and test & measurement applications. Developed for affordability without compromising performance, these rugged connectors ensure high reliability in demanding environments.
AMPHENOL INDUSTRIAL MB03A0807SN072 Micro-Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring Material: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Temperature Range: -40°C to 125°C
- Ingress Protection in mated condition with Heat Shrink: IP54
- Ingress Protection with Cable Gland Backshell: IP67
- Test Current for #22D Contact: 3A
- Recommended Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 500V, 1000MO Min
- Contact Resistance: 22mΩ Max
- Mating Cycles: 500
- Vibration and Shock Resistance: In accordance with IEC standards
- Salt Spray Resistance: Up to 500 hours with Gray ZnNi coating
Buy the Buy Amphenol Micro-B™ Part Number MB03A0807SN072 Online
Discover the high-density, lightweight, and rugged Micro-B Series connectors from Amphenol, designed for demanding industrial and electronic applications. Featuring a robust aluminum shell with a triple bayonet coupling, these connectors provide rapid mating, excellent EMI shielding, and high durability. Suitable for automation, robotics, telecommunications, and harsh environments, they support up to 500 mating cycles, have IP67 ingress protection with cable glands, and are RoHS compliant. Order online to ensure reliable, cost-effective connectivity for your critical industrial projects.
Buy Amphenol Micro-B connector MB03A0807SN072 now and experience unmatched reliability and high-performance connectivity in industrial and automation environments.
