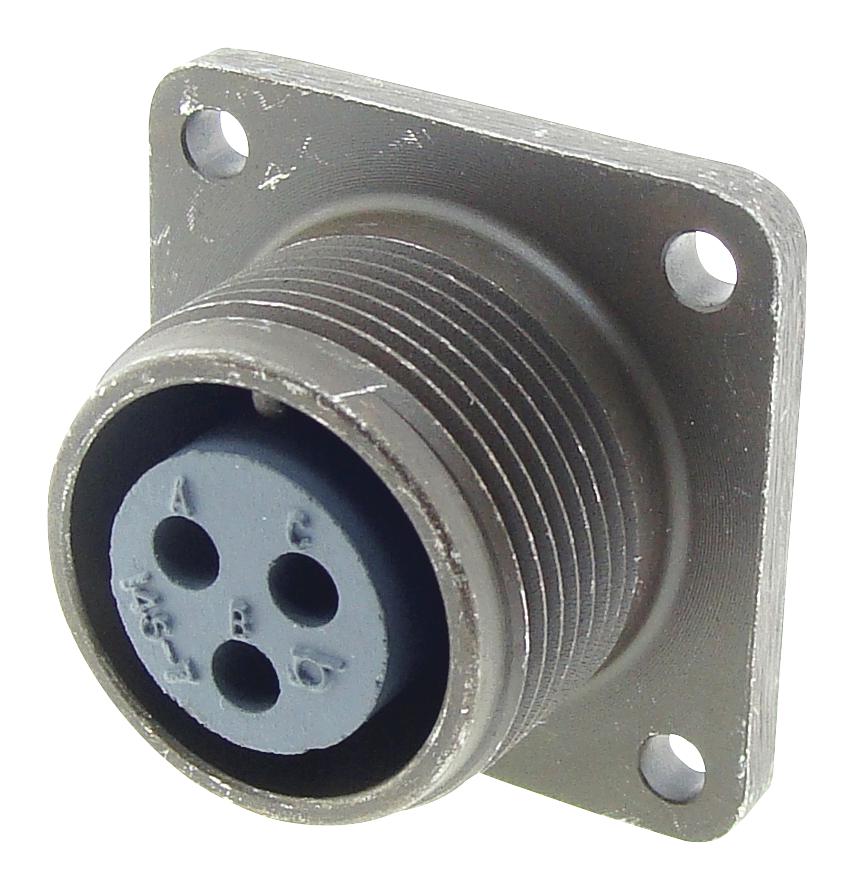

AMPHENOL INDUSTRIAL MS3102E2015S High-Performance Cylindrical Receptacle
The MS3102E2015S is a high-reliability, environmentally resistant box mounting receptacle designed from high-grade aluminum alloy. It features threaded connections, a positive key/keyway polarization system, and resilient neoprene inserts for moisture and vibration resistance. Suitable for demanding military and industrial environments, it supports operating voltages up to 3000 VAC (RMS) at sea level. It accommodates a variety of insert arrangements, contact types including crimp and solder, and is available in multiple service classes. Ideal for applications requiring durability, environmental sealing, and reliable electrical performance.
AMPHENOL INDUSTRIAL MS3102E2015S High-Performance Cylindrical Receptacle Specifications:
- Material: High-grade aluminum alloy
- Finish: Electrically conductive cadmium plated, olive drab chrome after-treatment
- Operating Voltage: Up to 3000 VAC RMS at sea level
- Threaded Coupling: Yes, with key/keyway polarization
- Inserts: Resilient neoprene providing moisture and vibration resistance
- Contact Options: Solder and crimp, sizes 16-0, accommodating 22-0 AWG wires
- Standards: Complies with MIL-DTL-5015, MIL-STD-1553, and environmental testing requirements
- Shell Sizes: Multiple sizes available, up to 48 circuits with over 100 insert patterns
- Sealing: Interfacial, shell-to-shell gaskets, and individual contact seals
- Class Designations: A, C, E/F, R - tailored for different environmental needs
- Application: Military ground support, shipboard, aerospace, industrial machinery
- Temperature Range: -67°F to +250°F
- Certifications: MIL-STD-202, MIL-STD-1344, MIL-STD-810
Buy the Amphenol Series MS3102E015S: High-Performance Cylindrical Receptacle
Order the Amphenol MS3102E015S now to ensure your equipment is equipped with a robust, environmentally sealed connector designed for military and industrial environments. Featuring resilient neoprene inserts, threaded coupling, and multiple contact configurations, this connector guarantees maximum durability and sealing against moisture, vibration, and temperature extremes. Perfect for applications where reliability and environmental resistance are critical. Purchase online today to benefit from fast shipping, competitive pricing, and trusted quality backed by Amphenol’s industry-leading standards.
Get Amphenol MS3102E015S today—built for durability, environmental resistance, and reliable electrical connection in demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102E2015S?
You can click on the BUY or RFQ button to purchase MS3102E2015S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102E2015S?
You can download the MS3102E2015S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102E2015S?
AMPHENOL INDUSTRIAL
