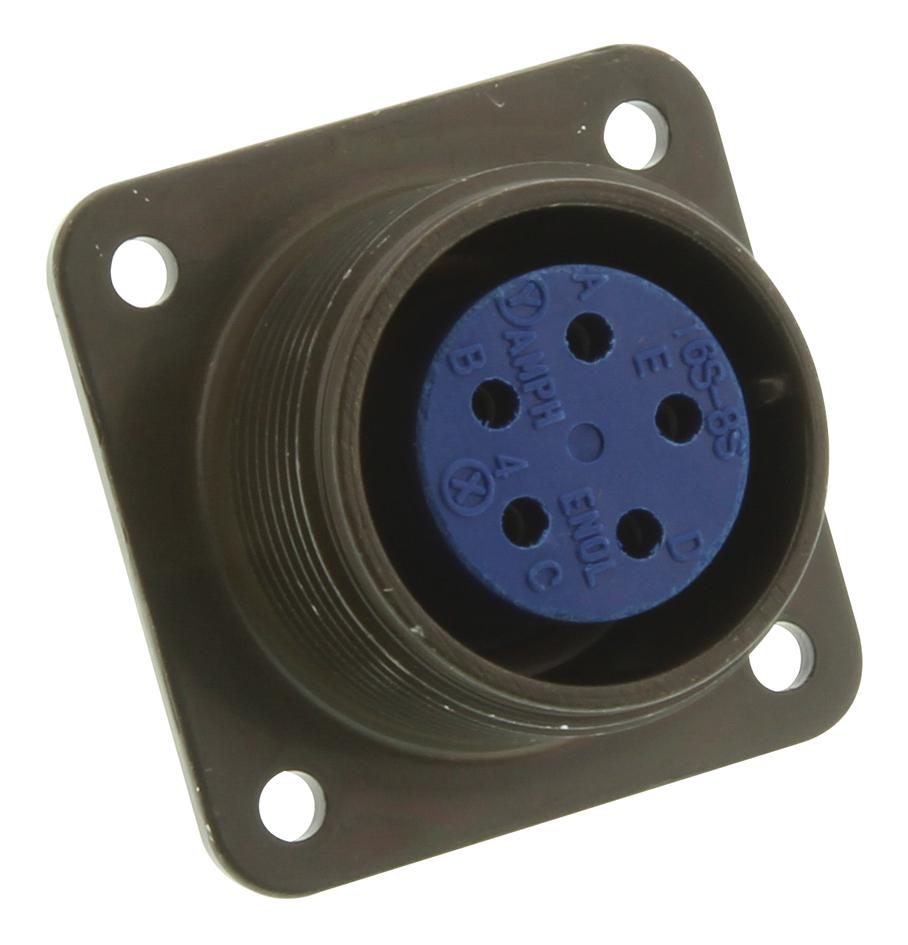

AMPHENOL INDUSTRIAL MS3102A16S8S Box Mounting Receptacle
The MS3102A16S8S is a versatile box mounting receptacle designed for industrial and military applications where durability, environmental resistance, and reliable connections are essential. Constructed from high-grade aluminum alloy with zinc plating for corrosion resistance, it features resilient synthetic rubber inserts for high dielectric strength, moisture sealing, and vibration resistance. The connector mates with compatible counterparts, providing a secure, threaded connection suitable for demanding environments. Ideal for use in equipment enclosures, junction boxes, and heavy-duty systems requiring stable, sealed electrical connections under harsh conditions.
AMPHENOL INDUSTRIAL MS3102A16S8S Box Mounting Receptacle Specifications:
- Material: High grade aluminum alloy with zinc plating for corrosion resistance
- Insulation Resistance: Minimum 5,000 Mega ohms at 25°C
- Operating Temperature Range: -55°C to +125°C
- Contacts: Silver plated copper alloy, with size 16 and 12 socket options
- Insert Material: Resilient synthetic rubber for dielectric strength and vibration resistance
- Thread Size: 3/4-20 NEF (with optional threading specifications listed in detailed tables)
- Mounting Type: Box mounting for equipment or junction boxes
- Environmental Resistance: Suitable for vibration, moisture, pressure, and temperature extremes
- Dielectric Withstanding Voltage: 2000 VAC (rms)
- Durability: 500 mating cycles
Buy the Amphenol Series MIL-C-5015: Box Mounting Receptacle MS3102A16S8S
Purchase the Amphenol MS3102A16S8S box mounting receptacle online today to ensure secure, corrosion-resistant electrical connections for your industrial or military equipment. Designed from high-grade aluminum alloy with zinc plating, it offers excellent environmental resistance and long-term durability. Featuring synthetic rubber inserts for moisture sealing and vibration resistance, this connector guarantees dependable performance in demanding environments. Simplify installation and maintenance while ensuring safety, reliability, and compliance with MIL-C-5015 standards by ordering through our online shop.
Buy Amphenol MS3102A16S8S now and experience unmatched reliability and performance in rugged, sealed electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102A16S8S?
You can click on the BUY or RFQ button to purchase MS3102A16S8S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102A16S8S?
You can download the MS3102A16S8S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102A16S8S?
AMPHENOL INDUSTRIAL
