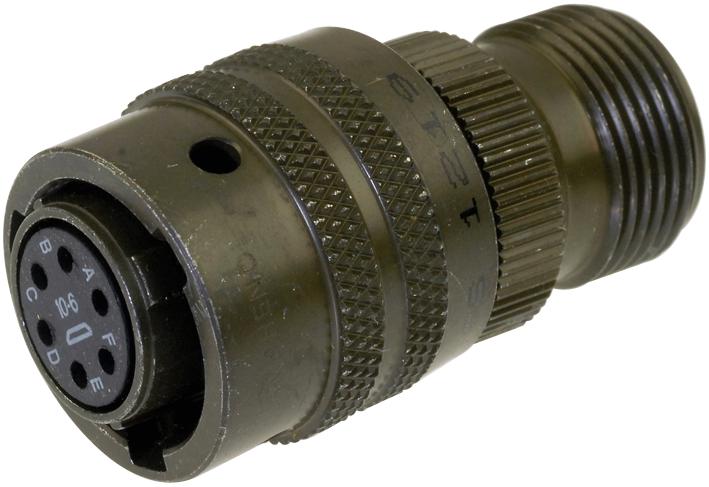

AMPHENOL INDUSTRIAL PT06A106S Miniature Cylindrical Connector
The PT06A10-6S from Amphenol is a PT series, MIL-DTL-26482 Series I equivalent straight plug connector featuring 6 contacts. These miniature cylindrical connectors offer high-density contact arrangements within a circular shell, designed to withstand salt spray exposure for up to 48 to 500 hours. They include a 5 key/keyway polarization and a 3-point bayonet lock coupling for secure, positive mating with no risk of cross-connection. A wave washer in the coupling nut provides spring tension to maintain an effective interfacial seal. The insert and gasket are made from resilient neoprene for durability and environmental sealing. Built for harsh environments, these connectors perform reliably under extreme shock, vibration, and exposure conditions. They are suitable for applications requiring environmental sealing or pressurized environments, and feature quick disconnect bayonet coupling for rapid mating and unmating. Compatible with all MIL-DTL-26482 connectors, they support up to 500 mating cycles and operate within a temperature range of -55°C to +125°C. Made from aluminum alloy with olive drab chromate over cadmium plating, and copper alloy solder socket contacts with gold plating, they are UL recognized (file E115497). These connectors are ideal for industrial and commercial applications requiring robust, reliable electrical connections.
AMPHENOL INDUSTRIAL PT06A106S Miniature Cylindrical Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy, gold plated
- Number of Contacts: 6
- Contact Size: 20 AWG
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 500 V (max)
- Current Rating: 13 A
- Mating Cycles: Up to 500
- Connection Type: Bayonet coupling with 3-point bayonet lock
- Seal Material: Resilient neoprene gasket and insert
- Durability: Shock and vibration resistant
- Compliance: UL recognized, file E115497
- Application: Harsh environments with environmental sealing, pressurized environments
Buy the Amphenol Series PT: PT06A10-6S Miniature Cylindrical Connector with 6 Contacts
Order the Amphenol PT06A10-6S miniature cylindrical connector online today and ensure secure, reliable electrical connections in industrial and aerospace applications. Featuring environmental sealing, rapid bayonet coupling, and high durability, this connector suits extreme conditions with temperature ranges from -55°C to +125°C, supporting up to 500 mating cycles. Made from corrosion-resistant aluminum alloy and gold-plated copper contacts, it guarantees long-lasting performance. Easy to use and UL recognized, it is perfect for demanding industrial environments requiring robust, high-performance connectivity.
Buy Amphenol PT06A10-6S now and experience unmatched reliability and performance in harsh environmental conditions.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT06A106S?
You can click on the BUY or RFQ button to purchase PT06A106S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT06A106S?
You can download the PT06A106S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT06A106S?
AMPHENOL INDUSTRIAL
