AMPHENOL INDUSTRIAL MS3106A14S1S MIL-DTL-5015 Connector

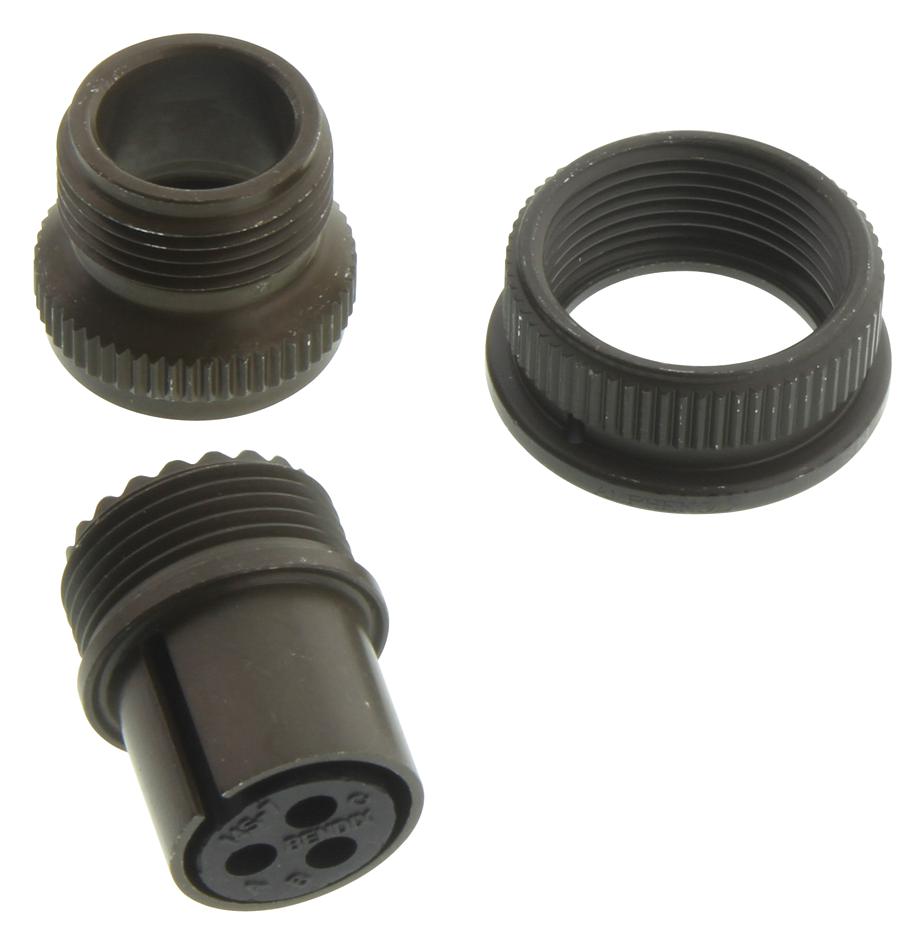

The MS3106A14S-1S from Amphenol is a MIL-DTL-5015 series straight plug connector featuring 3 contacts. These connectors are available in various shell materials and finishes, offering high durability and resistance to corrosion. They are designed with a compact circular shell that provides high contact density and robust construction suitable for medium to heavy-duty applications. The connector is capable of withstanding extreme shock, vibration, and harsh environmental conditions, including exposure to salt spray and wide temperature ranges from -55°C to +125°C. It offers reliable electrical performance with a minimum insulation resistance of 5000 MΩ at 25°C, operates with a quick threaded coupling mechanism, and provides environmental sealing with IP67 protection. The body is made from aluminum alloy with olive drab chromate over cadmium plating, and the contacts are brass or copper alloy with silver plating, ensuring high reliability for demanding applications in defense, military, aerospace, and industrial sectors.
AMPHENOL INDUSTRIAL MS3106A14S1S MIL-DTL-5015 Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Brass or copper alloy with silver plating
- Number of Contacts: 3
- Temperature Range: -55°C to +125°C
- Environmental Sealing: IP67 protection
- Insulation Resistance: Min. 5000 MΩ at 25°C
- Operating Voltage: Up to 3000 VAC (RMS)
- Coupling Mechanism: Quick threaded coupling
- Durability: Resistant to shock, vibration, and salt spray
- Physical Dimensions: Standard MIL-DTL-5015 shell sizes appropriate for shell size 14
- Application: Military, aerospace, industrial systems requiring high reliability and environmental resistance
Buy the Buy Amphenol MS3106A14S1S Part Number MS3106A14S-1S Online
Purchase the Amphenol MS3106A14S-1S straight plug connector today and enjoy high durability, corrosion resistance, and reliable environmental sealing. Designed for demanding environments, this connector features a rugged aluminum shell with olive drab chromate finish, ensuring resistance to salt spray, shocks, and vibrations. With 3 brass or copper contacts plated in silver, it guarantees consistent electrical performance even under extreme conditions. Its quick threaded coupling mechanism allows for secure connections, making it ideal for military, aerospace, and industrial applications where reliability and environmental protection are critical. Buy online now for fast delivery and the assurance of top-quality electrical connectivity in your toughest applications.
Buy Amphenol MS3106A14S-1S connector now and experience unmatched durability and environmental sealing for critical military and industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3106A14S1S?
You can click on the BUY or RFQ button to purchase MS3106A14S1S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3106A14S1S?
You can download the MS3106A14S1S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3106A14S1S?
AMPHENOL INDUSTRIAL
