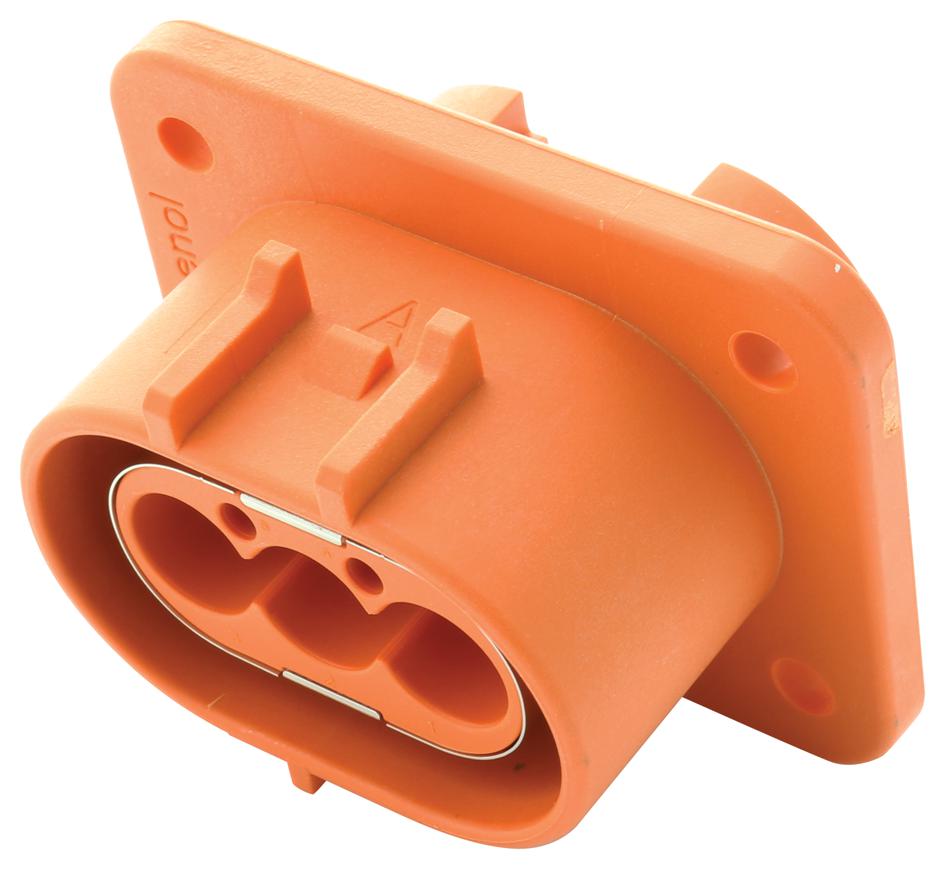

AMPHENOL INDUSTRIAL ELR3A3 High-Voltage Automotive Connector
The Amphenol ePower-Lite IDS-94 series is designed for EV and HEV applications, supporting 3000 VAC RMS and contact test currents across temperature ranges from -40°C to 125°C. These 2, 3, and 4-pole electrical receptacles and plugs are equipped with HVIL and shielding shells, ensuring reliable electrical connections and safety. Suitable for high-voltage automotive environments, they feature compact dimensions with a 3.6mm contact size, and are compatible with IEC 60529 standards, offering robust shielding and durability for demanding electric vehicle charging and auxiliary systems.
AMPHENOL INDUSTRIAL ELR3A3 High-Voltage Automotive Connector Specifications:
- Voltage Rating: 3000 VAC RMS
- Contact Test Current: -40°C to 125°C
- Number of Contacts: 2, 3, or 4 with HVIL & shielding shell
- Contact Size: 3.6mm/#20 salt ‘96H, 3.6mm/#20 HVIL optional, 3.6mm/#16 recommended torque 4-6NM
- Application: EV and HEV vehicle charging and auxiliary connections
- Standards Compliance: IEC 60529 (IP code)
- Mechanical Features: Mated connections rated at 1P67, compact and robust design, with optional HVIL
- Material: Reinforced plastic shell, protective shielding
- Environmental: Suitable for -40°C to 125°C temperature range
- Physical Dimensions: Designed for tight automotive installation, specific dimensions vary by model
- Additional Features: Shielding shell for EMI/RFI protection, high durability for automotive use
Buy the Amphenol Series IDS-94 EV/HEV Connector: ELR3A3
Purchase the Amphenol high-voltage automotive connector today for your EV or HEV project. Designed with HVIL and shielding shell, it provides reliable electrical connection with rated voltage of 3000 VAC RMS. Suitable for demanding environments, it features contact sizes of 3.6mm/#20 and #16, with a temperature range from -40°C to 125°C. Compact and durable, this connector ensures safety, EMI/RFI protection, and easy mounting for vehicle charging, making it an essential component for electricians and automakers seeking safety and performance.
Get Amphenol IDS-94 ELR3A3 today—built for high-voltage safety and long-lasting durability in electric vehicle applications.
