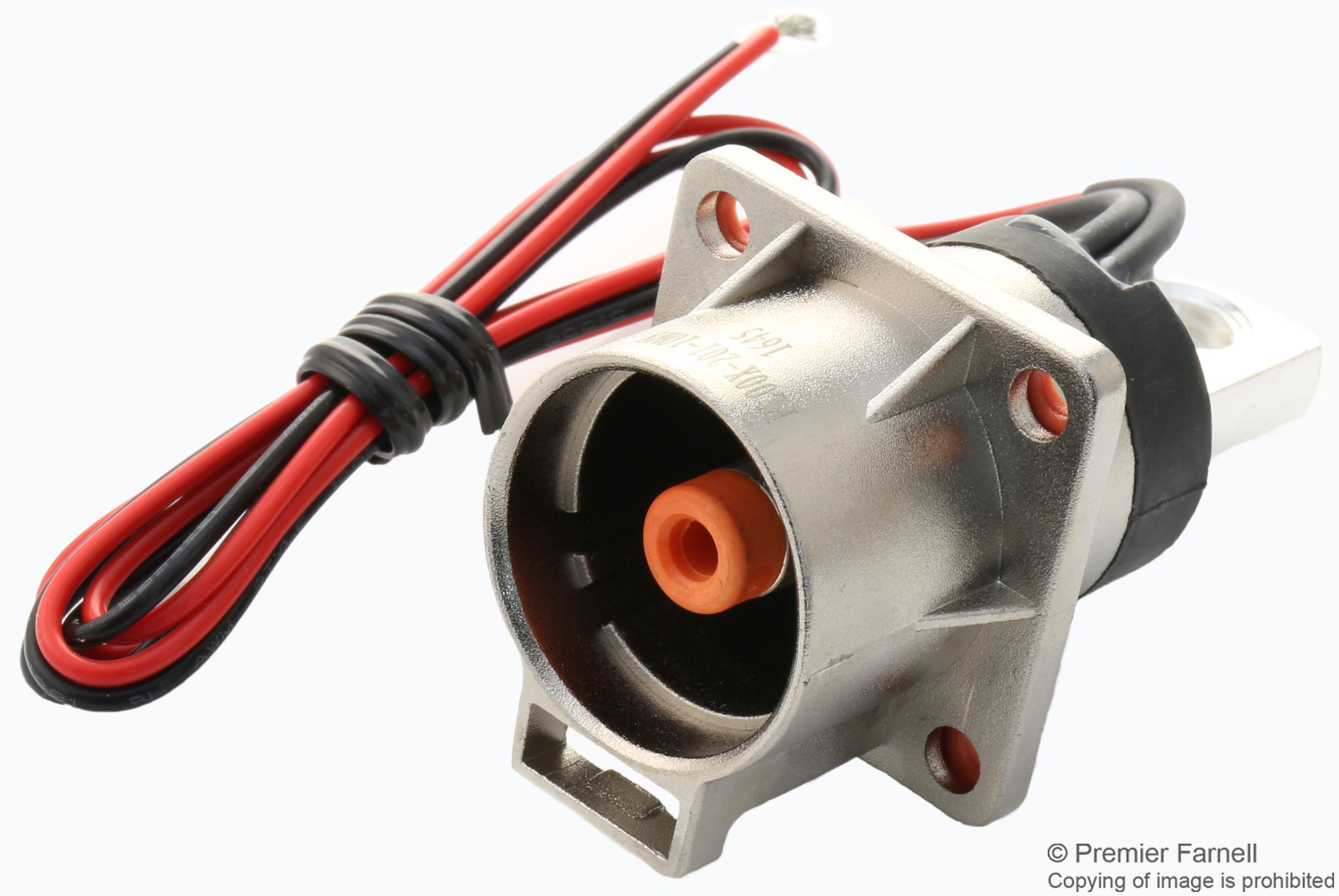

AMPHENOL INDUSTRIAL PL00X20110M8 PowerLok Industrial Power Connector
The PowerLok™ is a versatile industrial connector series designed for high-current and high-voltage applications, supporting ratings up to 1000V DC and currents ranging from 20A to 500A. Its IP67 protection level and fully shielded design ensure durability in harsh environments. Available in 1, 2, and 3-position configurations, it features automatic secondary locking, multiple polarization keys, and options for straight or right-angle plugs and receptacles. Suitable for heavy-duty cable connections in automation, manufacturing, and power distribution systems.
AMPHENOL INDUSTRIAL PL00X20110M8 PowerLok Industrial Power Connector Specifications:
- Voltage Rating: 1000V DC
- Current Rating: 20A to 500A
- Protection: IP67
- Temperature Range: -40°C to +125°C
- Contact Resistance: Low, HVIL optional
- Mating Cycle: Minimum 500 times
- Shielding: Fully shielded
- Keying: 5 keys for multi-polarization
- Connector Series: 120, 300, 500
- Connector Types: Receptacle and plug, straight and right-angle
- Cable Size Compatibility: 20mm² to 70mm² (varies by series)
- Materials: UL94 V-0 flammability rated
- Mounting: Screw hole options, stud sizes M6 to M10
- Industry Use: Heavy-duty power supply, automation systems, power distribution
Buy the Amphenol Series PowerLok: High-Current Power Connector PL00X20110M8
Discover the reliable PowerLok series industrial connectors designed for demanding power applications. Rated up to 1000V DC and 500A, these connectors feature IP67 protection, full shielding, and multiple configurations including 1, 2, and 3-position options. Their robust locking mechanism, high-quality materials, and compatibility with various cable sizes ensure secure, durable connections in automation, manufacturing, and power distribution systems. Easy to install with screw hole or stud mounting options, PowerLok connectors deliver safety, performance, and longevity for industrial environments.
Get Amphenol PowerLok PL00X20110M8 today—built for precision and long-lasting durability in heavy-duty power applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PL00X20110M8?
You can click on the BUY or RFQ button to purchase PL00X20110M8 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PL00X20110M8?
You can download the PL00X20110M8 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PL00X20110M8?
AMPHENOL INDUSTRIAL
