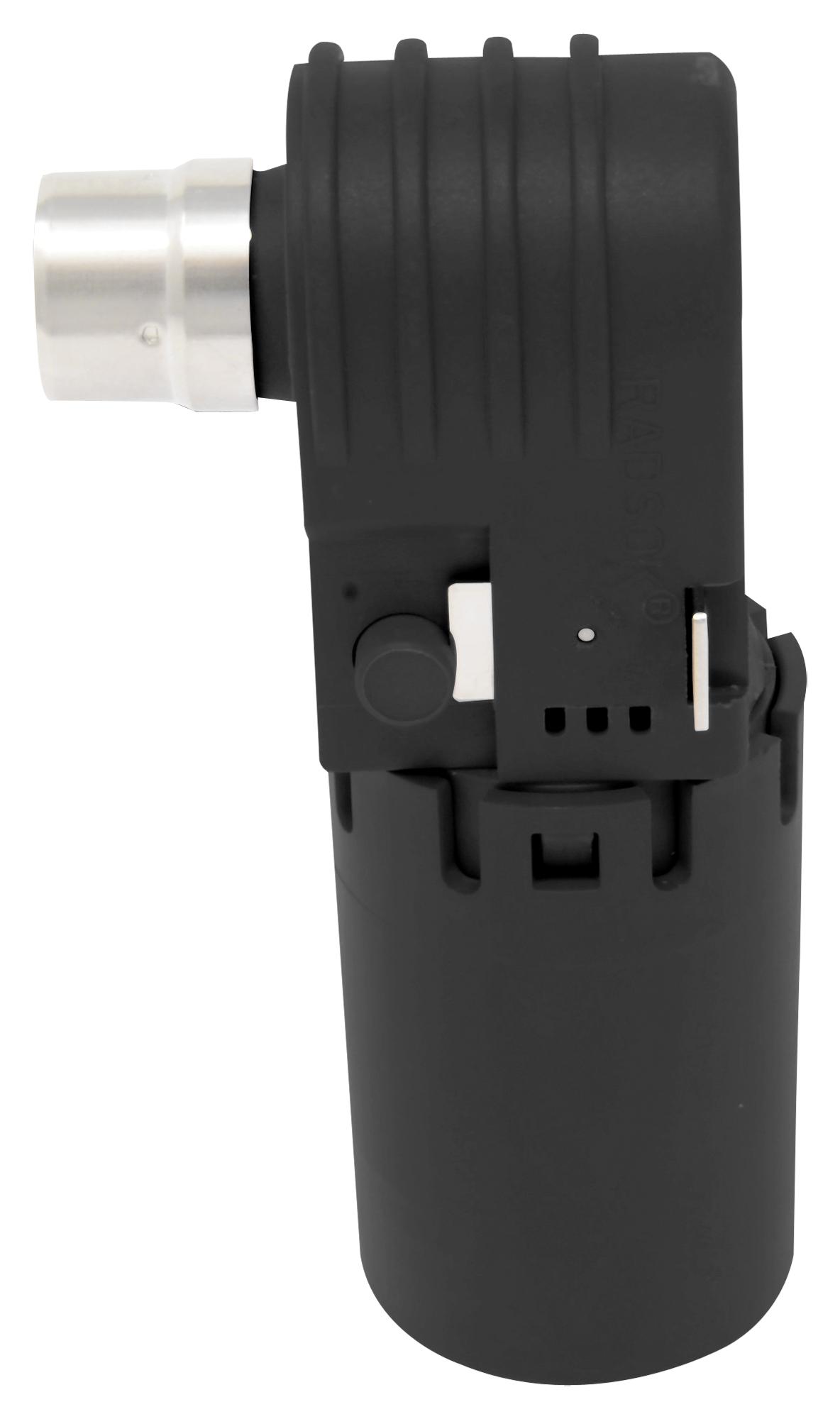

AMPHENOL INDUSTRIAL SLPPB50BSB0EH Sealed Power Connectors
The SurLok Plus™ compression lugs from Amphenol Industrial are high-reliability, environmentally sealed connectors designed for versatile industrial and transportation applications. Utilizing advanced R4 RADSOK® technology, these compact connectors enable quick mating, secure connections, and easy press-to-release operation. They are suitable for electric vehicles, energy storage systems, process control, automation, heavy machinery, and rail transit. Available in various sizes, shell types, and contact configurations, they support electrical ratings up to 400A, operate within -40°C to 125°C, and meet UL94 V-0 flammability standards, providing durability and safety in demanding environments.
AMPHENOL INDUSTRIAL SLPPB50BSB0EH Sealed Power Connectors Specifications:
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temperature: -40°C to 125°C
- IP Rating: IP 67
- Flammability: UL 94 V-0
- Contact Size: 8.0mm (200A), 10.3mm (350A), 5.7mm (120A)
- Shell Types: Right-angle, Straight Plug, Straight Receptacle
- Connector Colors: Orange, Black, Red
- Locking: Spring Locking
- Protection: Touch Proof, HVIL
- Connectors Support Wire Gauges Up to: 95mm²
- Ingress Protection: IP67
- Design Features: EMI shielding, keyway options, press-to-release operation
- Physical Dimensions: Diameter ranges from 5.7mm to 10.3mm, sizes vary according to current capacity
Buy the Amphenol Series SurLok Plus Connectors: SLPPB50BSB0EH
Purchase Amphenol SurLok Plus high-current sealed connectors online today. These durable connectors are engineered with RADSOK technology, offering secure, quick mating and environmental resistance ideal for electric vehicles, energy storage, and industrial automation. Featuring IP67 sealing, UL94 V-0 flammability, and support for wire gauges up to 95mm², they operate efficiently from -40°C to 125°C. Choose from multiple sizes, shell types, and keyway options for versatile, reliable electrical connections in demanding environments.
Get Amphenol SurLok Plus Connectors today—built for high-current applications with reliable sealing and quick connection features.
