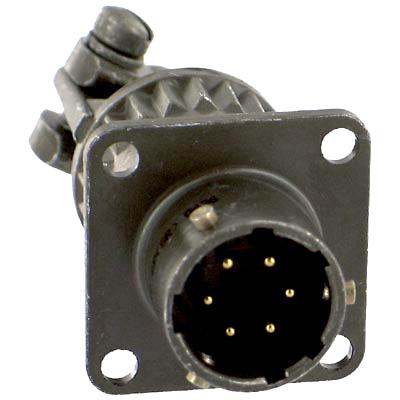

AMPHENOL INDUSTRIAL PT00E106PSR Miniature Circular Connector
The PT00E10-6P-SR connector from Amphenol belongs to the PT series, which are miniature cylindrical connectors designed for harsh environments. Based on MIL-DTL-26482 Series I specifications, these connectors feature a circular high-density shell with a bayonet coupling mechanism for quick and secure mating. They offer excellent resistance to salt spray (up to 500 hours), vibration, and operate over a temperature range of -55°C to +125°C. Constructed with aluminum alloy shells with olive drab chromate over cadmium plating, and copper alloy gold-plated solder pins, providing reliability for industrial and military applications. Rated for up to 500 mating cycles, they include durable neoprene insulators and gaskets, ensuring environmental sealing. Interchangeable with other MIL-DTL-26482 connectors, UL certified, and suitable for high-reliability, rugged environments requiring hermetic sealing and environmental protection.
AMPHENOL INDUSTRIAL PT00E106PSR Miniature Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy, gold-plated
- Temperature Range: -55°C to +125°C
- Salt Spray Resistance: Up to 500 hours
- Vibration Resistance: Yes
- Coupling Mechanism: Bayonet quick disconnect
- Rated Mating Cycles: 500 cycles
- Sealing: Hermetic with neoprene insulators and gaskets
- Electrical Rating: Up to 13A per contact
- Rated Voltage: 600 Vrms at sea level
- Insulation Material: Neoprene
- Rated for harsh environments including extreme temperatures, moisture, and vibration
- Compliance: MIL-DTL-26482 Series I, UL recognized
- Physical Dimensions: Compatible with MIL standard connectors, physical size appropriate for rugged applications
Buy the Amphenol PT00E10-6P-SR – Reliable MIL-DTL-26482 Miniature Connector for Industrial Applications
Order the Amphenol PT00E10-6P-SR miniature cylindrical connector online today. Designed for demanding environments, it features a high-density circular shell, quick bayonet coupling, and hermetic sealing. Made from durable aluminum alloy with corrosion-resistant plating, it fully complies with MIL-DTL-26482 Series I standards. Capable of handling up to 13A per contact and rated for 500 mating cycles, this high-reliability connector ensures secure electrical connections even under extreme temperature conditions from -55°C to +125°C. Perfect for industrial, aerospace, and military applications requiring environmental sealing and rugged performance. Secure yours now for outstanding durability and reliable performance in harsh environments.
Get Amphenol PT00E10-6P-SR today—built for rugged environments and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT00E106PSR?
You can click on the BUY or RFQ button to purchase PT00E106PSR from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT00E106PSR?
You can download the PT00E106PSR datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT00E106PSR?
AMPHENOL INDUSTRIAL
