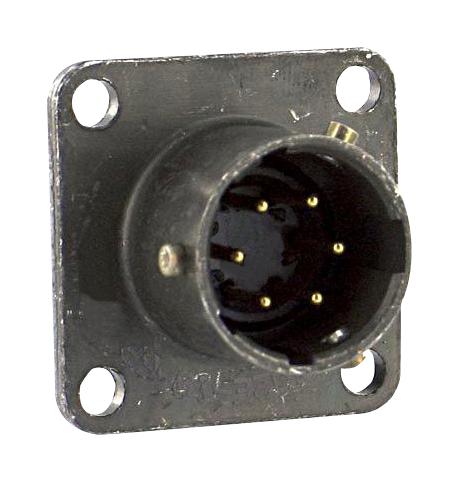

AMPHENOL INDUSTRIAL PT02E1623P Miniature Cylindrical Connector
Miniature cylindrical connectors designed for general duty and environmental sealing with a wide range of configurations including wall, cable, box mounting, straight, 90°, and hermetic types. They feature bayonet or threaded coupling, gold-plated copper contacts, resilient neoprene gaskets, and optional finishes such as cadmium, Electroless nickel, or Alumilite. Suitable for industrial, military, and geophysical applications, these connectors support power, thermocouple, coaxial contacts, and printed circuit board terminations, providing high reliability in rugged environments, with operating voltages up to 1000 VAC and temperatures from -55°C to +125°C.
AMPHENOL INDUSTRIAL PT02E1623P Miniature Cylindrical Connector Specifications:
- Operating Temperature: -55°C to +125°C
- Voltage Rating: up to 1000 VAC RMS at sea level
- Contact Material: Copper alloy, gold plated
- Contact Sizes: 8, 12, 16, 20, 22, 24 AWG
- Current Capacity: 5A (#20), 10A (#16), 17A (#12)
- Shell Sizes: 6 through 24
- Shell Material: Aluminum, cadmium plated with optional finishes
- Connectors include bayonet and threaded coupling styles
- Insert arrangements: multiple configurations, including hermetic and coaxial options
- Sealing: neoprene gaskets, optional hermetic glass seals, moisture-proof grommets
- Applications: industrial, military, geophysical, automation, aerospace
- Operates in harsh environments with salt, moisture, vibration, and shock resistance
- Diverse termination options: solder, crimp, PCB, flex circuit, printed circuit board tails
- Meet MIL-C-26482 standards with various series including Series 1 and Series 2
Buy the Amphenol PT02 – Reliable Miniature Cylindrical Connectors for Industrial Applications
Order the high-performance miniature cylindrical connectors from Amphenol now for versatile configurations, superior environmental sealing, and reliable electrical connections in demanding industrial, military, and geophysical applications. These connectors feature gold-plated contacts, multiple sealing options, and support power, thermocouple, coaxial, and PCB terminations, ensuring durability under harsh conditions such as vibration, moisture, and extreme temperatures. Enhance your assembly with trusted American technology and seamless online purchasing options for fast delivery and consistent quality.
Buy Amphenol PT02 now and experience unmatched durability and performance in rugged environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT02E1623P?
You can click on the BUY or RFQ button to purchase PT02E1623P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT02E1623P?
You can download the PT02E1623P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT02E1623P?
AMPHENOL INDUSTRIAL
