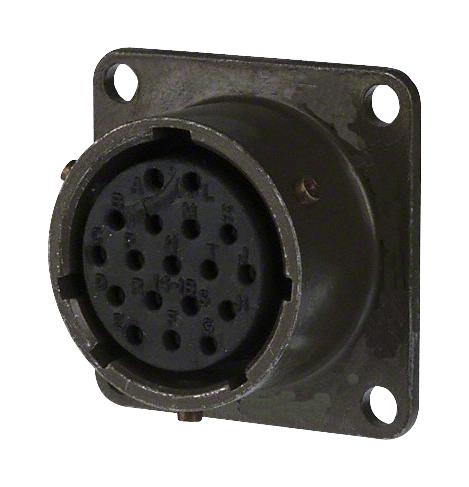

AMPHENOL INDUSTRIAL PT02SE1210S industrial connector
The PT02SE1210S is a robust industrial connector designed for harsh environments, complying with IEC 60603-7 variant 11. It features a metallic shell with tin plating, male solder contacts (sizes 20 and 16), and offers high EMI/RFI protection. Suitable for military, aerospace, and industrial use, it withstands extreme temperatures from -55°C to +125°C, with IP68 sealing against dust and fluids, shock and vibration resistance, and a current rating of 5A or 10A per contact. Available in various configurations with optional backshells and sealing accessories, ensuring reliable and secure connections in demanding applications.
AMPHENOL INDUSTRIAL PT02SE1210S industrial connector Specifications:
- Shell Material: Steel with tin plating
- Contact Material: Nickel alloy, tin plated solder pot termination
- Temperature Range: -55°C to +125°C
- Ingress Protection: IP68 (dust and water resistant)
- Shock Resistance: 100 G's
- Vibration Resistance: exceeds MIL-E-5272 Proc. II
- Current Rating: 5A (Size 20), 10A (Size 16)
- Dielectric Withstanding Voltage: 1500 Vrms (service 1), 2300 Vrms (service 2)
- Recommended Operating Voltage: 600 Vrms (service 1), 1000 Vrms (service 2)
- Insert Arrangement: 36 configurations (solder and PCB) including 20 and 16 pin options
- Cable Gland: Heatshrink moulded, compatible with cable diameters 5.5 mm to 13 mm
- Sealing: Elastomer gasket with optional O-rings for IP68 and hermetic versions
- Durability: 500 mating cycles
- Connector Size Range: 8 to 24 shell sizes
Buy the Buy Amphenol PT02SE1210S Part Number PT02SE1210S Online
Order the Amphenol PT02SE1210S connector online today to ensure secure, high-performance connections in harsh environments. Designed for aerospace, military, and industrial use, it features a durable steel shell with tin plating, ceramic insulators, and male solder contacts (sizes 20 and 16). With IP68 sealing, resistance to shocks and vibrations, and a wide temperature range from -55°C to +125°C, this connector guarantees reliable operation under extreme conditions. Compatible with various backshells and accessories, it provides flexibility for your demanding projects and ensures long-term durability and safety in critical applications.
Buy Amphenol PT02SE1210S now and experience unmatched reliability and performance in demanding industrial and military applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT02SE1210S?
You can click on the BUY or RFQ button to purchase PT02SE1210S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT02SE1210S?
You can download the PT02SE1210S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT02SE1210S?
AMPHENOL INDUSTRIAL
