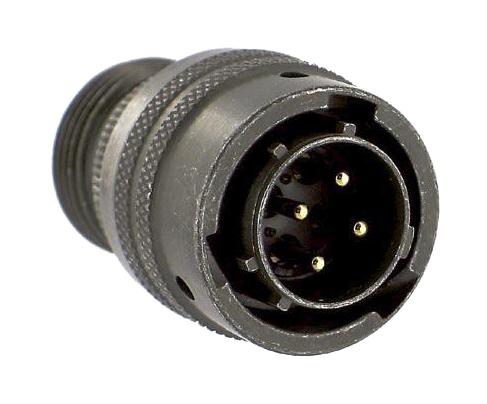

AMPHENOL INDUSTRIAL PT06A124P Miniature Cylindrical Connector
The PT06A124P is a miniature cylindrical connector with a straight plug configuration, designed for military and industrial applications. It features a bayonet coupling system with crimp contacts that are rear insertable and releasable, ensuring high reliability and secure connection. Constructed from aluminum with a cadmium plated finish, it offers excellent corrosion resistance. Suitable for general duty, environmental sealing with a grommet and clamp, and supports various insert arrangements with options for pin or socket contacts. Capable of operating at voltages up to 900 VAC at sea level, it provides versatile and durable electrical connectivity for rugged environments.
AMPHENOL INDUSTRIAL PT06A124P Miniature Cylindrical Connector Specifications:
- Shell Material: Aluminum with cadmium plated finish
- Operating Voltage: up to 900 VAC (RMS) at sea level
- Contact Rating: 75 A for power contacts, suitable for high-reliability applications
- Contact Size Options: 20, 16, 12 AWG with gold or other finish options
- Insert Configurations: Various arrangements for pin/socket contacts, including coaxial options
- Temperature Range: -55°C to +125°C
- Sealing: Grommet and clamp environment sealing for moisture resistance
- Shell Sizes: 6 to 24 with specific dimensions for each size
- Mounting: Flange mounting with dedicated gasket options, suitable for box or panel mounting
- Standards: Meets MIL-C-26482 Series 1 specifications, intermateable with other series connectors
Buy the Amphenol Series PT06 Miniature Connector: PT06A124P
Order the Amphenol Miniature Cylindrical Connector PT06A124P online today. Designed for rugged applications, it features bayonet coupling, crimp contacts, and environmental sealing. Constructed from durable aluminum with cadmium plating, it ensures long-lasting performance in demanding conditions. Suitable for general duty, environment resistant, and hermetic options, this connector supports a variety of insert arrangements for pin and socket contacts, including coaxial options. Perfect for military, aerospace, and industrial automation needs—order now for reliable connectivity.
Get Amphenol PT06A124P connector today—built for rugged military and industrial environments with high reliability and corrosion resistance.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT06A124P?
You can click on the BUY or RFQ button to purchase PT06A124P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT06A124P?
You can download the PT06A124P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT06A124P?
AMPHENOL INDUSTRIAL
