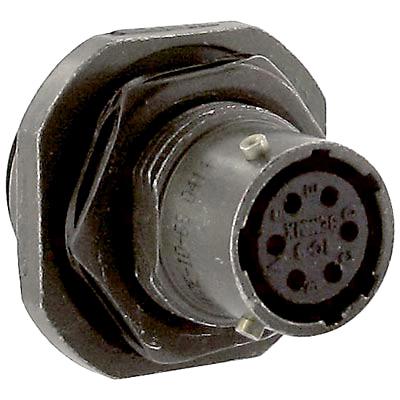

AMPHENOL INDUSTRIAL PT07E106S MIL-DTL-26482 Connector
The PT series offers a wide range of rugged, high-performance connectors compliant with MIL-DTL-26482 standards, suitable for aerospace, military, and industrial environments. They feature various shell types—including square flange, jam nut, and solder mounting—with options for sealing against dust, liquids, and harsh conditions (IP68 rated). Designed with corrosion-resistant materials, these connectors support multiple locking mechanisms, including bayonet and threaded rings, ensuring secure and reliable connections. Contact arrangements include power, signal, PCB, and wire wrap, with insulation resistance exceeding 25 GΩ. Suitable cable diameters range from 5.5 mm to 13 mm, with maximum voltage ratings up to 2300 Vrms, operating at temperatures from -55°C to +125°C, offering excellent resistance to vibration, shock, and environmental stresses.
AMPHENOL INDUSTRIAL PT07E106S MIL-DTL-26482 Connector Specifications:
- Shell Types: Square flange, jam nut, solder, hermetic, through bulkhead
- Material: Steel with tin plating, stainless steel, aluminum alloy, nickel or cadmium finishes
- Sealing: IP68 IP rating, hermetic versions with <10^-8 leak rate under 1 bar differential pressure
- Temperature Range: -55°C to +125°C
- Contact Ratings: 20 pin contact rated for 5A, 16 pin rated for 10A (max per contact)
- Electrical: Test voltage 1500 Vrms at sea level, dielectric withstanding voltage up to 2300 Vrms
- Contacts: Gold plated, removable for crimp or solder versions, available in PCB and wire wrap
- Cable Diameter Compatibility: 5.5 mm to 13 mm
- Vibration and Shock Resistance: exceeding MIL standards, with durability over 500 mating cycles
- Physical Dimensions: Shell sizes from 8 to 24 with specific mounting and dimensions per type
- Locking Mechanisms: Bayonet coupling, threaded locking rings, and screw threads for secure mating
- Environmental Resistance: Salt spray > 500 hours, humidity, thermal shock, and UV exposure
- Finish Options: Olive drab cadmium, black anodized, electroless nickel, or other special coatings
Buy the Amphenol PT – Reliable MIL-DTL-26482 Connectors for Industrial Applications
Order the reliable MIL-DTL-26482 PT series connectors online today. Designed for aerospace, military, and industrial environments, these connectors offer IP68 sealing, high electrical performance, and robust construction. Suitable for power, signal, PCB, and wire wrap applications, they support various mounting options and contact arrangements. With shell sizes from 8 to 24, multiple finishes, and environmental resistance, they ensure long-lasting durability and secure connections even in harsh conditions. Perfect for ensuring safety and performance in critical applications.
Get Amphenol PT series connectors today—built for high durability and secure connections in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT07E106S?
You can click on the BUY or RFQ button to purchase PT07E106S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT07E106S?
You can download the PT07E106S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT07E106S?
AMPHENOL INDUSTRIAL
