AMPHENOL INDUSTRIAL MB06TE1015PN575 Circular Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electrical equipment, offering a compact, lightweight footprint with high-density insert patterns. These rugged connectors provide excellent shell-to-shell EMI shielding and high reliability, making them suitable for industrial applications. Constructed with an aluminum shell and featuring a robust triple bayonet coupling (1/4 turn) mechanism along with stamped and formed contacts, they ensure durable performance. An internal EMI grounding spring enhances shell-to-shell conductivity. Available mounting options include in-line and two-hole flange configurations, supporting various installation needs. Ideal for automotive systems, factory automation, industrial, instrumentation, robotics, security, telecommunications, and test & measurement applications.
AMPHENOL INDUSTRIAL MB06TE1015PN575 Circular Connector Specifications:
- Shell Material: Aluminum
- Contact Plating: Tin/Gold Plated
- Ingress Protection: IP67 with cable gland, IP54 in mated condition with heat shrink
- Temperature Range: -40°C to 125°C
- Current Rating: 3A for #22D contact
- Test Voltage: AC 500V RMS
- Operating Voltage: AC 250V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: Max 22mΩ
- Mating Cycles: 500 cycles
- Vibration Resistance: In accordance with EIA-364-28D
- Salt Spray: Up to 500 hours with Gray ZnNi plating
- Shell Sizes: 08, 09, 10, with dimensions from 11.6mm to 17.2mm

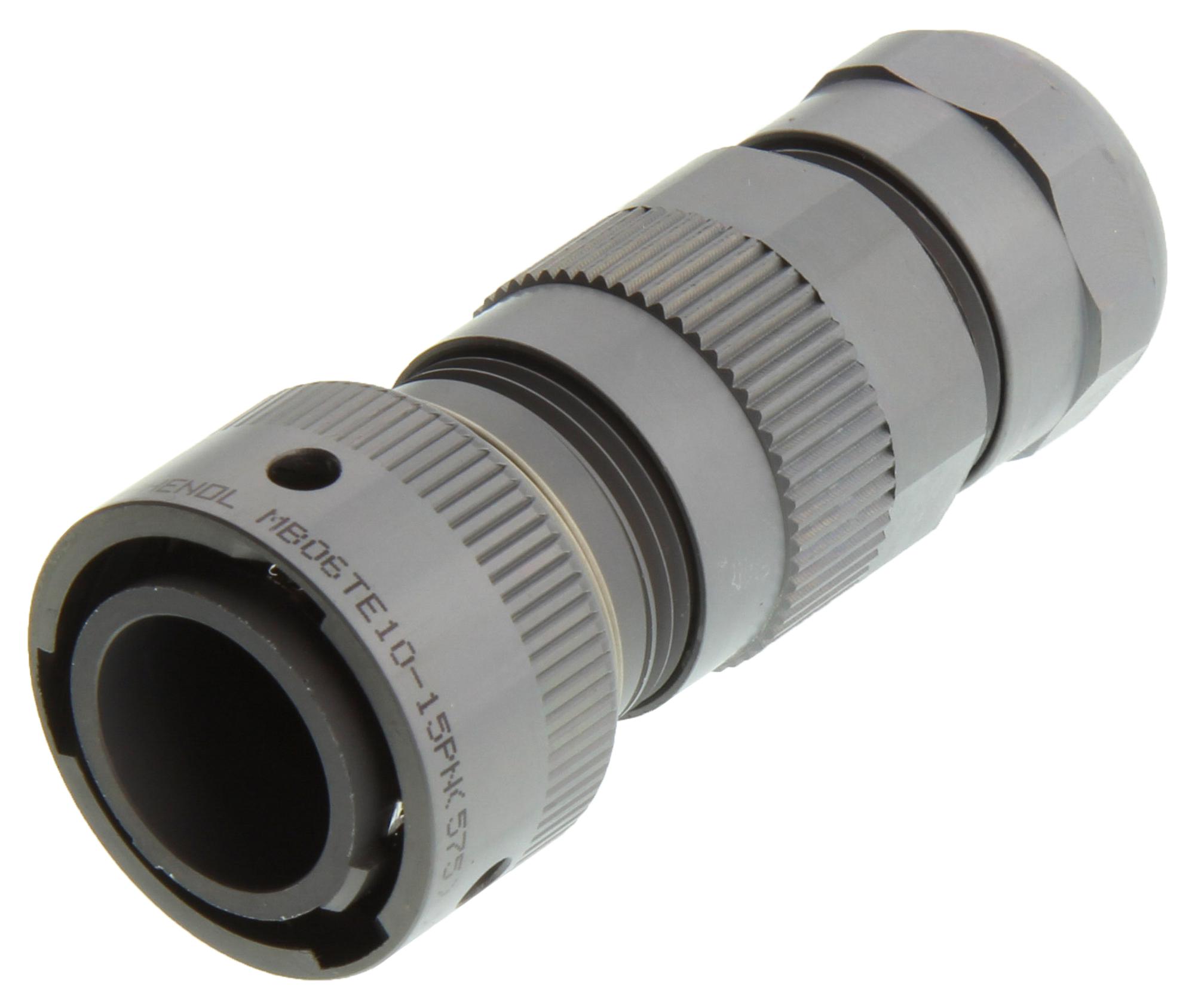

Buy the Buy Amphenol Micro-B Series Connector Part Number MB06TE1015PN575 Online
Discover the durable and compact Amphenol Micro-B Series Connector, perfect for industrial, automotive, and automation applications. Constructed with a lightweight aluminum shell and featuring a quick 1/4 turn bayonet coupling, these connectors deliver high reliability with up to 500 mating cycles. They provide excellent EMI shielding and resistance against salt spray, weather, and vibration. Easy to install with multiple mounting options like inline and flange configurations, these connectors meet industry standards for temperature, voltage, and current, ensuring optimal performance in harsh environments. Purchase online now for fast delivery and dependable performance.
Order your Amphenol Micro-B Series MB06TE1015PN575 connector today and ensure reliable, high-quality connections for industrial automation and harsh environments.
