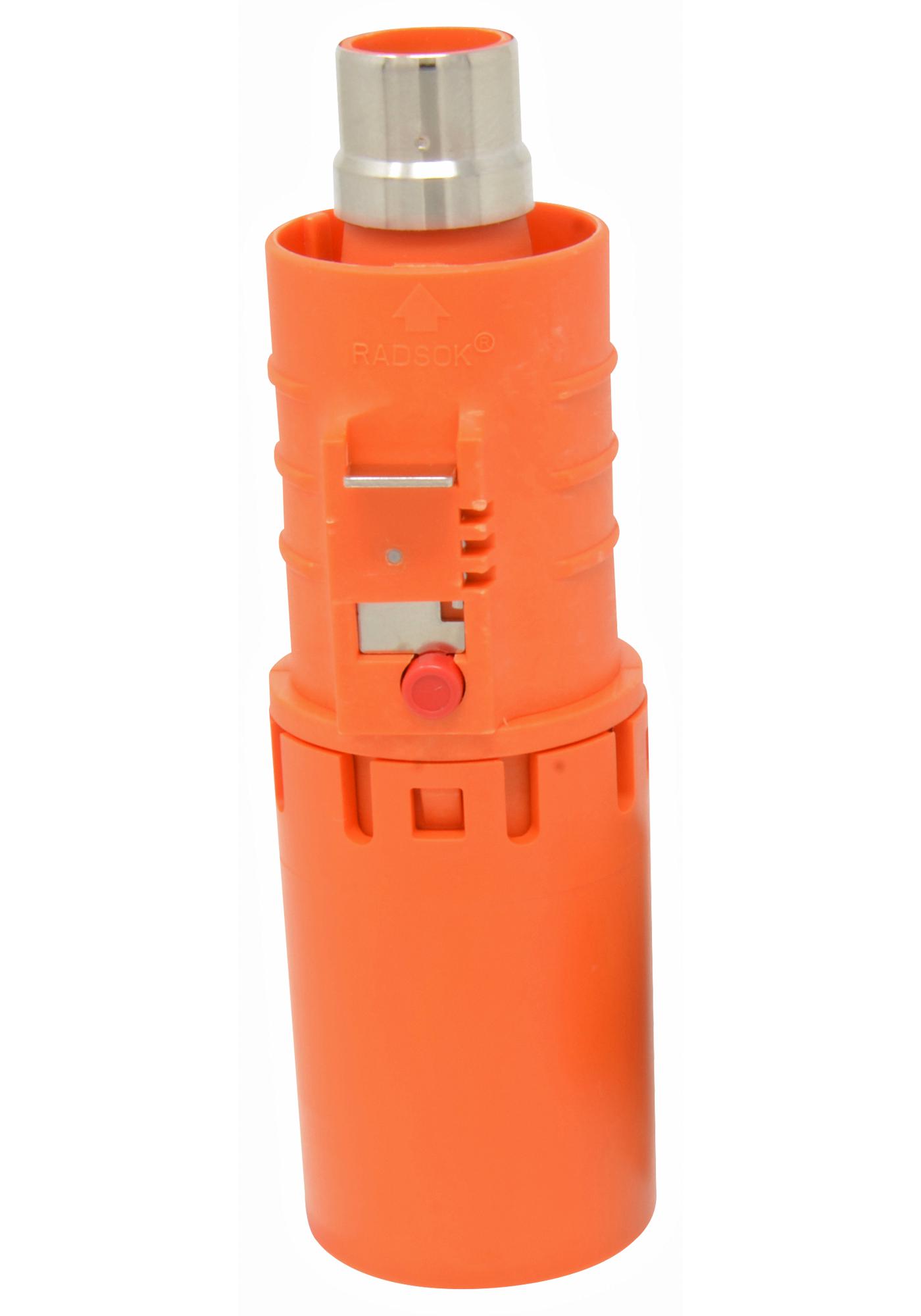

AMPHENOL INDUSTRIAL SLPIPB35BSO0EH Industrial Power Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable components featuring environmental sealing, secondary locking, quick lock, and press-to-release mechanisms. These compact connectors incorporate advanced R4 RADSOK® technology for quick mating and robustness. They are compatible with industry-standard crimp, screw, and busbar termination methods, eliminating the need for special torque tools. Designed for demanding applications like electric vehicles, energy storage, rail transit, process automation, medical equipment, and heavy machinery, these lugs come in various shell types and colors. They support contact sizes of 5.7mm (120A), 8mm (200A), and 10.3mm (350A), with a maximum current of 400A and voltage of 1000VAC/DC, meeting UL94 V-0 flammability standards. Options include EMI shielding, HVIL, IP67 sealing, and configurable keyway angles for proper mating. Operating temperatures range from -40°C to 125°C. Backshells are available for additional protection.
AMPHENOL INDUSTRIAL SLPIPB35BSO0EH Industrial Power Connector Specifications:
- Contact Sizes: 5.7mm (120A), 8mm (200A), 10.3mm (350A)
- Maximum Current: 400A
- Voltage Rating: 1000VAC/DC
- Temperature Range: -40°C to 125°C
- Flammability Standard: UL 94 V-0
- Sealing Options: IP67 sealed and non-sealed variants
- Compatible Termination Methods: Crimp, screw, busbar
- Material: Copper alloy with environmental sealing
- Termination: Press-to-release, secondary locking, quick lock
- Connector Types: Right angle and straight configurations
- Shielding Options: EMI, HVIL
- Keyway Angle: Configurable between 60° and 270°
- Wire Compatibility: Up to 95mm² wire gauge
- Protection: Backshells for additional durability
Buy the Amphenol SLPIPB35BSO0EH – Reliable Compression Lugs for Industrial Applications
Purchase the Amphenol Industrial power connectors online today to benefit from high-performance, environmentally sealed compression lugs. These connectors feature quick-lock mechanisms, secondary locking, and are compatible with crimp, screw, and busbar terminations for versatile applications. Available in multiple sizes supporting up to 400A current and 1000VAC/DC voltage ratings, they are suitable for energy storage, electric vehicles, rail transit, automation, and heavy machinery. With optional EMI shielding, IP67 sealing, and customizable keyway angles, these connectors meet UL94 V-0 flammability standards and operate reliably between -40°C and 125°C. Backshells enhance durability. Buy now for quality and efficiency.
Get Amphenol SLPIPB35BSO0EH today—designed for high reliability, environmental sealing, and easy installation in demanding industrial environments.
