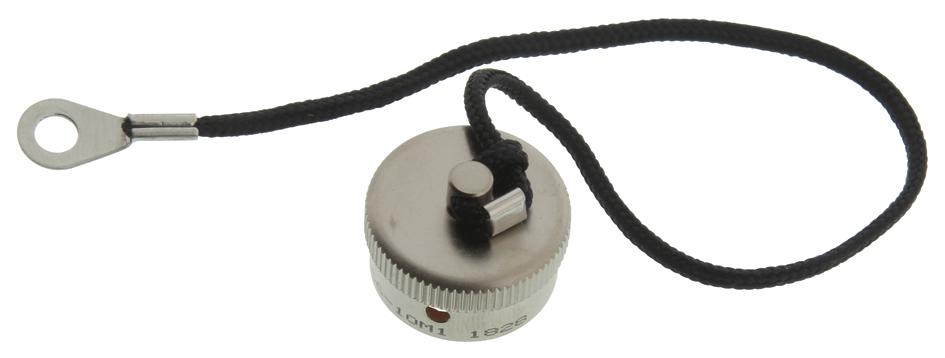

AMPHENOL INDUSTRIAL C1073866610M1 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electrical equipment requiring a compact, lightweight, and high-density connector. They offer excellent EMI shielding through shell-to-shell electrical bonding, ensuring high reliability and durability. Developed for industrial applications, these rugged connectors support high mating cycles and feature a triple bayonet coupling mechanism with a 1/4 turn for secure attachment. Made from an aluminum shell, they include stamped and formed contacts and an internal EMI grounding spring for optimal conductivity. Multiple mounting options are available, including in-line and two-hole flange mounts. Suitable for automotive, automation, industrial, instrumentation, robotics, security, telecommunications, and test & measurement applications.
AMPHENOL INDUSTRIAL C1073866610M1 Micro-B Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless Steel
- Wave Ring: Stainless Steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with Heat Shrink, IP67 with cable gland backshell
- Test Current: 3A for #22D contact
- Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 500V, 1000MΩ Min
- Contact Resistance: 22mΩ Max
- Mating Cycles: 500 Cycles with gold-plated contacts
- Vibration: Conforms to EIA-364-28D
- Salt Spray Resistance: Up to 500 hours with Gray Zinc Nickel plating
- Operating Temperature: -40°C to 125°C
Buy the Buy Amphenol Micro-B Connector Part Number C1073866610M1 Online
Explore the high-performance, durable Micro-B Connector from Amphenol, designed for industrial, automotive, robotics, and telecommunications applications. Its compact, lightweight aluminum shell provides high strength and excellent EMI shielding, supporting up to 500 mating cycles in tough environments. With IP67 ingress protection when used with the cable gland, it ensures reliable operation in harsh conditions. Featuring multiple mounting options, high density insert patterns, and a triple bayonet coupling with a 1/4 turn for quick mating, this connector offers superior reliability and ease of installation for modern electrical systems. Purchase online now for fast delivery and trusted quality.
Order your Amphenol Series Micro-B connector C1073866610M1 today and enhance your industrial automation and high-reliability connection needs.
