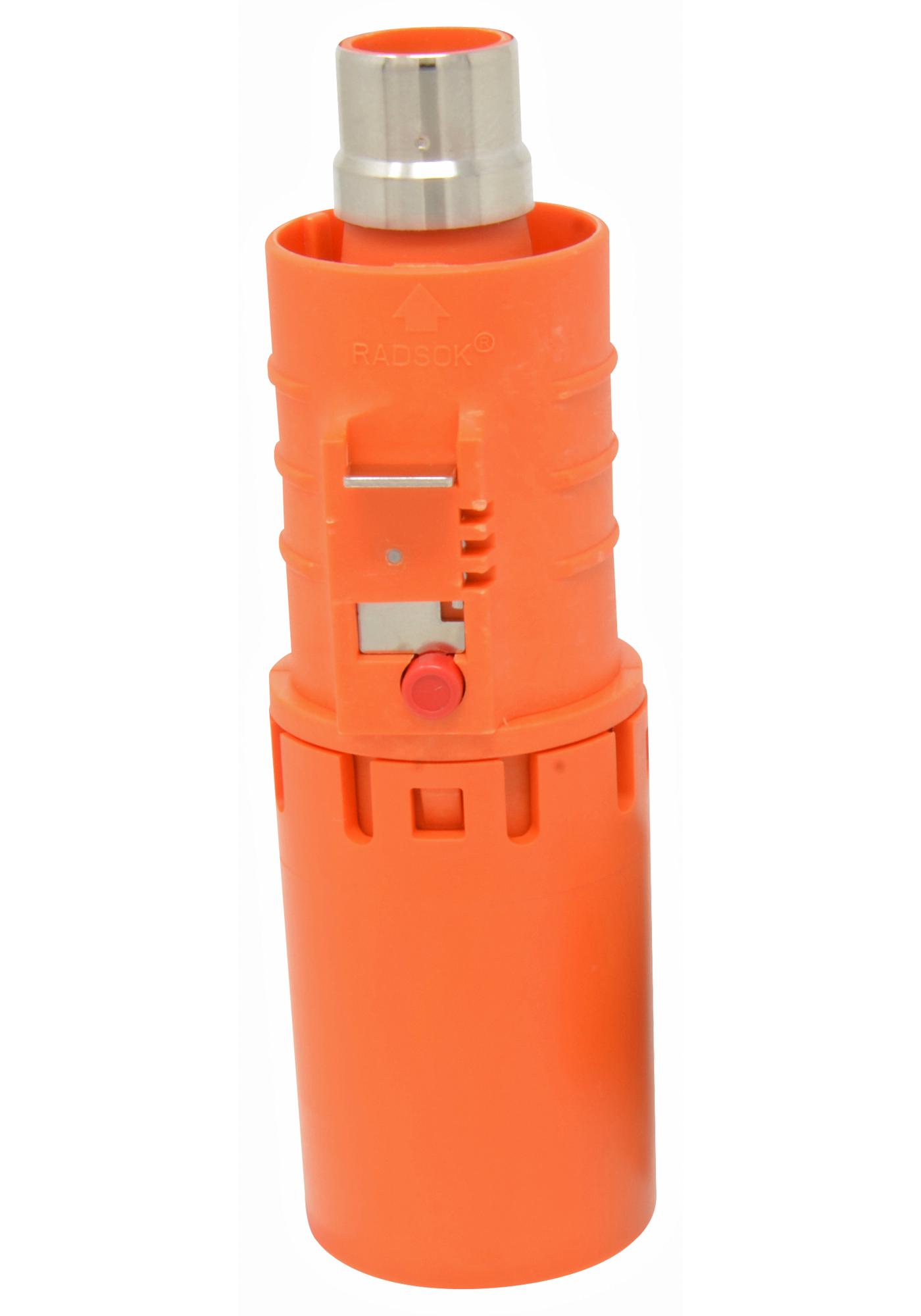

AMPHENOL INDUSTRIAL SLPIPB50BSO1EH Electrical Lug
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable connectors designed for secure electrical connections in demanding environments. Featuring an environmentally sealed design, these lugs utilize the latest R4 RADSOK® high amperage contact technology for robust performance. They support multiple termination methods including crimping, screw, and busbar. Suitable for EVs, energy storage, rail transit, and heavy machinery, they come in different sizes, shell types, and colors, with optional EMI shielding, HVIL, and IP67 sealing. Operating temperatures range from -40°C to 125°C, supporting up to 400A and 1000VAC/DC.
AMPHENOL INDUSTRIAL SLPIPB50BSO1EH Electrical Lug Specifications:
- Contact sizes: 5.7mm (120A), 8mm (200A), 10.3mm (350A)
- Maximum current: 400A
- Voltage ratings: up to 1000VAC/DC
- Sealing: IP67 environment-proof
- Operating temperature: -40°C to 125°C
- Materials: Copper, UL 94 V-0 flammability rating
- Connection types: Crimp, screw, busbar
- Color options: Orange, black, red
- Features: Secondary locking, quick-lock, press-to-release, EMI shielding, HVIL
- Backshell options: Available, including grommet and panel mount
- Connector sizes: Support wire gauges up to 95mm²
Buy the Buy Amphenol SurLok Plus Compression Lug Part Number SLPIPB50BSO1EH Online
Upgrade your electrical connections with the high-quality SurLok Plus™ compression lug from Amphenol. Designed for reliability and ease of installation, these environmentally sealed connectors support up to 400A and are suitable for demanding applications such as electric vehicles, energy storage, rail transit, and heavy machinery. Features include secondary locking, quick-lock, press-to-release mechanisms, and optional EMI shielding and HVIL functions. Support for multiple termination methods and support for wire gauges up to 95mm² make these lugs versatile and durable for industrial use. Buy online today to ensure your project benefits from superior performance and protection.
Order your Amphenol Series SurLok Plus SLPIPB50BSO1EH compression lug today and ensure secure, sealed electrical connections for industrial, EV, and transit projects.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPIPB50BSO1EH?
You can click on the BUY or RFQ button to purchase SLPIPB50BSO1EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPIPB50BSO1EH?
You can download the SLPIPB50BSO1EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPIPB50BSO1EH?
AMPHENOL INDUSTRIAL
