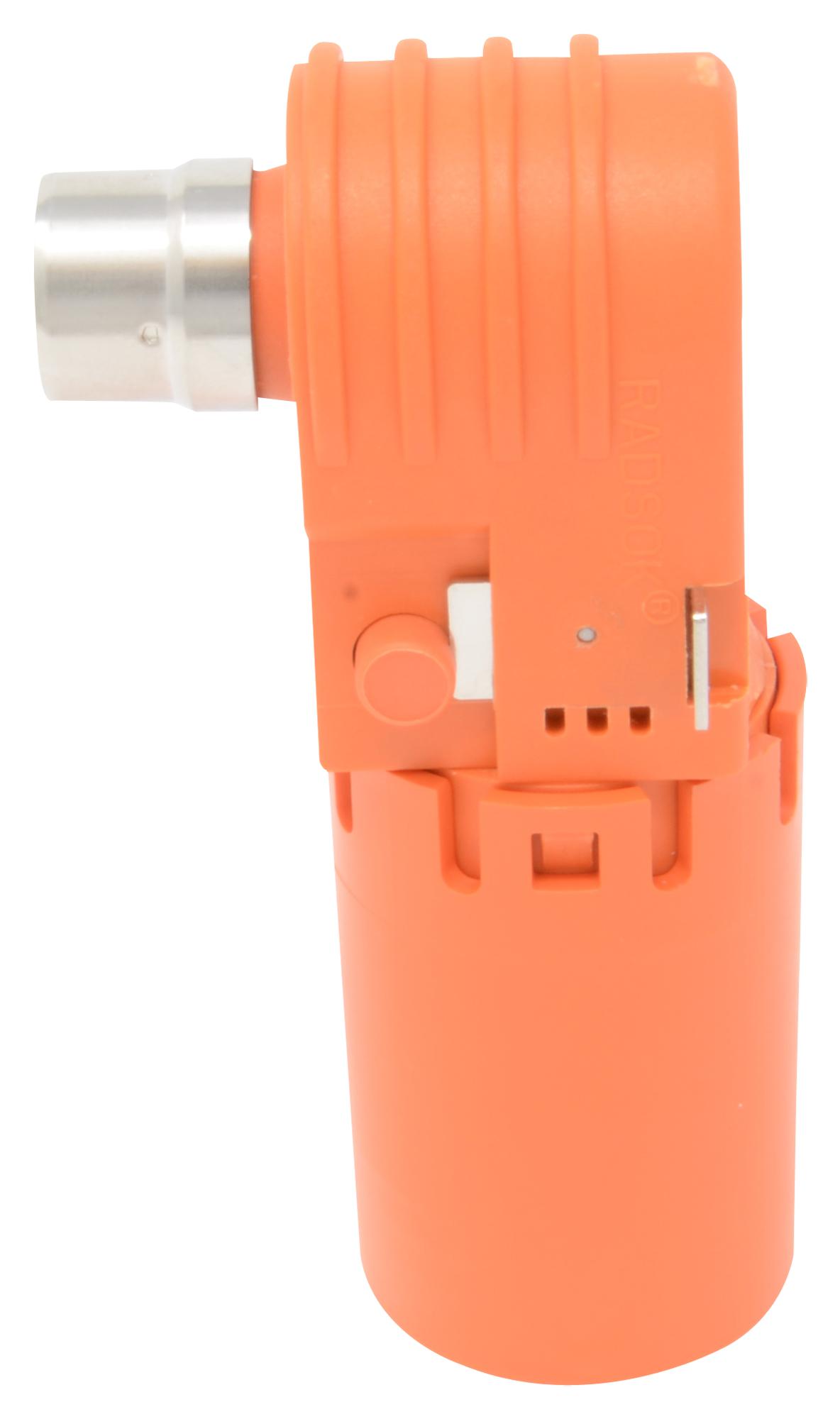

AMPHENOL INDUSTRIAL SLPPB35BSO1EH Electrical Compression Lug
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, environmentally sealed, field-installable lugs designed for secure electrical connections. They feature a secondary locking system, quick lock, and press-to-release design for ease of installation. These compact, robust connectors incorporate the latest RADSOK® technology, allowing quick mating without the need for special torque tools, thanks to industry-standard crimp, screw, and busbar termination options. Suitable for electric vehicle systems, battery management, energy storage, rail, automation, heavy equipment, and medical devices, they offer various shell types and contact sizes up to 10.3mm (350A), with IP67 sealing, EMI shielding, HVIL, and temperature ratings from -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPPB35BSO1EH Electrical Compression Lug Specifications:
- Flammability: UL 94 V-0
- Contact Material: Copper alloy
- Contact Size: 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temp: -40°C to 125°C
- Sealing: IP 67
- Features: EMI shielding, HVIL, touch proof, secondary locking, quick lock, press-to-release
- Shell Types: Right angle, straight plug, straight receptacle
- Color Options: Orange, black, red
- Keyway Angles: 60°, 90°, 120°, 150°, 180°, 270°
- Wire Range: Up to 95mm²
- Standards: UL 94 V-0 flammability
Buy the Amphenol SLPPB35BSO1EH – Reliable Industrial Compression Lugs for Heavy Equipment
Order the Amphenol SurLok Plus electrical compression lug online today for secure, reliable, and environmentally sealed connections suitable for industrial, energy, rail, and automation applications. These connectors feature quick installation, ISP sealing, EMI shielding, and contact ratings up to 350A. Designed with innovative RADSOK® technology, they support wires up to 95mm² and operate across a temperature range of -40°C to 125°C. Suitable for various shell types and keyway configurations, they ensure safety, durability, and ease of use for professionals seeking high performance and quick installation in demanding settings.
Get Amphenol SLPPB35BSO1EH today—built for secure and durable electrical connections in industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB35BSO1EH?
You can click on the BUY or RFQ button to purchase SLPPB35BSO1EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB35BSO1EH?
You can download the SLPPB35BSO1EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB35BSO1EH?
AMPHENOL INDUSTRIAL
