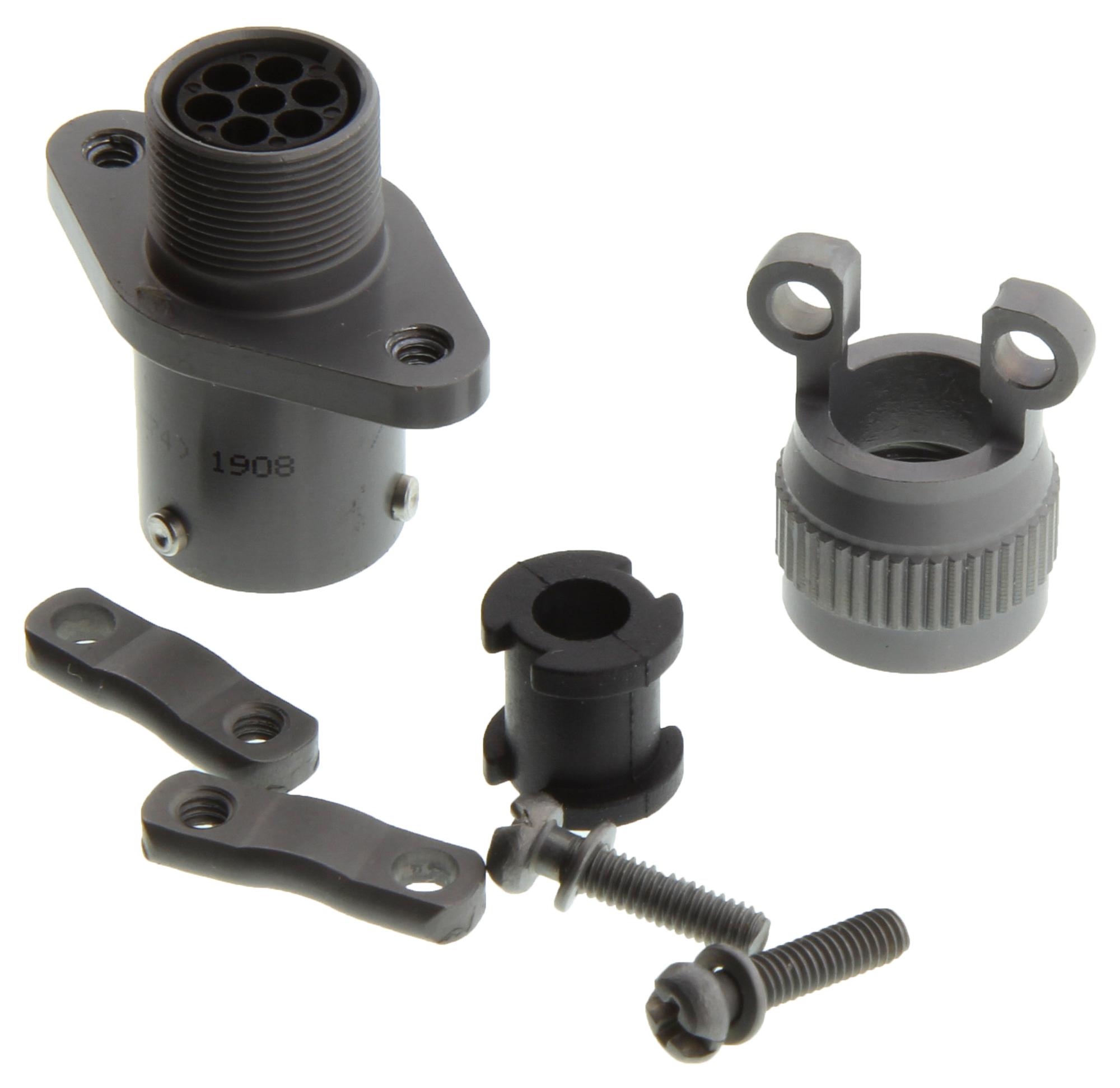

AMPHENOL INDUSTRIAL MB03TA0807PN574 Micro-B Series Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electrical equipment that requires a compact, lightweight connector with high-density insert patterns, excellent shell-to-shell EMI shielding, and reliable performance. Made from durable aluminum with a triple bayonet coupling mechanism (quarter-turn), these connectors ensure high mating cycles and strong electrical grounding. They feature stamped and formed contacts and offer versatile mounting options, including inline and two-hole flange mounts. This series is suitable for various applications such as automotive systems, factory automation, industrial equipment, instrumentation, robotics, security systems, telecommunications, and test & measurement environments.
AMPHENOL INDUSTRIAL MB03TA0807PN574 Micro-B Series Connector Specifications:
- Shell Material: Aluminum
- Retaining Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 with cable gland, IP54 with heat shrink
- Test Current: 3A for #22D contact
- Recommended Voltage: AC 250V
- Test Voltage: AC 500V
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: 22 mΩ Max
- Mating Cycles: 500
- Vibration: Standard test procedures
- Salt Spray Resistance: Up to 500 hours with Gray ZnNi finish
- Compliance: RoHS
Buy the Buy Amphenol Micro-B Connector Part Number MB03TA0807PN574 Online
Order the Amphenol Micro-B Series Connector MB03TA0807PN574 online today and enjoy quick, hassle-free delivery. Designed for rugged industrial, automotive, and electronics applications, these compact connectors feature high-density insert patterns, superior EMI shielding, and a durable aluminum shell with a triple bayonet coupling for fast and secure mating. Versatile mounting options include inline and flange configurations, making them ideal for robotics, factory automation, security, and telecommunications. Trust Amphenol’s proven quality for your critical connectivity needs.
Buy Amphenol Micro-B connector MB03TA0807PN574 now and experience unmatched reliability and performance in demanding industrial and automotive environments.
