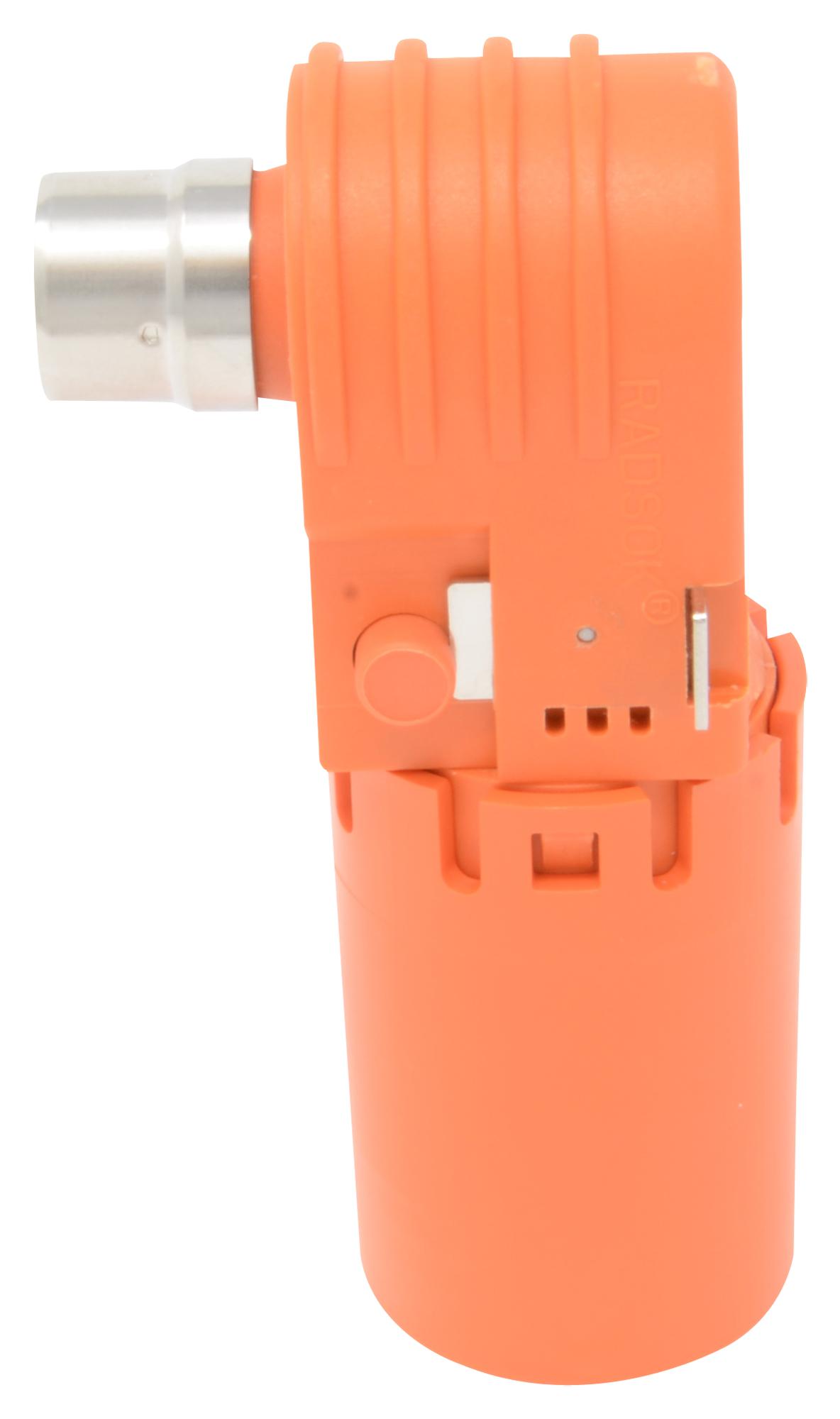

AMPHENOL INDUSTRIAL SLPPB35BSO4EH Electrical Power Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, environmentally sealed, field-installable connectors designed for secure electrical terminations. They feature a secondary locking system, quick lock, and press-to-release mechanism for ease of installation. Incorporating the latest R4 RADSOK® technology, these compact connectors support quick mating and are suitable for demanding applications such as electric vehicle (EV/HEV), battery management systems (BMS), energy storage, rail transitions, process control, automation, medical equipment, and heavy machinery. Available in various shell types including right-angle and straight configurations, and in multiple connector colors such as orange, black, and red. Contact sizes range from 5.7mm (120A) to 10.3mm (350A), with maximum current ratings of 400A and voltage ratings up to 1000VAC/DC, supporting wire gauges up to 95mm². They offer optional EMI shielding, HVIL functions, touch-proof, IP67 sealing options, and come with or without backshells. Keyway designs prevent incorrect mating at angles of 60°, 90°, 120°, 150°, 180°, or 270°. These connectors meet UL94 V-0 flammability standards and operate within a temperature range of -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPPB35BSO4EH Electrical Power Connector Specifications:
- Contact Size: 8.0mm (200A)
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temp: -40°C to 125°C
- Protection: IP67
- Flammability: UL 94 V-0
- Size options: 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
- Connector types: Right-angle and straight plugs
- Locking: Spring Locking, HVIL functions
- Design: Multi-color options including orange, black, red
- Sealing: Environmentally sealed, optional EMI shielding
- Backshells: Available with or without
- Keyway: Prevents incorrect mating at specified angles
- Temperature Range: -40°C to 125°C
Buy the Amphenol Series SurLok Plus EMI Connectors: SLPPB35BSO4EH
Purchase the Amphenol SurLok Plus electrical power connector online today and ensure reliable, safe connections for your industrial automation, EV charging, or heavy machinery projects. With high current capacity up to 400A, voltage support up to 1000VAC/DC, and IP67 sealing for harsh environments, these connectors guarantee performance and durability. Easy to install, featuring locking mechanisms and optional EMI shielding, they are ideal for critical applications in energy storage, process control, and transportation sectors. Order now to benefit from fast delivery and expert support.
Buy Amphenol SurLok Plus EMI Connectors now and experience unmatched reliability and high-current performance for your demanding electrical systems.
