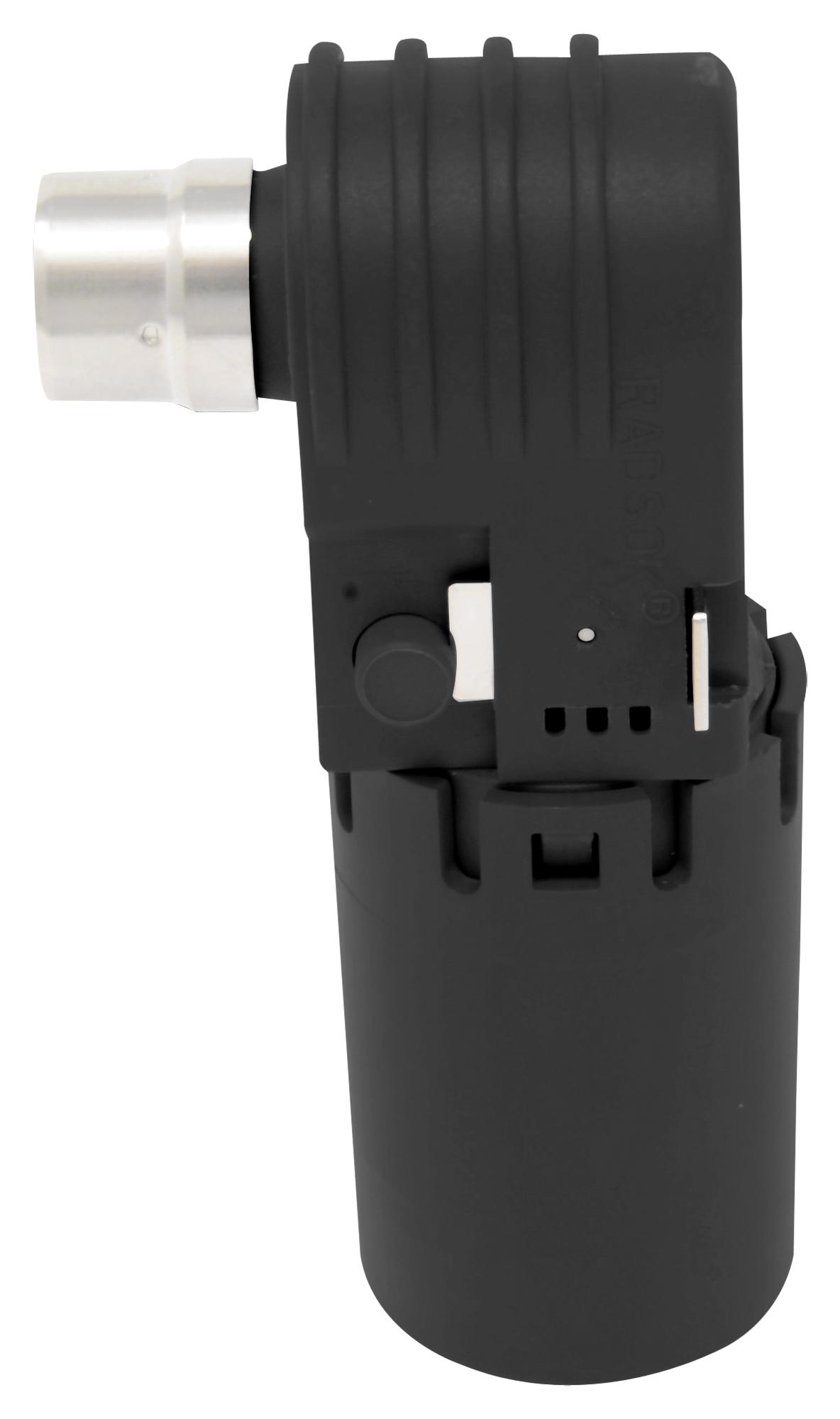

AMPHENOL INDUSTRIAL SLPPB70BSB3EH high-current electrical connector
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable connectors designed for various electrical applications. These environmentally sealed lugs feature a compact design with quick-mate and press-to-release functionality, incorporating the latest R4 RADSOK® technology for robust performance. They support industry-standard crimp, screw, and busbar termination methods, eliminating the need for special tools. Suitable for electric vehicle, energy storage, rail transit, automation, medical, and heavy equipment industries, these connectors come in various configurations and contact sizes, offering high current capacity, EMI shielding, and IP67 sealing for dependable, safe connections.
AMPHENOL INDUSTRIAL SLPPB70BSB3EH high-current electrical connector Specifications:
- Maximum Current: 400A
- Operating Voltage: 1000V AC/DC
- Temperature Range: -40°C to 125°C
- Contact Size: 5.7mm (120A), 8mm (200A), 10.3mm (350A)
- Connector Types: Right-angle, straight, with or without backshell
- Sealing: IP67, sealed and non-sealed options
- Material: Dielectric and conductive materials meeting UL94 V-0 flammability
- Features: EMI shielding, HVIL, quick-mate, press-to-release, keyway options (60°, 90°, 120°, 150°, 180°, 270°)
- Wire Gauge: Up to 95mm²
- Durability: Robust construction for industrial applications
Buy the Amphenol Series SurLok Plus High Amperage Connectors: SLPPB70BSB3EH
Order the Amphenol SurLok Plus high-current electrical connectors online today for a dependable, environmentally sealed solution designed for industrial and transportation applications. These connectors feature quick-mate and press-to-release functions, supporting current ratings up to 400A and operating voltages of 1000VAC/DC. Suitable for EV, energy storage, rail transit, medical, and automation projects, they ensure safe, EMI-shielded connections with IP67 sealing. Available with various contact sizes, keyway orientations, and configurations to meet your specific needs. Experience fast, secure online purchasing of high-quality Amphenol connectors.
Get Amphenol SurLok Plus high-current connectors today—built for durability, quick installation, and reliable electrical performance in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB70BSB3EH?
You can click on the BUY or RFQ button to purchase SLPPB70BSB3EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB70BSB3EH?
You can download the SLPPB70BSB3EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB70BSB3EH?
AMPHENOL INDUSTRIAL
