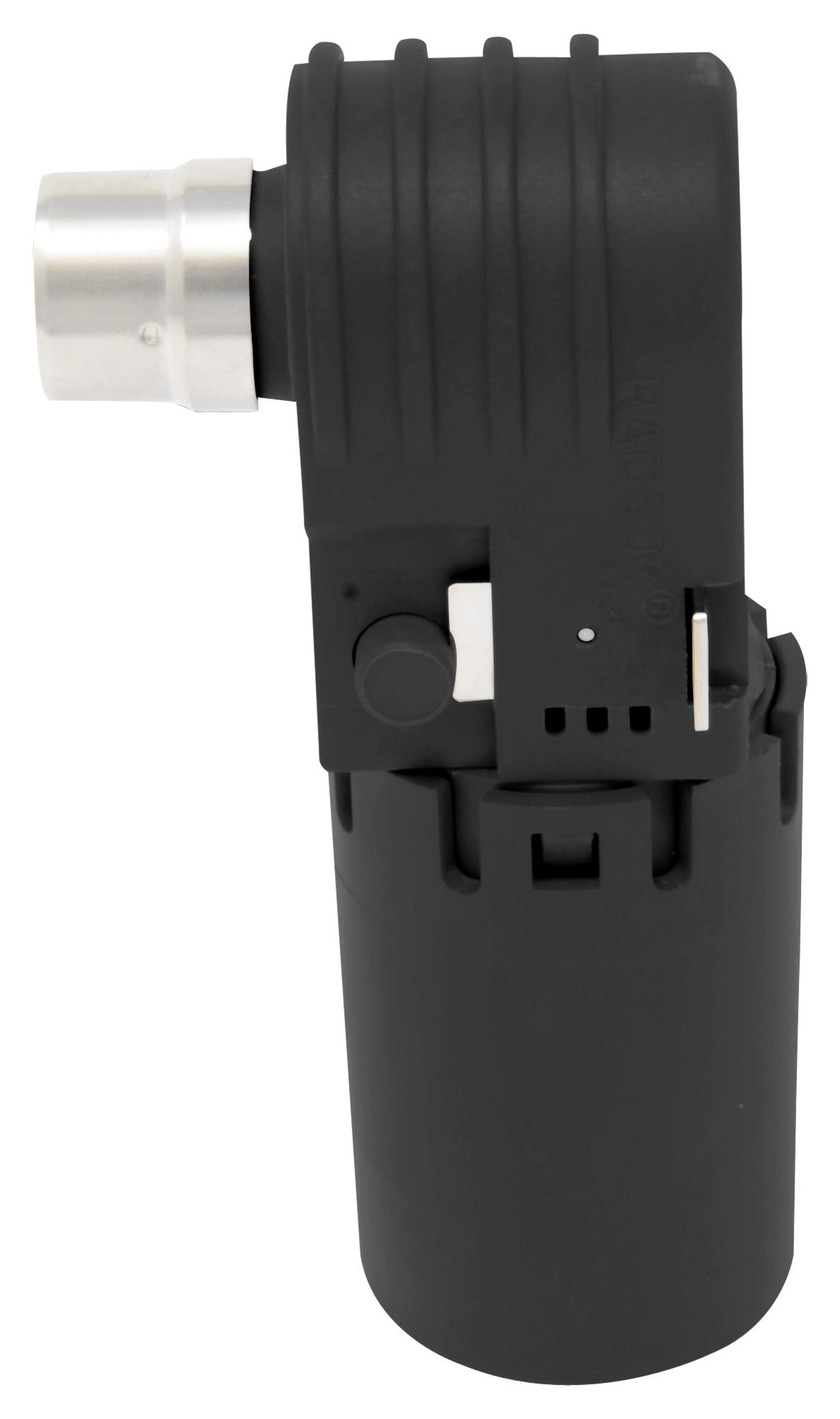

AMPHENOL INDUSTRIAL SLPPB70BSB4EH Power Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable connection accessories designed for industrial power systems. These environmentally sealed lugs feature a secondary locking system, quick lock, and press-to-release mechanism, ensuring easy installation and secure connections. Utilizing advanced R4 RADSOK® technology, the lugs are compact, durable, and support industry-standard crimp, screw, and busbar terminations, eliminating the need for specialized tools. They are suitable for electric vehicles, BMS, energy storage, rail transit, automation, medical equipment, and heavy machinery, supporting current up to 400A and voltage up to 1000VAC/DC with an IP67 rating and UL94 V-0 flammability compliance.
AMPHENOL INDUSTRIAL SLPPB70BSB4EH Power Connector Specifications:
- Contact Sizes: 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Temperature Range: -40°C to 125°C
- IP Rating: IP67 sealing
- Flammability: UL 94 V-0
- Features: Secondary locking, quick lock, press-to-release, optional EMI shielding, HVIL functions
- Connector Type: Right-angle and straight plugs or receptacles
- Color Options: Orange, black, red
- Termination Methods: Crimp, screw, busbar
- Wire Gauge Support: Up to 95mm²
- Locking Options: Spring locking, keyway designs (60°, 90°, 120°, 150°, 180°, 270°)
- Backshell Compatibility: With or without backshell
Buy the Amphenol SLPPB70BSB4EH – Reliable Power Connectors for Industrial Applications
Purchase the Amphenol SurLok Plus™ power connector lugs online to benefit from quick, secure, and environmentally sealed connections designed for industrial automation, energy storage, and heavy machinery. These high-current, IP67-rated connectors support industry-standard terminations and feature easy press-to-release operation, secondary locking, and optional EMI shielding. With a temperature range of -40°C to 125°C and flammability compliance UL94 V-0, they ensure safety and durability in demanding environments. Order now for reliable, high-performance electrical connections that streamline your installation process and improve system reliability.
Order your Amphenol SeriesSLPPB70BSB4EH high current power lug today and ensure secure, efficient, and reliable connections for your industrial projects.
