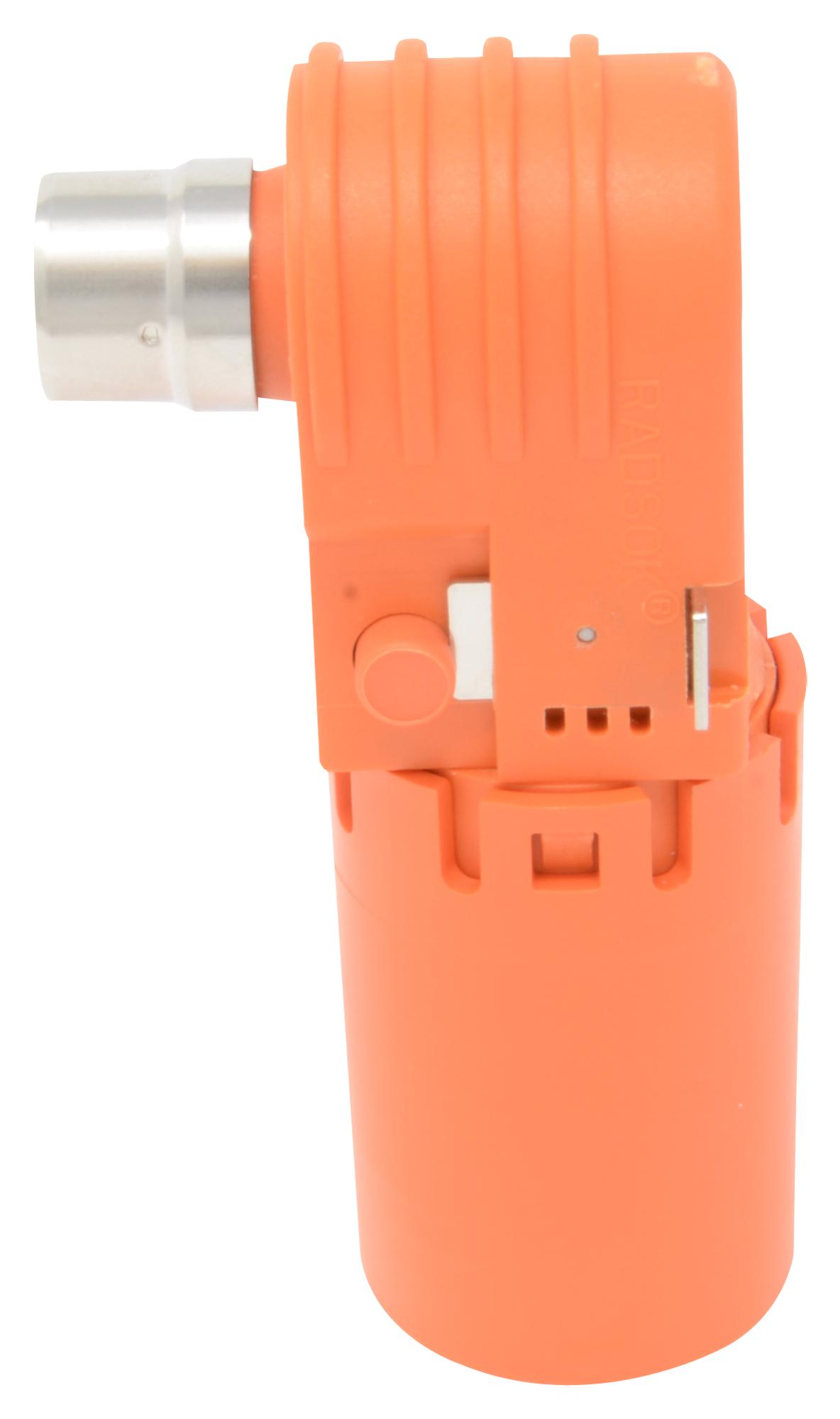

AMPHENOL INDUSTRIAL SLPPB70BSO2EH Industrial Connector Lugs
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, environmentally sealed, field-installable connectors designed for robust electrical connections. These compact lugs feature a secondary locking system, quick-lock, and press-to-release mechanisms, utilizing the latest R4 RADSOK® technology for efficient and secure mating. They are compatible with industry-standard crimp, screw, and busbar terminations, eliminating the need for specialized tools. Suitable for electric vehicles, energy storage, rail transit, automation, medical equipment, and heavy machinery, supporting up to 400A current and 1000VAC/DC voltage.
AMPHENOL INDUSTRIAL SLPPB70BSO2EH Industrial Connector Lugs Specifications:
- Flammability: UL 94 V-0
- Current Ratings: 120A (5.7mm), 200A (8mm), 350A (10.3mm), up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temperature Range: -40°C to 125°C
- Contact Sizes: 5.7mm, 8.0mm, 10.3mm
- Protection: IP 67 environmental seal
- Locking Mechanism: Spring locking with secondary lock
- Connector Types: Right angle, straight plug, straight receptacle
- Connections: Crimp, screw, busbar
- Color Options: Orange, black, red
- Features: EMI shielding, HVIL functions, quick-lock, press-to-release
- Wire Compatibility: Up to 95mm² gauge
- Design: Keyway angles 60°, 90°, 120°, 150°, 180°, 270°
- Temperature Range: -40°C to 125°C
Buy the Amphenol SLPPB70BSO2EH – Reliable Industrial Connectors for Heavy Equipment
Purchase Amphenol SurLok Plus connector lugs online today to ensure secure, reliable electrical connections for industrial automation, transportation, and energy storage systems. Designed for easy installation, these environmentally sealed, high-current lugs support up to 400A and 1000VAC/DC ratings. Their versatile configurations include various shell types, locking mechanisms, and colors, ensuring compatibility across multiple industrial sectors. Don't miss out—buy online now for fast delivery and quality assured components that meet UL94 V-0 flammability standards for safety and durability in demanding environments.
Get Amphenol SurLok Plus connector lugs today—built for precision, environmental sealing, and heavy-duty industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB70BSO2EH?
You can click on the BUY or RFQ button to purchase SLPPB70BSO2EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB70BSO2EH?
You can download the SLPPB70BSO2EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB70BSO2EH?
AMPHENOL INDUSTRIAL
