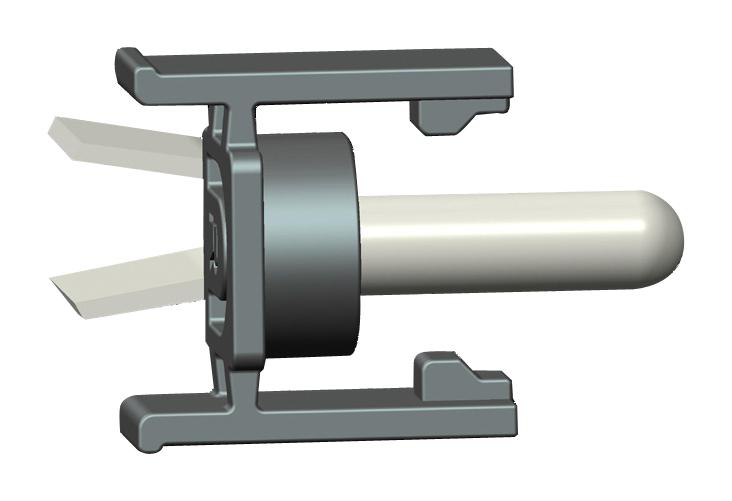

AMPHENOL INDUSTRIAL WTB036PR174000 Wire-to-Board Power Connector
The PowerBlok WTB wire-to-board connector from Amphenol features RADSOK contact technology, offering high current capacity up to 70A, with a low-profile footprint for printed circuit boards. Designed for impact resistance and durability, it supports wire gauges 12-14 AWG and withstands voltages up to 500V DC. Ideal for data communication, power supplies, and telecom applications, it is UL94 V-0 rated, RoHS, and REACH compliant, making it suitable for demanding industrial environments with temperature ranges from -40°C to +105°C.
AMPHENOL INDUSTRIAL WTB036PR174000 Wire-to-Board Power Connector Specifications:
- RADSOK contact size 2.4mm or 3.6mm
- Rated current 35-70A
- Rated voltage 500V DC
- Wire gauge 12-14 AWG (power), 6-8 AWG (heavier gauge options)
- Insulation resistance 5000MQ (Min) at 500V DC
- Durability 4100 mating cycles minimum
- Engagement force 5.0 Ibf max
- Extraction force 0.5 Ibf min
- Temperature range -40°C to +105°C
- UL94 V-0 black rated, RoHS and REACH compliant
- Waterproof rating not specified
- Suitable for impact, vibration, and harsh environments
- Impact footprint on PCB minimal, impact-resistant design
Buy the Amphenol Series PowerBlok WTB: WTB036PR174000
Enhance your electrical systems with the reliable PowerBlok wire-to-board connector by Amphenol, featuring RADSOK contact technology capable of handling up to 70A. Its low-profile design ensures minimal impact footprint on PCB, making it ideal for power supplies, data communication, and telecom applications. Built to withstand harsh environments, it offers over 4100 mating cycles, with a temperature range from -40°C to +105°C, UL94 V-0 rating, RoHS and REACH compliance, ensuring safety and durability for demanding industrial settings.
Order your Amphenol Series PowerBlok WTB wire-to-board connector today and ensure reliable, high-current connections for your industrial or telecom projects.
