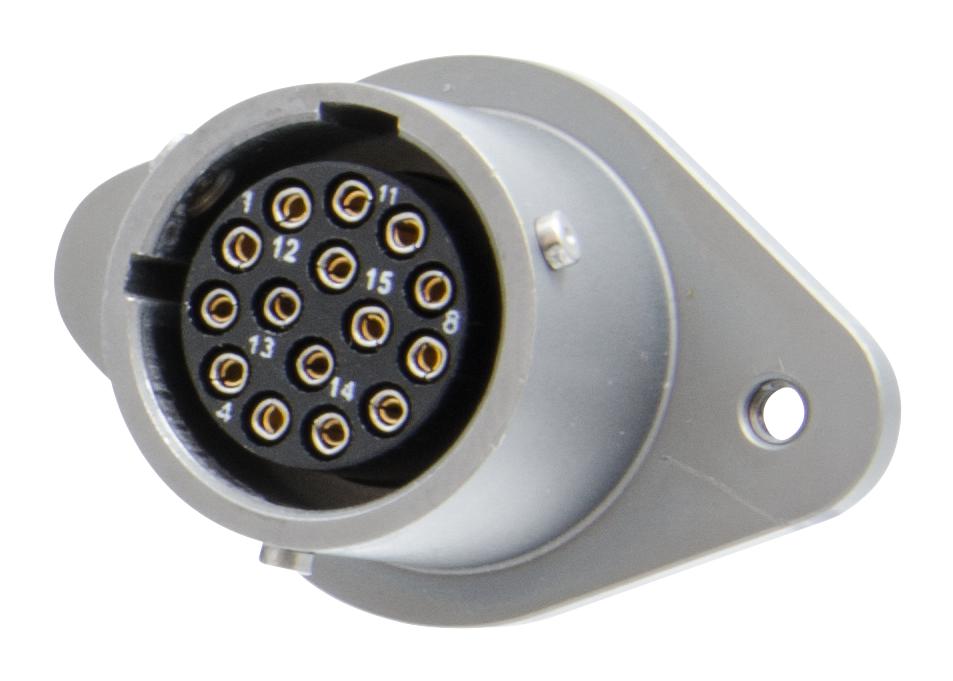

AMPHENOL INDUSTRIAL MB03TA1015SN574 Micro-B Connector
Amphenol's Micro-B Series Connectors are compact, lightweight, and rugged connectors ideal for industrial, automotive, and automation applications. Made from aluminum with a triple bayonet coupling and stamped contacts, they ensure reliable electrical connections and high EMI shielding. Features include multiple mounting options, high durability for numerous mating cycles, and corrosion resistance with Gray ZnNi plating. Suitable for environments requiring high shock and vibration resistance, these connectors support high-density insert arrangements, offering dependable shell-to-shell electrical bonding and excellent performance in harsh conditions, all at an affordable price point.
AMPHENOL INDUSTRIAL MB03TA1015SN574 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with heat shrink, IP67 with cable gland backshell
- Contact Size: 22D
- Wave Ring Material: Stainless Steel
- VCric wall thickness: 1.5 mm
- Number of Mating Cycles: 500
- Test Current: 3A
- Recommended Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ @ 500V
- Contact Resistance: Max 22 mΩ
- Vibration, Thermal Shock, Salt Spray Resistance: Conforms to IEC standards
- Dimensions vary by insert arrangement and shell size
- Mounting Options: Inline, 2-hole flange
Buy the Amphenol MB03TA1015SN574 – Reliable Micro-B for Industrial Applications
Order Amphenol Micro-B connectors online today to ensure high-performance, compact, and durable connectivity for industrial automation, robotics, and testing environments. Designed for high shock and vibration resistance, these connectors provide excellent EMI shielding, reliable electrical bonding, and multiple mounting options. Perfect for demanding industrial, automotive, and security applications, they support up to 500 mating cycles and meet RoHS requirements. Purchase now to benefit from fast delivery, trusted quality, and competitive pricing for your critical electrical connections.
Buy Amphenol Micro-B connectors now and experience high durability, easy coupling, and reliable performance in industrial automation and harsh environments.
