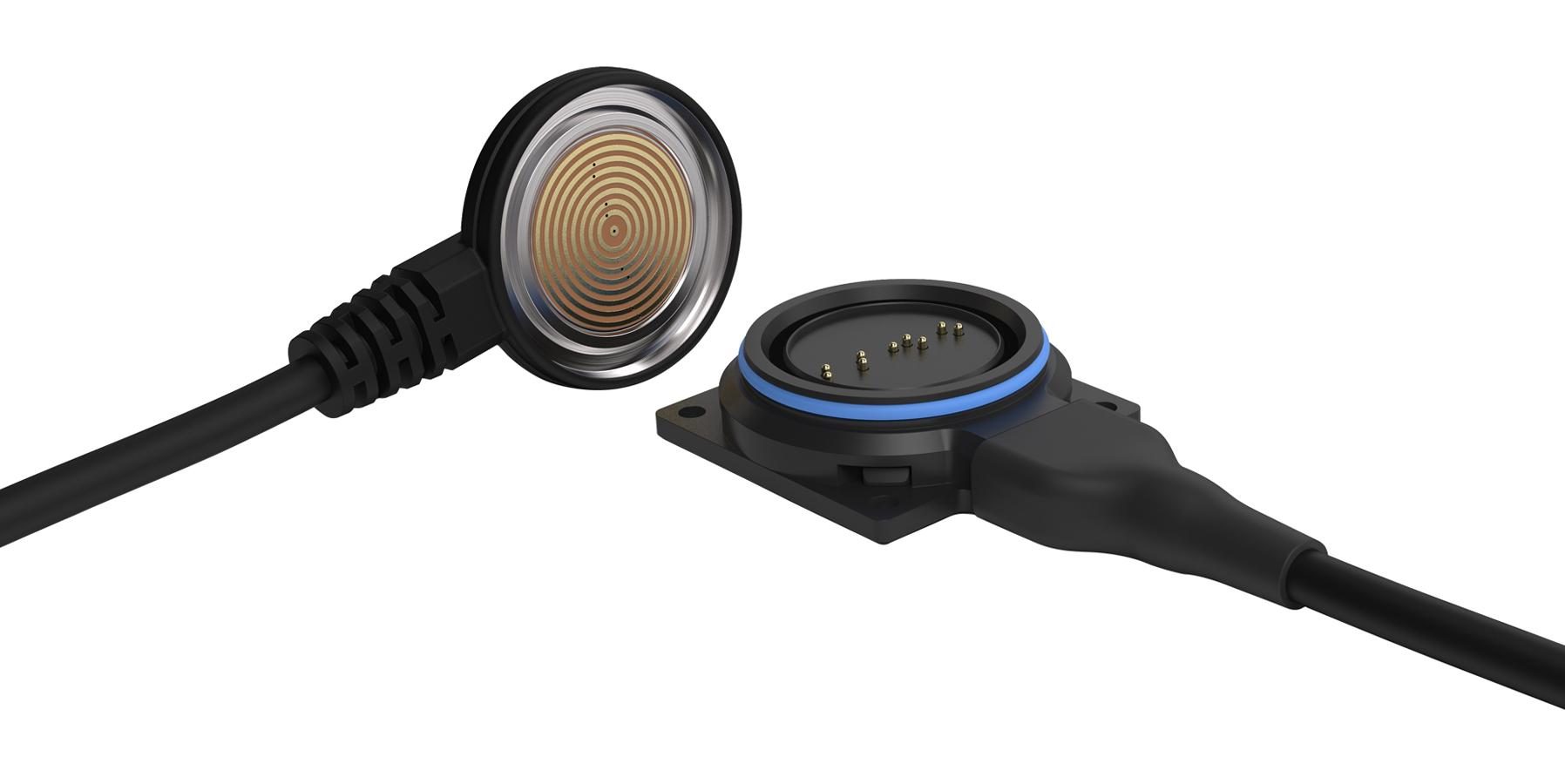

AMPHENOL LTD 20GBWM00AU030910000001 Magnetic Connector
The Stingray magnetic connector series offers a low-profile, sealed, and self-aligning interface suitable for USB 2.0, Ethernet, and audio signals. Designed for military, security, and first responder applications, it features a magnetic, non-keyed mating system that enables easy, blind-mate connections without pre-alignment or mechanical coupling mechanisms. Ruggedly sealed to IP68 standards, the connector withstands dust, water, chemicals, and immersion at 2 meters. With over 5000 mating cycles, high durability, and flexible cable exit options, it ensures reliable performance in demanding environments. Designed for ease of use and quick connection, it supports hot-swapping and offers a durable, corrosion-resistant interface.
AMPHENOL LTD 20GBWM00AU030910000001 Magnetic Connector Specifications:
- Electrical Current Rating: 3A per contact continuous, 5A peak
- Data Rate: USB 2.0 compliant
- Insulation Resistance: 5000 MΩ at 500 VDC
- Contact Resistance: <20 mΩ
- Sealing: IP68, 2 meters immersion
- Operating Temperature Range: -55°C to +85°C
- Storage Temperature Range: -55°C to +125°C
- Salt Spray Resistance: 500 hours with 5% NaCl (mated)
- Mating Durability: Minimum 5000 cycles
- Separation Force: 4.0 N typical
- Rotations: Minimum 1000
- Rotational Torque: 0.7 Nm typical
Buy the Amphenol Series Stingray Magnetic Connector: 20GBWM00AU030910000001
Experience the reliable performance of the Stingray magnetic connector series designed for tough, demanding applications. Featuring IP68 sealing, magnetic, blind-mate operation, and compatibility with USB 2.0, Ethernet, and audio signals, this rugged connector offers over 5000 mating cycles for long-term durability. Its low-profile, sealed housing ensures protection against dust, moisture, and chemicals, making it ideal for military, security, and emergency equipment. Easy to install, with flexible cable exit options, this connector provides quick, secure, and maintenance-friendly connections in critical environments. Buy online today to ensure your equipment is always connected with high reliability.
Order your Amphenol Series Stingray magnetic connector today and give your projects the dependable, robust connection they deserve in harsh environments.
