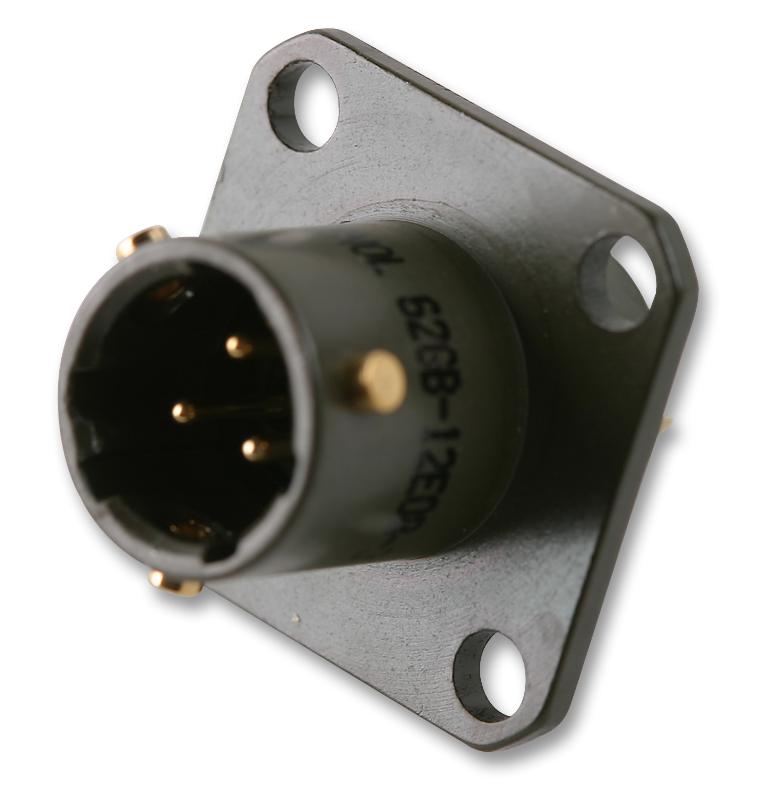

AMPHENOL LTD 62GB12E1006PN Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors designed to meet MIL-C-26482 standards, offering robust and corrosion-resistant shells typically finished in zinc cobalt olive drab. They feature gold-plated solder contacts suitable for high reliability connections across sizes ranging from size 8 to 24, accommodating up to 61 contacts within an 1.5-inch diameter shell. These connectors are used extensively in military, aerospace, and industrial applications requiring high durability, environmental sealing, and secure mating with positive keying to prevent mis-mating, available with various mounting options including box, cable, and hermetic seal configurations.
AMPHENOL LTD 62GB12E1006PN Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or stainless steel, zinc cobalt olive drab finish (optional cadmium plating available)
- Contacts: Gold-plated solder contacts, sizes from 8 to 24, configuration up to 61 contacts in size 24 shells
- Temperature Range: -55°C to +125°C, operating temperature
- Shell Diameter: Ranges from 0.5 inch (size 8) up to 1.5 inch (size 24)
- Current Ratings: Contact size 8: 45A max per contact, 40A through all contacts; size 12: 23A max, 20A total
- Voltage Ratings: Up to 1500V RMS/Peak, at sea level; derated at high altitudes
- Environmental Sealing: Grommet and gasket options for environmental sealing, hermetic glass sealed dielectric available
- Keying & Insert Arrangements: Positive keying with options for standard or alternate key positions, included in insert configurations
- Standards Compliance: MIL-C-26482E, certified, and approved for military and aerospace use
- Finish and Coatings: Optional cadmium, electroless nickel, black anodising
- Mountings: Box, panel, cable, hermetic, and flange mounting options with multiple flange configurations and gasket seals
- Testing: Visual, polarization, contact resistance, hermetic sealing, vibration, shock, thermal cycling, and environmental tests included
Buy the Amphenol 62GB12E – Reliable MIL-C-26482 Connectors for Industrial Applications
Enhance your industrial or military systems with the high-precision Amphenol 62GB series connector. This robust connector features a zinc cobalt finish, gold-plated solder contacts, and multiple mounting options, ensuring reliable connections under harsh conditions. With certifications to MIL-C-26482 and options for hermetic sealing, these connectors offer excellent environmental resistance, secure mating, and exceptional electrical performance. Perfect for aerospace, defense, and industrial automation projects, order online today for fast delivery and long-lasting durability.
Get Amphenol 62GB12E today—built for precision, environmental sealing, and high-current reliability in demanding industrial and military environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1006PN?
You can click on the BUY or RFQ button to purchase 62GB12E1006PN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1006PN?
You can download the 62GB12E1006PN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1006PN?
AMPHENOL LTD
