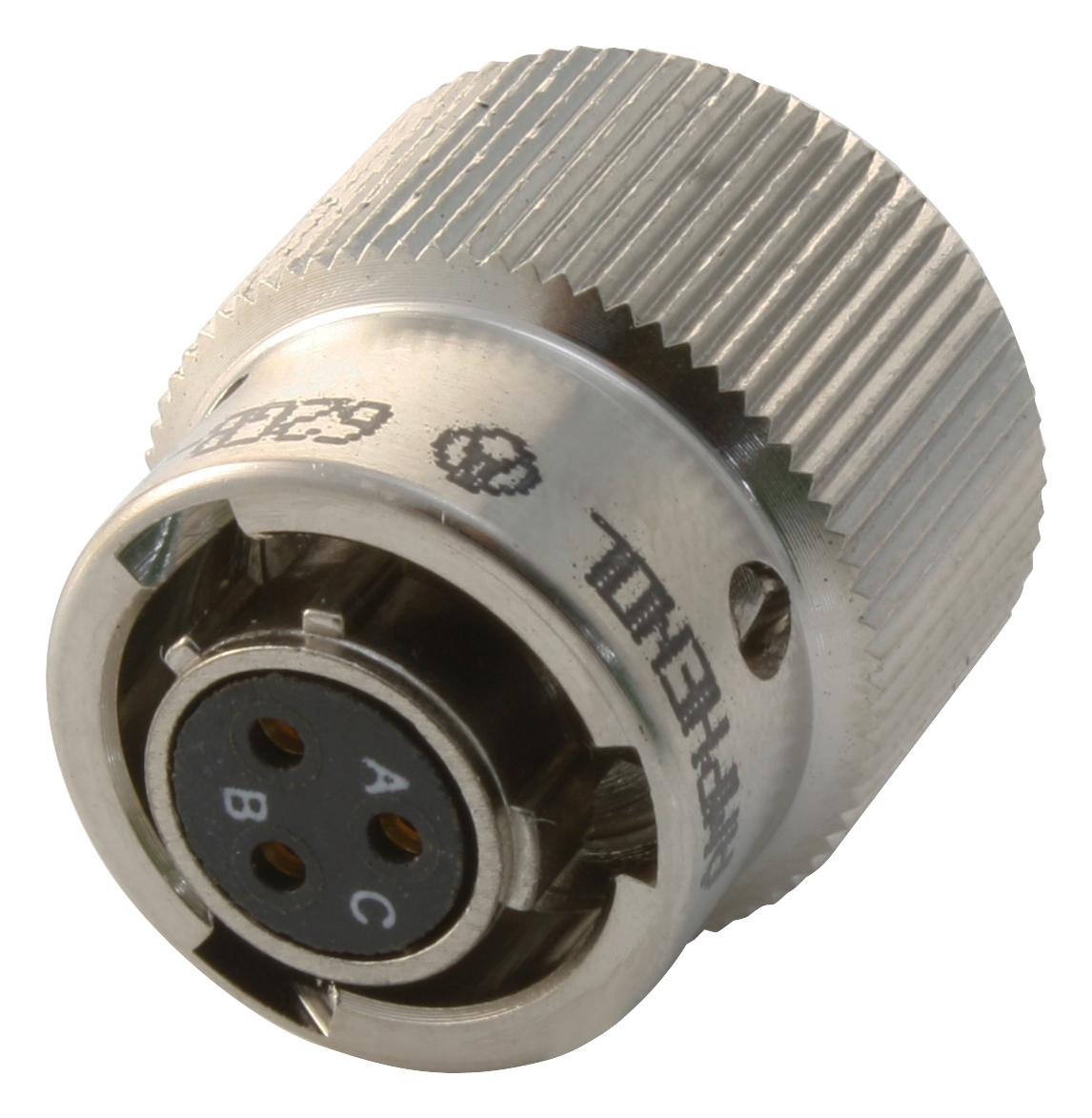

AMPHENOL LTD 62GB56T0833SN416 Miniature Bayonet Lock Connector
Amphenol's 62GB series connectors are miniature bayonet lock connectors designed to meet MIL-C-26482E specifications. These connectors are known for their robust design and doubly strong locking mechanism, making them suitable for demanding applications across various industries. Manufactured in Whitstable, the facility is recognized for its efficiency and exemplary standards. The 62GB series has gained international recognition, finding use in numerous countries. They are available in brass or stainless steel with various finishes, including zinc cobalt olive drab, cadmium plate, and others upon request. Inserts are made of polychloroprene rubber, offering a wide temperature range (-55°C to 125°C) and gold-plated contacts for reliable soldered connections.
AMPHENOL LTD 62GB56T0833SN416 Miniature Bayonet Lock Connector Specifications:
- Maximum current per individual contact (in isolation) at 85°C: {'Contact size 12': '23 A', 'Contact size 8': '45 A'}
- Maximum current per contact through all contacts simultaneously at 85°C: {'Contact size 12': '20 A', 'Contact size 8': '40 A'}
- Voltage rating: {'Sea level': {'I': '700', 'II': '1200', 'III': '1500'}, '8500m (27,900ft)': {'I': '550', 'II': '650', 'III': '800'}, '21,340m (70,000ft)': {'I': '330', 'II': '380', 'III': '450'}}
- Voltage proof d.c. or a.c. peak: {'I': '2100', 'II': '3000', 'III': '3000', '8500m (27,900ft)': {'I': '1100', 'II': '1300', 'III': '1300'}, '21,340m (70,000ft)': {'I': '660', 'II': '760', 'III': '750'}}
- Shell material: Brass or stainless steel
- Shell finish: Zinc cobalt olive drab (standard), cadmium plate (available upon request)
- Insert material: Polychloroprene rubber
- Operating temperature range: -55°C to 125°C
- Contact plating: Gold-plated
- Keying options: Normal (N) or alternate positions (B, C, E, F)
- Rotated insert positions: w, x, y, z
