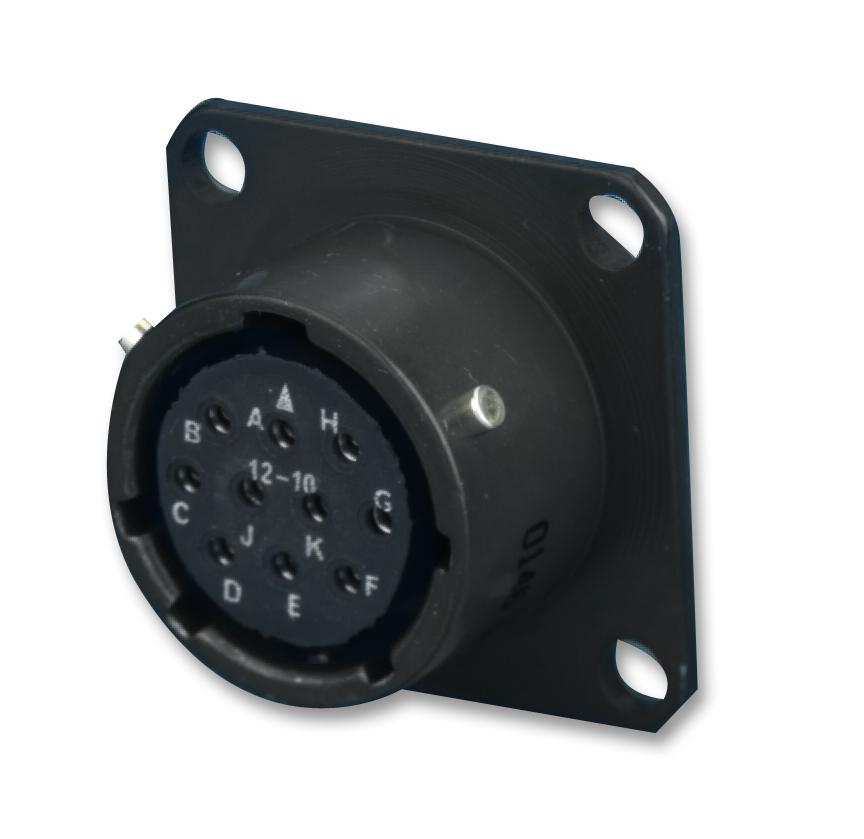

AMPHENOL LTD 62GB12E1006SN Miniature Bayonet Lock Connector
The 62GB Series connectors are lightweight, miniature bayonet lock connectors suitable for high-reliability military applications. Constructed from brass or stainless steel with corrosion-resistant finishes, they feature gold-plated solder contacts operating from -55°C to +125°C. Compliant with MIL-C-26482 standards, these connectors offer multiple configurations including box, cable, and hermetic types with various shell finishes and keying options. They provide high current ratings up to 45 A per contact, voltage ratings up to 1500 V, and feature positive keying for mis-mating prevention, making them ideal for demanding aerospace, military, and industrial environments.
AMPHENOL LTD 62GB12E1006SN Miniature Bayonet Lock Connector Specifications:
- Material: Brass or stainless steel shells with finishes including zinc cobalt olive drab, cadmium plate (special order), nickel, and electroless nickel
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Gold-plated copper alloy, tin-plated copper for hermetic variants
- Current Ratings: Up to 45 A per contact, all sizes; maximum current through all contacts at ambient 85°C: size 12: 20A, size 8: 40A
- Voltage Ratings: Up to 1500 V (nominal), with derating at high altitude; proof voltage up to 3000 V
- Ingress Protection: Sealed variants with hermetic glass seals or gasket seals, multiple configurations with dust and moisture protection
- Physical Dimensions: Shell sizes range from 8 to 24, with dimensions specified for mounting and cable entry; standard diameters from 20.75 mm to 45.14 mm
- Connectors per MIL-C-26482: Types include receptacle, plug, hermetic, with various mountings (box, cable, hermetic, single hole, flange), keying for mis-mating prevention
- Insert Configurations: Multiple contact arrangements (from 2 to 61 contacts), polarizations, and key positions (A, B, C, D, E, F, etc.)
- Certification: Certified to MIL-C-26482E, compliant with BS9522 standards for environmental and electrical performance
- Additional Features: Positively keyed shells, optional rotated inserts, multiple surface finishes, environmental sealing, and special configurations for sensitive applications
Buy the Amphenol Series 62GB Connectors: 62GB12E1006SN
Purchase your Amphenol Series 62GB connector online now to enjoy high-quality, MIL-C-26482 compliant connectors with corrosion-resistant finishes, extensive configurations, and superior sealing capabilities. Designed for demanding military, aerospace, and industrial environments, these connectors deliver reliable high-current connections up to 45 A per contact and voltage ratings up to 1500 V. Their robust construction ensures durability at extreme temperatures from -55°C to +125°C. Fast online ordering guarantees quick delivery and consistent quality for your critical projects.
Order your Amphenol Series 62GB 12E connector today and ensure your projects benefit from military-grade reliability and high-current performance.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1006SN?
You can click on the BUY or RFQ button to purchase 62GB12E1006SN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1006SN?
You can download the 62GB12E1006SN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1006SN?
AMPHENOL LTD
