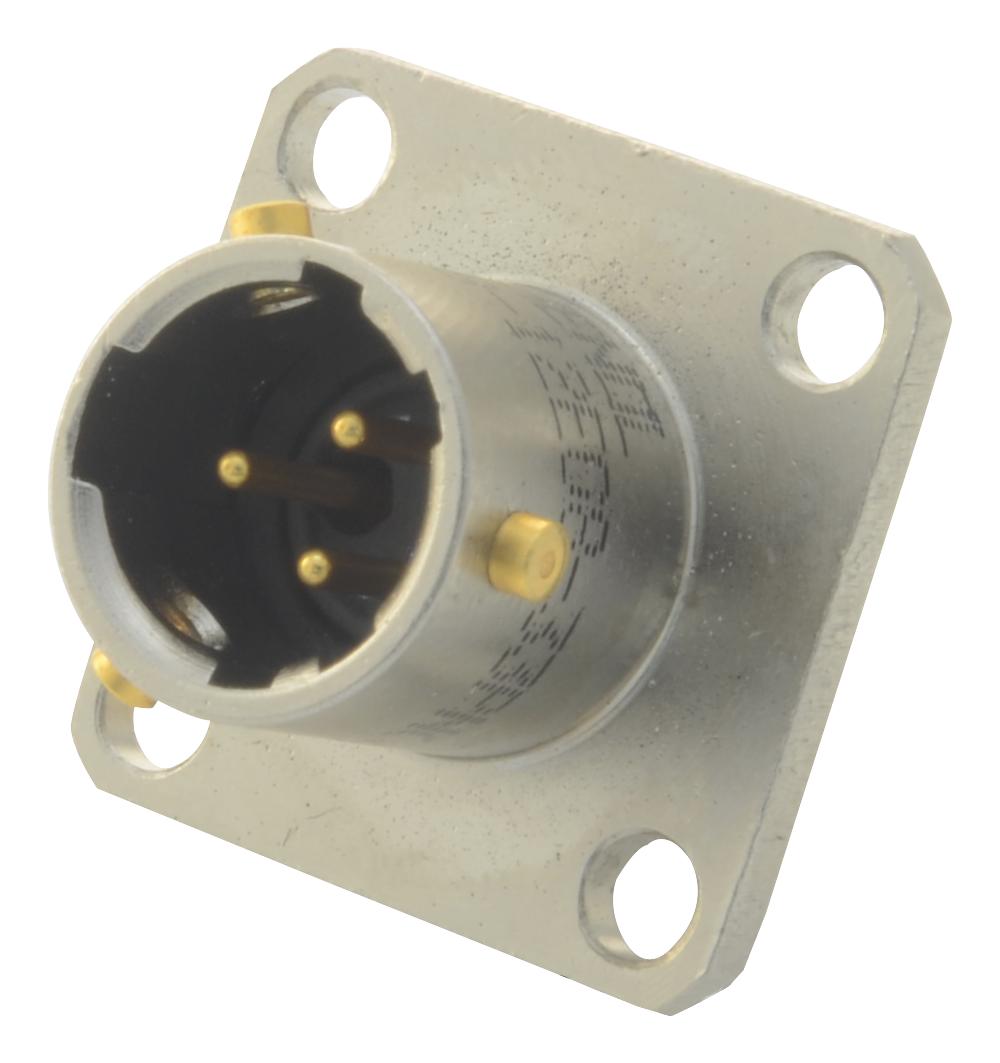

AMPHENOL LTD 62GB12E1007PN416 Miniature Bayonet Connector
The 62GB series are miniature bayonet lock connectors designed to meet MIL-C-26482 standards, offering robust construction with options in brass and stainless steel shells. They feature high corrosion resistance, gold-plated solder contacts, and a temperature range of -55°C to +125°C. These connectors are used in demanding military, aerospace, and industrial applications, providing reliable electrical connection with keying to prevent mis-mating. Variations include receptacles, plugs, hermetic versions, and accessories such as grommets and strain relief components, ensuring compatibility with a wide range of equipment and environmental conditions.
AMPHENOL LTD 62GB12E1007PN416 Miniature Bayonet Connector Specifications:
- Shell Material: Brass or stainless steel
- Finish: Zinc cobalt olive drab (standard), cadmium plated available
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Gold-plated copper alloy
- Insertion and Extraction Force: Engaging 0.90 Nm max, separating 0.22 Nm min
- Voltage Ratings: Up to 1500 V (nominal, at sea level), derated at high altitude
- Current Ratings: Size 12 contact up to 23 A, size 8 contact up to 45 A
- Dielectric Withstanding Voltage: 3000 V d.c. or peak
- Sealing: Hermetic and gasket sealed options available
- Keying: Positive bayonet locking with multiple key positions to prevent incorrect mating
- Temperature Rating: -55°C to +125°C
- Compliance: MIL-C-26482E, with certification
- Insert Configurations: Variants with pin or socket contacts, multiple sizes and orientations
- Environmental Sealing: Grommet and gland options for environmental protection
- Durability: Connector withstands vibration, shock, moisture, and thermal cycling
Buy the Buy Amphenol 62GB12E Part Number 62GB12E1007PN416 Online
Order the military-grade Amphenol miniature bayonet connector 62GB12E-1007PN416 online today. Designed to meet MIL-C-26482 standards, it features corrosion-resistant brass and stainless steel shells, gold-plated contacts, and reliable sealing options. Ideal for demanding aerospace, military, and industrial environments, it ensures secure connections across a wide temperature range of -55°C to +125°C. With various configurations including hermetic versions, accessories like grommets, strain reliefs, and environmental seals, ensure versatile, high-performance connectivity for critical applications worldwide.
Get Amphenol 62GB12E today—built for military-grade durability and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1007PN416?
You can click on the BUY or RFQ button to purchase 62GB12E1007PN416 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1007PN416?
You can download the 62GB12E1007PN416 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1007PN416?
AMPHENOL LTD
