AMPHENOL LTD 62GB5851405S Miniature Bayonet Connector
The 62GB Series is a range of miniature bayonet lock connectors designed in compliance with MIL-C-26482 standards. Manufactured with corrosion-resistant zinc cobalt olive drab or special finishes, these durable connectors feature high-temperature silicone rubber inserts and gold-plated solder contacts suitable for harsh environments. Available in brass or stainless steel shells, they offer configurations from 2 to 61 contacts, with multiple mounting options including box, flange, and single-hole. They provide reliable environmental sealing, keying to prevent mis-mating, and a broad operating temperature range from -55°C to +125°C, making them ideal for military, aerospace, and industrial applications.
AMPHENOL LTD 62GB5851405S Miniature Bayonet Connector Specifications:
- Material: Brass or stainless steel shells
- Finish: Zinc cobalt olive drab or special finishes (cadmium plate available on request)
- Inserts: Silicone rubber, gold-plated contacts
- Temperature Range: -55°C to +125°C
- Contact Size Range: 2 to 61 contacts, sizes 8, 12, 14, 16, 18, 20, 22, 24
- Operating Voltage: Up to 1500 V (nominal, at sea level), derating at high altitudes
- Current Ratings: Contact size 12 - 23 A (isolated), 20 A (all contacts), Contact size 8 - 45 A (isolated), 40 A (all contacts)
- Keying: Positive shell-to-shell keying with multiple key positions to prevent mismating
- Sealing: Environmentally sealed with grommet, grommet nut, or gasket options for hermetic, box, flange, and single hole mounting
- Mechanical: Engagement torque 0.90 Nm max, separation torque 0.22 Nm min
- Dimensions: Shell sizes and connection configurations vary, with detailed dimensions listed per configuration
- Certification: MIL-C-26482E compliant; certified under certificate No. 1713

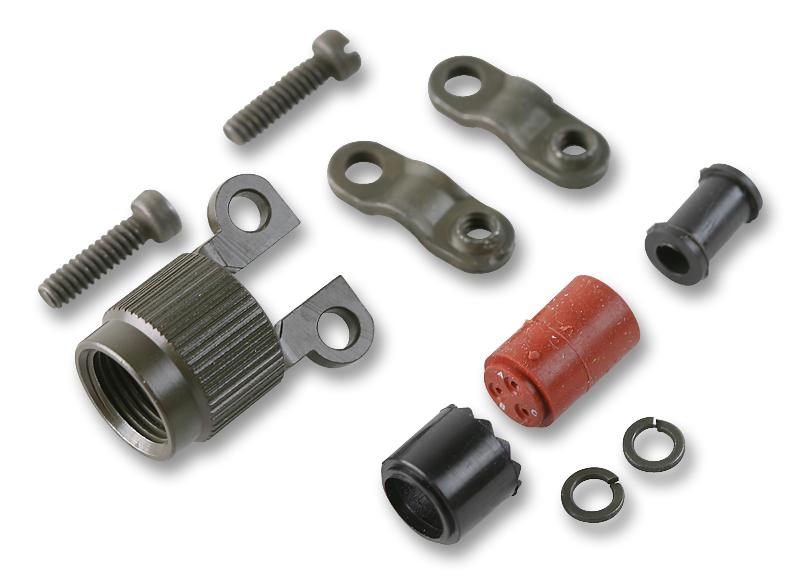

Buy the Buy Amphenol 62GB Series Connector Part Number 62GB5851405S Online
Order the Amphenol 62GB Series miniature bayonet connector online now for reliable performance in demanding environments. Designed with corrosion-resistant shells and high-temperature silicone rubber inserts, these connectors offer secure, sealed connections suitable for military and industrial use. With a broad range of configurations from 2 to 61 contacts and various mounting options like box, flange, and single-hole, they ensure quick assembly, durability, and compatibility with high voltages up to 1500 V. Perfect for aerospace, defense, and manufacturing industries seeking robust and sealed electrical connections.
Get Amphenol 62GB Series connector with high durability and environmental sealing today—engineered for military, aerospace, and industrial precision applications.
