AMPHENOL LTD 62GB12E1402SN Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors designed to meet MIL-C-26482 standards. Suitable for various industries, these connectors feature corrosion-resistant zinc cobalt or stainless steel shells, gold-plated contacts for soldered connections, and polychloroprene inserts for operating temperatures from -55°C to +125°C. They incorporate shell-to-shell keying to prevent mismating, with multiple configurations including box, wall, and cable mounting options. Hermetic variants with glass-sealed dielectric are also available. The series is extensively used internationally, with high current ratings and voltage capability, ensuring reliable performance in demanding environments.
AMPHENOL LTD 62GB12E1402SN Miniature Bayonet Lock Connector Specifications:
- Materials: Brass or stainless steel shells, zinc cobalt olive drab or cadmium finishes, gold-plated contacts
- Operating Temperature Range: -55°C to +125°C
- Insert Material: Polychloroprene rubber
- Voltage Ratings: Up to 1500V (nominal), voltage proof up to 3000V
- Current Ratings: Contact size 12: 23A (max per contact), 20A through all contacts; size 8: 45A (max per contact), 40A through all contacts
- Shell Sizes: Ranging from 8 to 24, diameters from 12.7mm to 36.1mm
- Shell Finish: Zinc cobalt, stainless steel, cadmium plate (special order)
- Connector Types: Receptacles, plugs, hermetic sealed variants; box, wall, cable, and single-hole mounting options
- Key/Keyway Positions: Fixed and rotated positions (w, x, y, z), keyed to prevent mismating
- Compliance: MIL-C-26482E, internationally recognized, used globally including Europe, North America, Asia

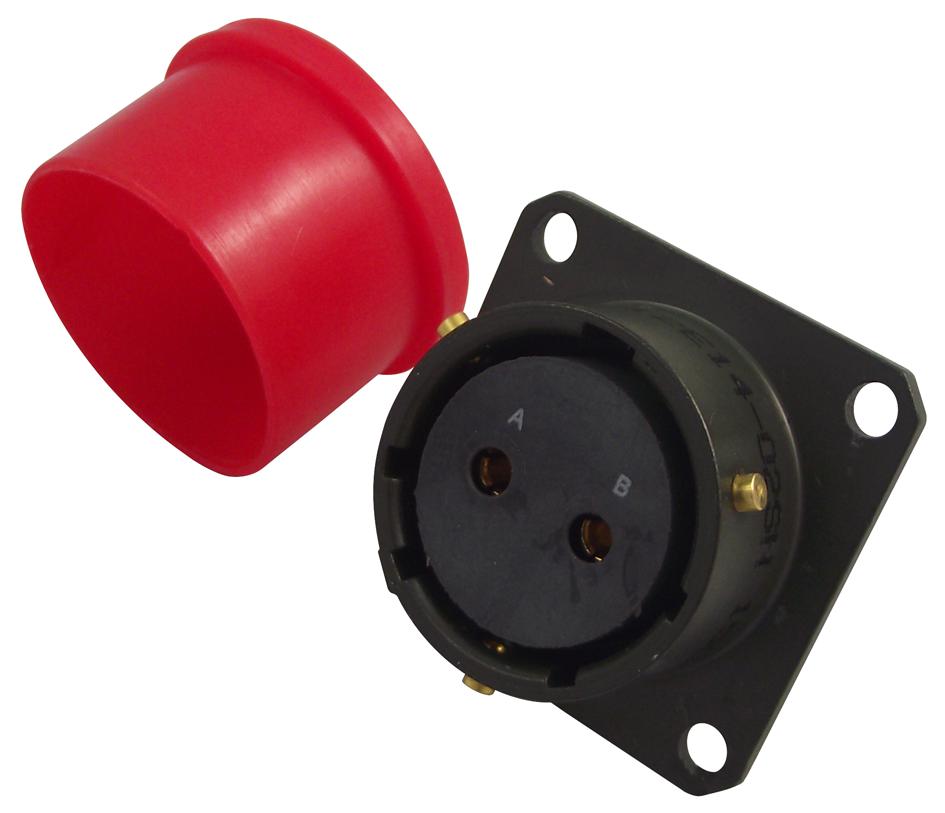

Buy the Buy Amphenol 62GB Series Part Number 62GB12E1402SN Online
Order the Amphenol 62GB series connector today for high-performance, corrosion-resistant connections designed to meet military standards. These connectors offer robust engineering for demanding applications with a temperature range from -55°C to +125°C, rated voltages up to 1500V, and current capacity up to 45A per contact. Available in brass or stainless steel shells, with gold-plated contacts for soldered connections, they feature keying to prevent mis-mating, multiple mounting options, and hermetic variants for sealed environments. Reliable, durable, and compatible with international standards, they are ideal for diverse industrial, military, and aerospace uses.
Buy Amphenol 62GB series connector with high current ratings and reliable sealing now and experience unmatched durability and performance in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1402SN?
You can click on the BUY or RFQ button to purchase 62GB12E1402SN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1402SN?
You can download the 62GB12E1402SN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1402SN?
AMPHENOL LTD
