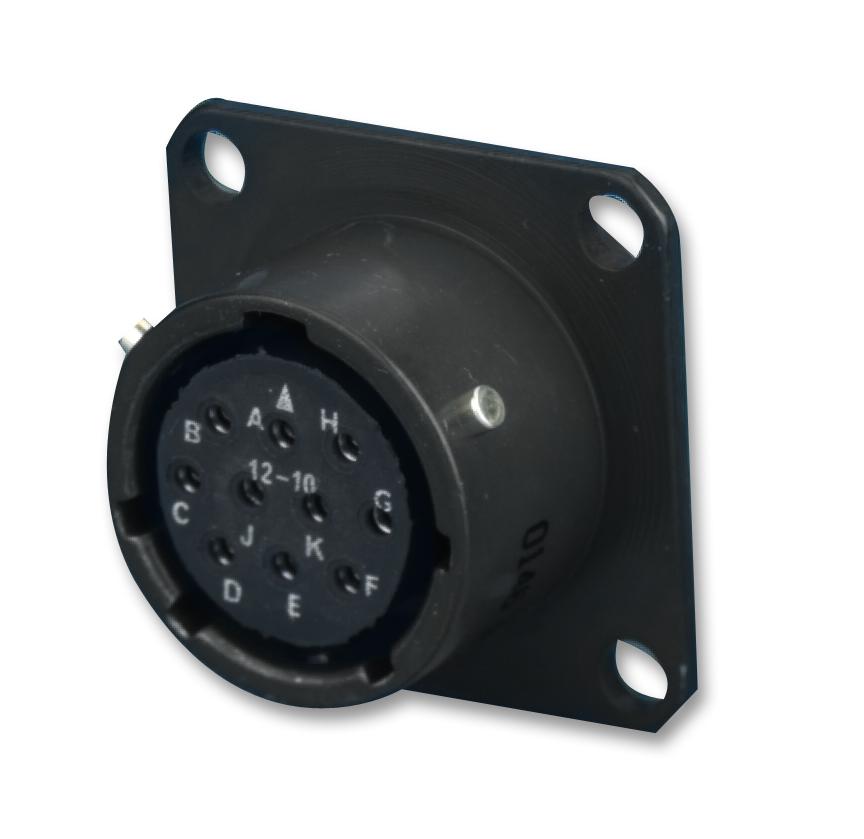

AMPHENOL LTD 62GB12E1626SN Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors compliant with MIL-C-26482E, suitable for high-reliability applications. They feature corrosion-resistant shells—brass or stainless steel—with various finishes, including zinc cobalt olive drab and cadmium plating. The connectors are designed for soldered, wire, or pin terminations, with options for hermetic sealing with glass dielectric. They support sizes from 8 to 24 contacts, each with gold-plated contacts, operating over -55°C to 125°C, and are used in military, industrial, and international government applications, offering robust environmental protection and keying to prevent mis-mating.
AMPHENOL LTD 62GB12E1626SN Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or Stainless Steel
- Finish Options: Zinc cobalt olive drab, cadmium plate (special order)
- Operating Temperature Range: -55°C to +125°C
- Insert Material: Polychloroprene rubber with gold-plated contacts
- Contact Sizes: 8–24 contacts, with current ratings up to 45 A for size 8
- Voltage Ratings: 700V to 1500V nominal, dependent on altitude and configuration
- Shell Finish: Zinc cobalt, cadmium plating available on request
- Contact Resistance: Max 5 milliohms
- Insulation Resistance: Min 5,000 Megaohms at 500V-50V DC
- Sealing: Hermetic, glass sealed dielectric available
- Durability: Endurance tested for vibration, shock, and thermal cycling
- Keying: Positive shell-to-shell keying with multiple orientations for prevention of mis-mating
Buy the Amphenol Series 62GB Connectors: MIL-C-26482E Solder and Hermetic Variants
Order the durable Amphenol 62GB series connectors online today and ensure your application benefits from military-grade reliability. Designed for harsh environments, these connectors feature corrosion-resistant shells, gold-plated contacts, and multiple configurations for soldered, wire, or hermetic sealing. With operating temperatures from -55°C to +125°C and voltage ratings up to 1500V, they are ideal for military, aerospace, and industrial use. Easy to install with keying prevent mis-mating, these connectors support sizes from 8 to 24 contacts, providing robust, dependable connections worldwide.
Buy Amphenol 62GB Connectors now and experience unmatched reliability and performance in demanding environments.
