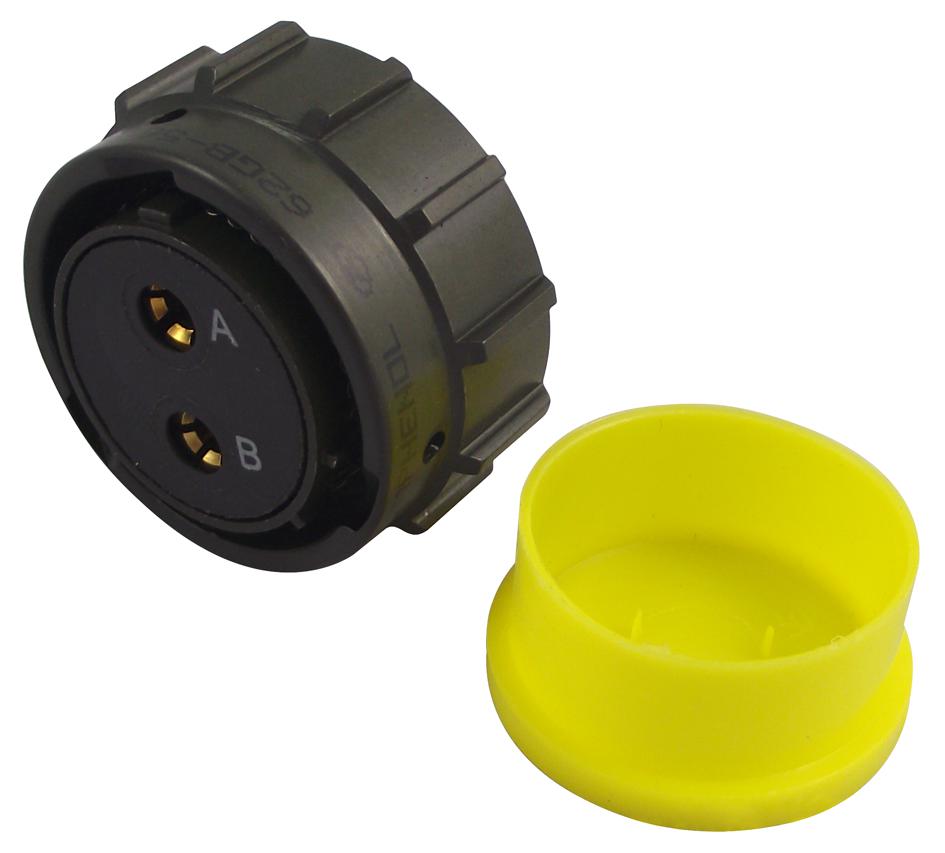

AMPHENOL LTD 62GB56TG1802SN044 Connector series
The 62GB Series connectors are miniature bayonet lock types designed to meet stringent MIL-C-26482 standards, offering robust construction in brass or stainless steel with corrosion-resistant finishes. They feature gold-plated contacts suitable for soldered connections, high voltage and current ratings, and various mounting options, including box, flange, and single-hole mounting. Designed for military and industrial applications, these connectors provide reliable environmental sealing, key/keyway polarization to prevent mismating, and available options for hermetic sealing and special finishes. They are extensively used in aerospace, defense, and heavy-duty equipment requiring durable, high-performance connectors.
AMPHENOL LTD 62GB56TG1802SN044 Connector series Specifications:
- Material: Brass or stainless steel shells
- Finish: Zinc cobalt olive drab, cadmium plate option available
- Operating Temperature: -55°C to +125°C
- Contacts: Gold-plated for soldered connections, sizes from 8 to 24
- Voltage Rating: Up to 1500 V (nominal), provisions for high-altitude derating
- Current Ratings: Contact size 12: 23 A (max in isolation), 20 A through all contacts; size 8: 45 A (max in isolation), 40 A through all contacts
- Shell Sizes: Diameter from 12.7 mm (size 8) to 36.1 mm (size 24)
- Mounting Options: Box, flange, single hole, hermetic, cable, and plug mounts
- Keying: Positive shell-to-shell keying, with multiple keyway positions for polarization
- Certifications: MIL-C-26482E compliance, UL Listed, CSA certified
- Sealing: Grommet seals, hermetic glass-sealed dielectric options, environmental sealing for moisture and dust resistance
- Insert Configurations: Pinned and socket contacts, with alternative orientations and keyways
- Size Range: 8 to 24 contact arrangements, various styles for different mounting applications
Buy the Amphenol Series 62GB Connector: 62GB56TG1802SN044
Order the Amphenol 62GB series connector, model 62GB56TG1802SN044, today online and ensure your project benefits from military-grade robustness with high voltages and current ratings. Perfect for aerospace, defense, and heavy-duty industrial applications, these connectors offer corrosion-resistant brass or stainless steel shells, gold-plated solder contacts, and multiple mounting options. Their environmental sealing capabilities protect against moisture, dust, and extreme temperatures, guaranteeing reliable performance in demanding conditions. Enjoy fast delivery, competitive pricing, and technical support by purchasing online today.
Buy Amphenol 62GB series connector 62GB56TG1802SN044 now and experience unmatched durability, high voltage performance, and reliable environmental sealing.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB56TG1802SN044?
You can click on the BUY or RFQ button to purchase 62GB56TG1802SN044 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB56TG1802SN044?
You can download the 62GB56TG1802SN044 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB56TG1802SN044?
AMPHENOL LTD
