AMPHENOL LTD 62GB5850833S Miniature Bayonet Lock Connector
The 62GB series connectors are miniature bayonet lock connectors compliant with MIL-C-26482E standard, designed for robust industrial and military applications. They feature high corrosion resistance, optional finishes, and gold-plated contacts for reliable soldered connections. The series includes various configurations like box, cable, and hermetic versions, with keying to prevent mis-mating. Suitable for environments with high vibration, temperature extremes, and where environmental sealing is critical, these connectors ensure dependable performance in aerospace, military, and industrial systems.
AMPHENOL LTD 62GB5850833S Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or Stainless Steel
- Finish: Zinc cobalt olive drab (standard), cadmium available on request
- Operating Temperature Range: -55°C to +125°C
- Inserts: Polychloroprene rubber, gold-plated contacts for soldering
- Configuration: Multiple options including box, cable, hermetic, and flange mounting
- Current Ratings: Size 20 contact 7.5A, Size 16 contact 13A at ambient 85°C
- Voltage Ratings: Up to 1500V d.c. depending on configuration and altitude
- Shell Finishes: Nickel, zinc cobalt, cadmium, others available
- Keying: Positive shell-to-shell with multiple key positions (N, B, C, E, F)
- Standards: Compliant with MIL-C-26482E, BS9522 F0017
- Sealing: Hermetic with glass sealed dielectric, environmental seals with grommet and strain relief features
- Ingress Protection: Designed for environmental sealing against dust and moisture

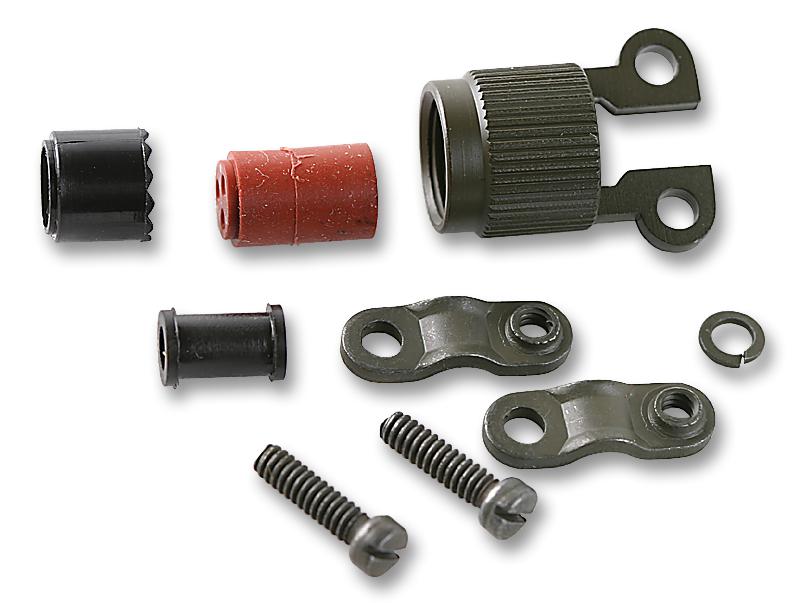

Buy the Amphenol 62GB-585 Reliable Industrial Connectors for Military and Aerospace Applications
Secure your equipment with Amphenol's 62GB series miniature bayonet lock connectors, engineered for rugged military and industrial environments. These connectors comply with MIL-C-26482E standards, offering high corrosion resistance, reliable solder contacts, and environmental sealing. Choose from various configurations including hermetic, box, and flange mount options. Designed to withstand temperature extremes, vibration, and moisture, they ensure dependable connections for aerospace, military, and industrial applications. Order online now to enhance your system’s reliability and operational performance.
Buy Amphenol 62GB-585 now and experience unmatched reliability and performance in demanding industrial, aerospace, and military systems.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB5850833S?
You can click on the BUY or RFQ button to purchase 62GB5850833S from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB5850833S?
You can download the 62GB5850833S datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB5850833S?
AMPHENOL LTD
