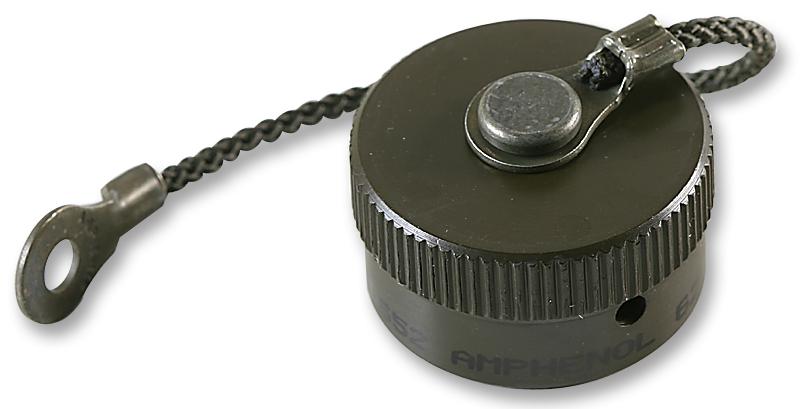

AMPHENOL LTD 62GB81212 Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors compliant with MIL-C-26482E, designed for high-reliability electrical connections in military and industrial applications. Made from brass or stainless steel with corrosion-resistant finishes, they feature gold-plated contacts suitable for soldered connections, and offer options like hermetic glass-sealed dielectric versions. These connectors are ideal for demanding environments, providing robust physical and electrical performance, with multiple configurations for size, orientation, and mounting style, including box, cable, and plug variants. They are extensively used internationally across government and industrial sectors, ensuring high durability, high voltage ratings, and effective seal-to-shell keying for safety and mis-mating prevention.
AMPHENOL LTD 62GB81212 Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or stainless steel with corrosion-resistant finishes such as zinc cobalt olive drab, cadmium plating available by special order
- Operating Temperature Range: -55°C to 125°C
- Contact Material: Gold-plated, suitable for soldered connections
- Insert Material: Polychloroprene rubber
- Electrical Ratings: Up to 700 V (nominal), Current per contact up to 23 A (size 12), 45 A (size 8)
- Voltage Proof: 2100 VDC or peak in specific configurations
- Shell Finishes: Zinc cobalt olive drab standard, others available on request
- Configurations: Receptacle, plug, box, cable mountings with multiple styles and keying options
- Sealing: Shell-to-shell keying with fixed or rotatable keyways, hermetic glass-sealed dielectric options
- Mounting Styles: Wall, cable, box, flange, single hole
- Insert Arrangements: Up to 61 contacts (size 24 shell), various key/keyway orientations for mis-mating protection
- Compliance: MIL-C-26482E, approved for military and industrial use globally
Buy the Amphenol Series 62GB Connectors: Miniature Bayonet Lock Connector
Order the durable Amphenol 62GB series miniature bayonet lock connectors online today. Designed for high reliability, these connectors feature corrosion-resistant shells, gold-plated contacts for soldered connections, and a variety of configurations for military and industrial applications. With advanced keying options to prevent mis-mating, high voltage ratings, and seals to ensure environmental protection, they are the perfect choice for demanding environments. Experience fast, secure online purchasing and ensure your project has dependable, high-performance connectors that meet international standards.
Get Amphenol 62GB connector today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB81212?
You can click on the BUY or RFQ button to purchase 62GB81212 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB81212?
You can download the 62GB81212 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB81212?
AMPHENOL LTD
