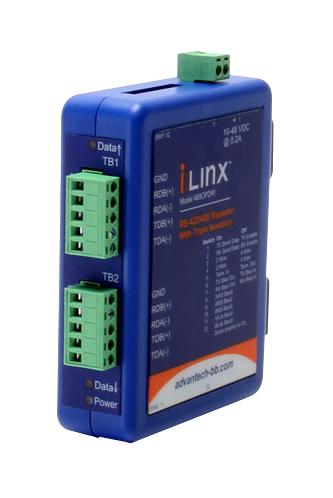

Advantech Automation BB485OPDRI RS-422/485 Isolated Repeater
The industrial RS-422/485 isolated repeater is designed for harsh environments, supporting data rates up to 115.2 Kbps and extending signals up to 1,200 meters. It features 2KV RMS optical isolation on data ports and power circuits, ensuring protection against ground loops and surges. Its rugged ABS enclosure operates in temperatures from -40 to +80°C and mounts easily on DIN rails. Ideal for Modbus, DH-485, and automation applications, it offers built-in switchable bias and termination, providing reliable signal repeat and robust network performance in industrial settings.
Advantech Automation BB485OPDRI RS-422/485 Isolated Repeater Specifications:
- Serial Technology: RS-422, RS-485 4-wire, RS-485 2-wire
- Data Rate: 24 to 115.2 Kbps
- Isolation: 2KV RMS, 1 Minute
- Dimensions: 12.3 x 11.3 x 3.2 mm (4.9 x 4.5 x 1.3 in)
- Enclosure: IP 20, Plastic, DIN 35 mm Mount
- Power Supply: 40 to 48 VDC, Max 66 VDC
- Power Consumption: 0.6 W (typical), 1.3 W (with termination)
- Operating Temperature: -40 to 80°C
- Storage Temperature: -40 to 85°C
- Humidty: 0 to 95% Non-condensing
- Approvals: FCC, CE, UL, UL Class 1/Division 2
- Insulation Resistance: 2500 MQ @ 600 VDC
- Weight: 222g
- MTBF: 114,696 hours
Buy the Advantech BB485OPDRI – Reliable RS-422/485 Isolated Repeater for Industrial Applications
Enhance your industrial communication network with the Advantech RS-422/485 isolated repeater. Supporting data rates up to 115.2 Kbps and extending signals to 1,200 meters, it ensures reliable data transmission. With 2KV RMS optical isolation, rugged ABS enclosure, and DIN rail mounting, it's ideal for harsh environments from -40 to +80°C. Built-in switchable bias and termination simplify setup, making it the perfect choice for automation, Modbus, and DH-485 networks, offering durability and protection for industrial control systems.
Buy Advantech BB485OPDRI now and experience unmatched reliability and performance in industrial signal repeaters.
