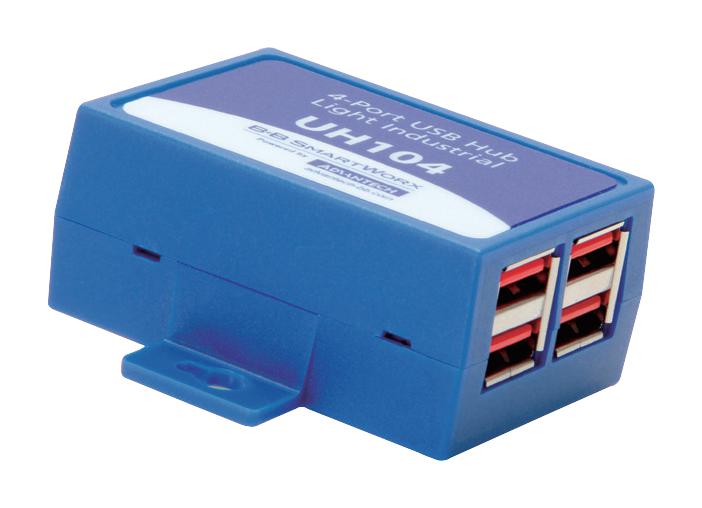

Advantech Automation BBUH104 Industrial USB Hub
The BB-UH104 is a robust four-port industrial USB 2.0 hub designed for demanding environments. It expands a single USB port to four high-speed ports with 480 Mbps transfer rate, featuring high retention USB connectors and 15 KV ESD protection for reliability. The compact enclosure measures 61x44.5x27.9 mm, made of IP30-rated polycarbonate, and supports wide operating temperatures from -40°C to +80°C. It complies with FCC, CE standards, and EU directives, making it ideal for industrial automation, control systems, and rugged applications.
Advantech Automation BBUH104 Industrial USB Hub Specifications:
- USB Interface: USB 2.0 (1.1 compatible)
- Upstream Port: Type B Female — High Retention
- Downstream Ports: 4 x Type A Female — High Retention
- Data Speed: 480 Mbps on each port
- ESD Protection: 15 KV Air, 8 kV Contact
- Power: 5 V from USB bus, 100 mA per port
- Dimensions: 61 x 44.5 x 27.9 mm
- Enclosure: IP30, Polycarbonate Plastic
- Weight: 49.909 grams
- MTBF: 552,747 hours
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 0 to 95% Non-condensing
- Certifications: FCC, CE, RoHS, WEEE
- Standards: EN 55032, EN 55024, EN 61000-6-1
Buy the Buy Industrial USB Hub Part Number BB-UH104 Online
Enhance your industrial automation setup with the BB-UH104 four-port USB 2.0 hub. Designed for harsh environments, it features high retention ports, 15 KV ESD protection, and compact rugged enclosure. Its wide temperature range from -40°C to +80°C makes it suitable for demanding applications. Easily integrate into control systems, manufacturing lines, or embedded platforms, ensuring fast data transfer and reliable operation. Purchase online now for dependable connectivity and peace of mind in your industrial solutions.
Order your BB-UH104 four-port industrial USB hub today and improve your rugged control systems with reliable high-speed connectivity.
Frequently Asked Questions
Where can I buy Advantech Automation BBUH104?
You can click on the BUY or RFQ button to purchase BBUH104 from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBUH104?
You can download the BBUH104 datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBUH104?
Advantech Automation
