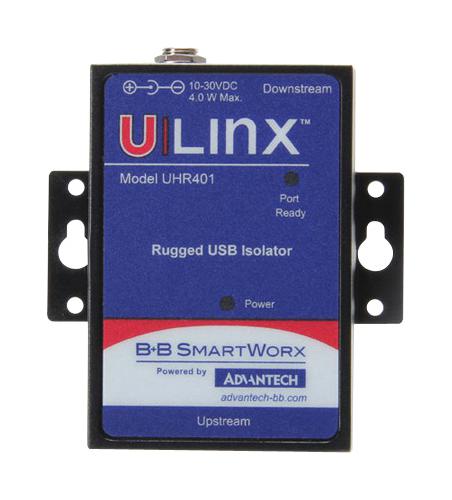

Advantech Automation BBUHR401 Rugged USB Isolator
The ruggedized USB isolator series includes the BB-UHR401 and BB-UHR402, designed for heavy industrial environments. They offer 4kV isolation to protect equipment from ground loops and data corruption, withstand high vibration with high retention USB connectors, and feature support for USB 1.1 & 2.0 standards at 12 Mbps. These one and two port isolators include power supplies (USA, EU, UK blades) and USB cables. Built for EMC compliance, they operate reliably near electrical noise sources like VFDs and motor controls, ensuring data integrity and equipment safety.
Advantech Automation BBUHR401 Rugged USB Isolator Specifications:
- USB Standards: USB 1.1 & 2.0 (12 Mbps)
- Isolation Voltage: 4 kV between upstream and downstream ports
- ESD Protection: 45 KV Air, 8 KV Contact
- USB Ports: Type B Female (upstream), Type A Female (downstream, 1 or 2 ports), high retention
- Maximum Withdrawal Force: 15 N (3.2 lbs) for USB ports
- Power Supply: External 10-30 VDC (included); barrel jack, center positive
- Power Consumption: BB-UHR401 - 4 Watts, BB-UHR402 - 7 Watts
- Downstream Power Output: Up to 500 mA per port
- Dimensions: 7.9 x 5.4 x 2.7 cm (3.1 x 2.1 x 1.1 inches)
- Enclosure: IP30, plastic
- Weight: 0.15 lbs (80 g)
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 0-95%, non-condensing
- Certifications: FCC, CE, KCC, R(MSIP), RoHS, WEEE
- MTBF: BB-UHR401 - 375842 hours, BB-UHR402 - 353807 hours
Buy the Advantech Series Rugged USB Isolator: BBUHR401
Purchase the Advantech Series Rugged USB Isolator BB-UHR401 today for industrial-grade protection of your data and equipment. Designed to meet tough EMC standards, it provides 4kV isolation, with high retention connectors suitable for high vibration applications. Included power supply and USB cable enable instant setup. Compact and durable, it withstands extreme temperatures and electrical noise near VFDs or motor controls. Secure your industrial data communications with this reliable, easy-to-install USB isolator designed for demanding environments and long-term operation.
Order your Advantech Series Rugged USB Isolator BB-UHR401 today and ensure reliable, high-quality data transfer in industrial environments.
Frequently Asked Questions
Where can I buy Advantech Automation BBUHR401?
You can click on the BUY or RFQ button to purchase BBUHR401 from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBUHR401?
You can download the BBUHR401 datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBUHR401?
Advantech Automation
