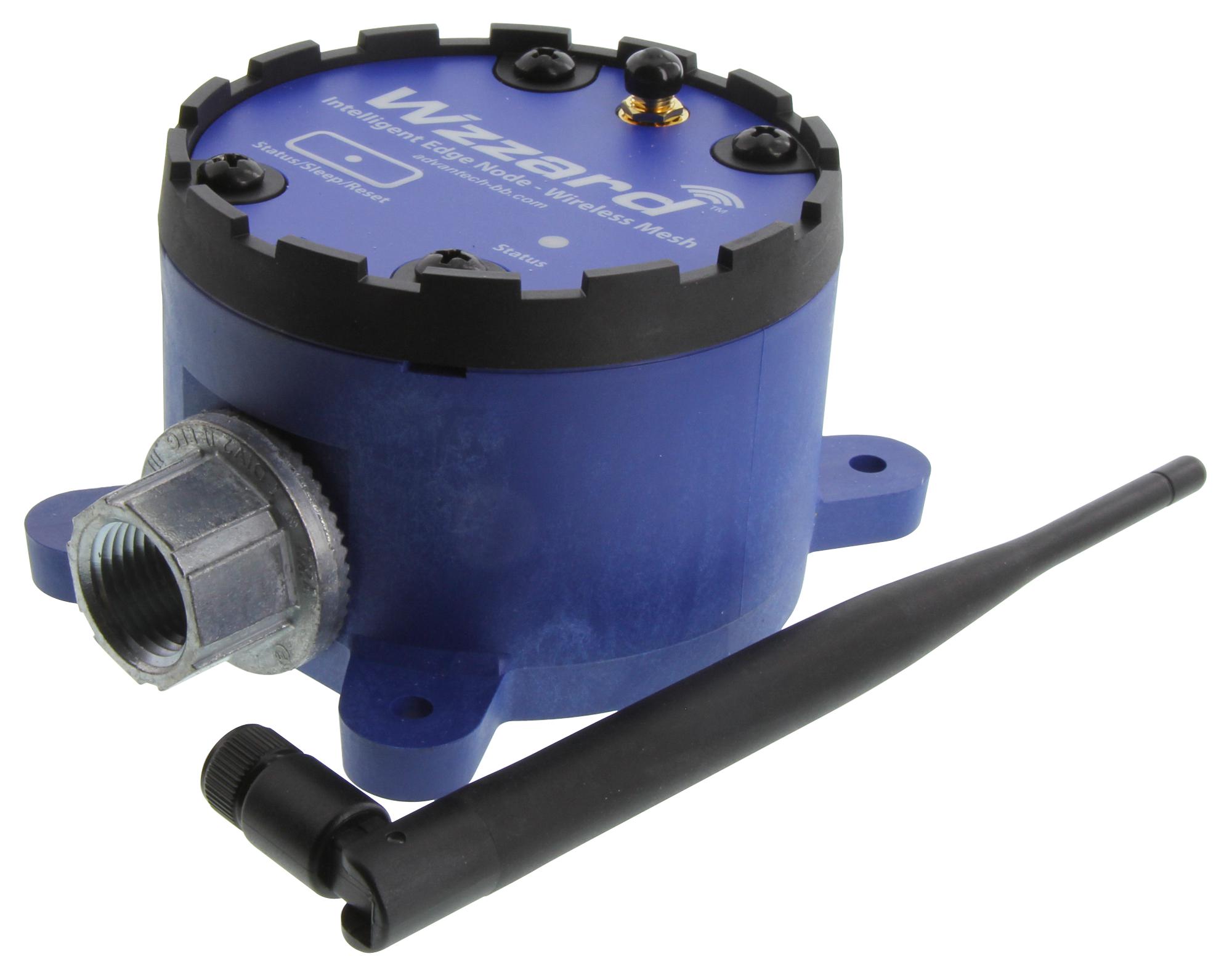

Advantech Automation BBWSD2C06010 Wireless Sensor

The Wzzard Mesh Wireless Sensors are rugged, IP67-rated industrial sensor nodes featuring ultra-low power 802.15.4e SmartMesh IP technology. Designed for industrial environments, they connect seamlessly with industry-standard sensors via M12 or conduit fittings, supporting analog, digital, and thermocouple inputs. These scalable, reliable mesh networks operate at ranges of 100 meters indoors and 300 meters outdoors, transmitting data securely using MQTT and JSON protocols. They include internal temperature sensors, long-life lithium batteries with over 5 years of operation, and are certified for hazardous locations, making them ideal for industrial IoT applications.

Authorized Distributors
Source:Newark
Part No:BB-WSD2C06010
Stock:2
Inv Date:05-30-2026
Price: Unit price: $41.9
Buy/RFQ:
Part No:BB-WSD2C06010
Stock:0
Inv Date:05-31-2026
Price: N/A
Buy/RFQ:

Advantech Automation BBWSD2C06010 Wireless Sensor Specifications:

  • Internal Batteries: (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA Batteries
  • Battery Life: >5 years based on 1-minute sampling
  • Power Supply: 40-30 VDC @ 40mA peak
  • Physical Dimensions: 194 mm (7.64 in) length, enclosure IP67 rated, fiber reinforced polyester PBT
  • Weight: 0.34 kg (0.75 lb)
  • Wireless Protocol: 802.15.4e, SmartMesh IP
  • Operating Frequency: 2.400 - 2.4835 GHz, 15 channels, 5 MHz separation
  • Range: Indoor 100 m, Outdoor 300 m
  • Data Rate: 250 kbps
  • Antenna: Omnidirectional, 3.8 dBi, 2.4 GHz, RP-SMA connector
  • Operating Temperature: -40 to +80°C (-40 to +176°F)
  • Storage Temperature: -40 to +85°C (-40 to +185°F)
  • Operating Humidity: 0 to 95%, non-condensing
  • Connectivity: M12 connector (not UL rated), conduit (UL Type 3 outdoor), magnetic mounting
  • Sensor Inputs: 2 Analog (0-10 VDC, 0-20 mA, 4-20 mA), 1 Digital (0-48 VDC), 1 Digital Counter, 2 Thermocouples (J, K, N, R, S, T, B, E)
  • Output: Digital sinking output up to 100mA @30VDC
  • Security: 128-bit AES encryption, message integrity check, synchronized key changeovers
  • Certifications: UL Class 1/Division 2 for conduit models, CE, RoHS, WEEE, FCC, IC, ICES

Buy the Advantech Series BB-WSD2x Wireless Sensor: BBWSD2C06010

Invest in the rugged, reliable wireless sensor platform from Advantech today. With long-lasting batteries, IP67 enclosure, and versatile sensor inputs, this device ensures consistent data transmission even in harsh environments. Easy to install and configure via the SmartSwarm Gateway, it supports industrial IoT applications by offering secure, scalable, and low-maintenance connectivity. Perfect for indoor and outdoor use, this sensor enhances your industrial automation and remote monitoring capabilities, helping you achieve operational excellence efficiently.

Buy Advantech BBWSD2C06010 now and experience unmatched reliability and performance for demanding industrial sensor monitoring.
