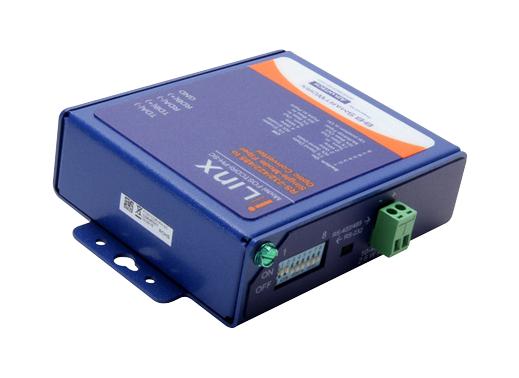

Advantech Automation BBFOSTCDRIPHSC Serial to Fiber Optic Converter
The FOSTCDRI-PH-xx series are industrial-grade serial to fiber optic converters designed for rugged environments. They support RS-232, RS-422, and RS-485 protocols with data rates from 9.6 to 115.2 kbps. Equipped with 2KV RMS isolation, they safeguard against ground loops and surges, making them suitable for electrical substations and industrial automation. Packaged in a durable IP30 metal case, these converters automatically detect data rates and support multi-mode or single-mode fiber optics for long-distance communication, with compliant safety and industrial standards for reliable operation.
Advantech Automation BBFOSTCDRIPHSC Serial to Fiber Optic Converter Specifications:
- RS-232, RS-422, RS-485 communication protocols supported
- Serial Data Rate: 9.6 to 115.2 kbps
- Isolation: 2KV RMS for data and power circuits
- Fiber Optic Wavelength: 1310 nm, Multi-mode or Single-mode
- Optical Output Power: Multi-mode -19 to 14 dBm, Single-mode -16 to -8 dBm
- Receiver Sensitivity: Better than -32 dBm
- Cable Type: 62.5/125 μm multi-mode, 9/125 μm single-mode
- Enclosure: Metal IP30, panel mount
- Operating Temperature: -40°C to 85°C
- Input Voltage: 10 to 48 VDC, Power Consumption: 0.9 W typical
- Dimensions: 13.24 x 9.29 x 3.0 cm
- Approvals: IEC 61850-3, IEEE 1613, UL C1/D2, FCC, CE
- Support for multi-drop fiber ring communication
Buy the BB Series FOSTCDRI Serial to Fiber Optic Converter: FOSTCDRIPHSC
Order the BB Series FOSTCDRIPHSC serial to fiber optic converter now to ensure reliable, secure, and long-distance data transmission in industrial environments. These high-performance converters with 2KV isolation protect your equipment against surges and ground loops, supporting RS-232, RS-422, and RS-485 protocols at data rates up to 115.2 kbps. Designed for harsh conditions, they feature multi-mode and single-mode fiber options, operate from -40°C to 85°C, and meet demanding industry standards like IEC 61850-3 and IEEE 1613. Easy to install with durable IP30 metal enclosure, they are ideal for electrical substations and automation systems. Protect your communication infrastructure by purchasing online today for reliable industrial data conversion.
Get BB Series FOSTCDRIPHSC today—designed for rugged industrial environments with advanced isolation and long-distance fiber communication capabilities.
Frequently Asked Questions
Where can I buy Advantech Automation BBFOSTCDRIPHSC?
You can click on the BUY or RFQ button to purchase BBFOSTCDRIPHSC from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBFOSTCDRIPHSC?
You can download the BBFOSTCDRIPHSC datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBFOSTCDRIPHSC?
Advantech Automation
