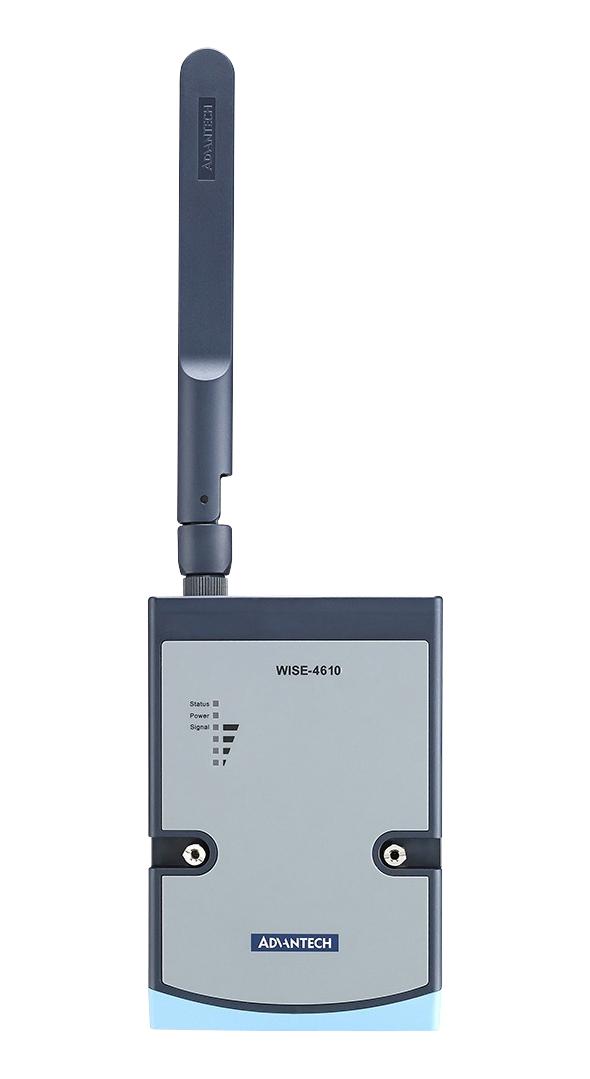

Advantech Automation WISE4610NA LoRaWAN Wireless Module
The WISE-4610 is an advanced industrial LoRa/LoRaWAN wireless module designed for long-range, low-power communication in IoT applications. It features optional GPS support for precise positioning, external antennas, and operates over multiple regions including EU, US, and JP. The module supports private and standard LoRaWAN protocols, offers up to 15 km outdoor range with high receiver sensitivity, and can be powered by solar or DC input. Its rugged IP65 enclosure makes it suitable for outdoor industrial environments requiring reliable, long-distance wireless data transmission.
Advantech Automation WISE4610NA LoRaWAN Wireless Module Specifications:
- Wireless Communication: LoRaWAN or Private LoRa, Frequency EU 863-870 MHz, US 902-928 MHz, JP 915-928 MHz
- Range: Up to 15 km outdoor with external antenna
- Transmit Power: Up to +18 dBm
- Receiver Sensitivity: Up to -136 dBm at SF=12 / 125 KHz
- Data Rate: 50 kbps EU868, 21.9 kbps US915, 5.47 kbps JP923
- Gnss Systems Supported: GPS, GLONASS, Galileo, BeiDou, SBAS
- Max Update Rate: 18 Hz for single GNSS, 10 Hz concurrent
- Position Accuracy: 2.5 m CEP, 2.0 m with SBAS
- Cold Start Time: 57 seconds, Aided Start: 7 seconds
- Power Supply: Solar rechargeable or 10-50V DC input
- Antenna: External type, internal GNSS antenna
- Enclosure: IP65 rugged outdoor housing
- Supported Protocols: LoRaWAN and Private LoRa, Spreading Factor 7-12
Buy the GMISE Series LoRaWAN Wireless Module: WISE4610NA
Order the WISE-4610NA today and experience reliable long-range wireless communication for industrial IoT applications. This rugged module supports GPS, private and standard LoRaWAN protocols, and features an IP65 enclosure suitable for outdoor deployments. Powered by solar or DC input, it offers up to 15 km outdoor range with high sensitivity, enabling efficient data transmission over great distances. Ideal for sensor networks, automation, and remote monitoring, this module ensures durability and seamless integration for your IoT projects.
Get WISE-4610NA today—built for long-range industrial IoT sensors in harsh environments.
Frequently Asked Questions
Where can I buy Advantech Automation WISE4610NA?
You can click on the BUY or RFQ button to purchase WISE4610NA from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part WISE4610NA?
You can download the WISE4610NA datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of WISE4610NA?
Advantech Automation
