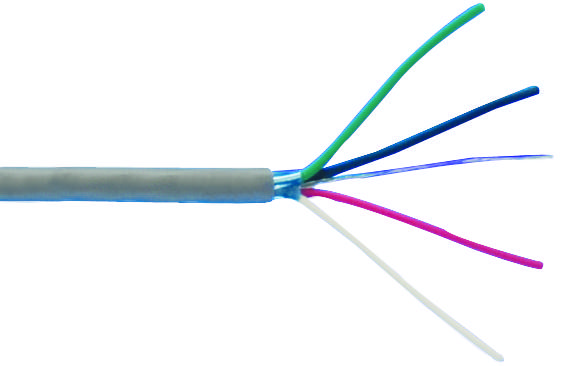

ALPHA WIRE 1212CSL005 Shielded Data Cable
The ALPHA WIRE 1212C SL005 is a versatile shielded data cable designed for applications requiring robust signal integrity and environmental protection. Constructed with 24 AWG TC conductors, PVC insulation, and an aluminum/mylar tape shield with a 25% overlap, this cable minimizes electromagnetic interference. The slate jacket provides durability and ease of identification. It is commonly used in industrial automation, data networking, and control systems where reliable data transmission is critical. The cable's construction ensures flexibility and resistance to abrasion, making it suitable for demanding environments. RoHS compliance guarantees adherence to environmental regulations, making it a sustainable choice for modern applications.
ALPHA WIRE 1212CSL005 Shielded Data Cable Specifications:
- Component 1: 2 X 1 COND
- Conductor: 24 (7/32) AWG TC
- Insulation Wall: 0.010" Nom. PVC
- Color Code: Alpha Wire Color Code D
- Cable Assembly: 2 Components Cabled
- Twists/foot: 9.6 Twists/foot (min)
- Shield: Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing Out
- Drain Wire: 24 (7/32) AWG TC
- Jacket Wall: 0.032" Nom. PVC
- Color(s): SLATE
- Print: ALPHA WIRE-* P/N 1212C 2C 24 AWG<br>SHIELDED 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX<br>CSA TYPE CMG FT4 CE ROHS<br>* = Factory Code
- UL Style: AWM/STYLE 2576
- UL Voltage Rating: 80°C / 150 VRMS
- UL CM Rating: 75°C
- UL VW-1 Rating: VW-1
- CSA CMG Rating: 60°C
- CSA FT4 Rating: FT4
- CE Directive: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 10.6 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 49 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 88 pf/ft @1 kHz, Nominal
- Characteristic Impedance: 46 Ω
- Inductance: 0.19 µH/ft, Nominal
- Conductor DCR: 25 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 20.7 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 500 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 100 FT: 6.5 x 2 x 1.9 Continuous length
Buy the 1212C SL005 ALPHA WIRE Shielded Data Cable | myMectronic
Purchase the ALPHA WIRE 1212C SL005 cable securely and efficiently to ensure reliable data transmission in your industrial setup.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 1212CSL005?
You can click on the BUY or RFQ button to purchase 1212CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1212CSL005?
You can download the 1212CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1212CSL005?
ALPHA WIRE
