ALPHA WIRE 1561RD005 Hookup Wire

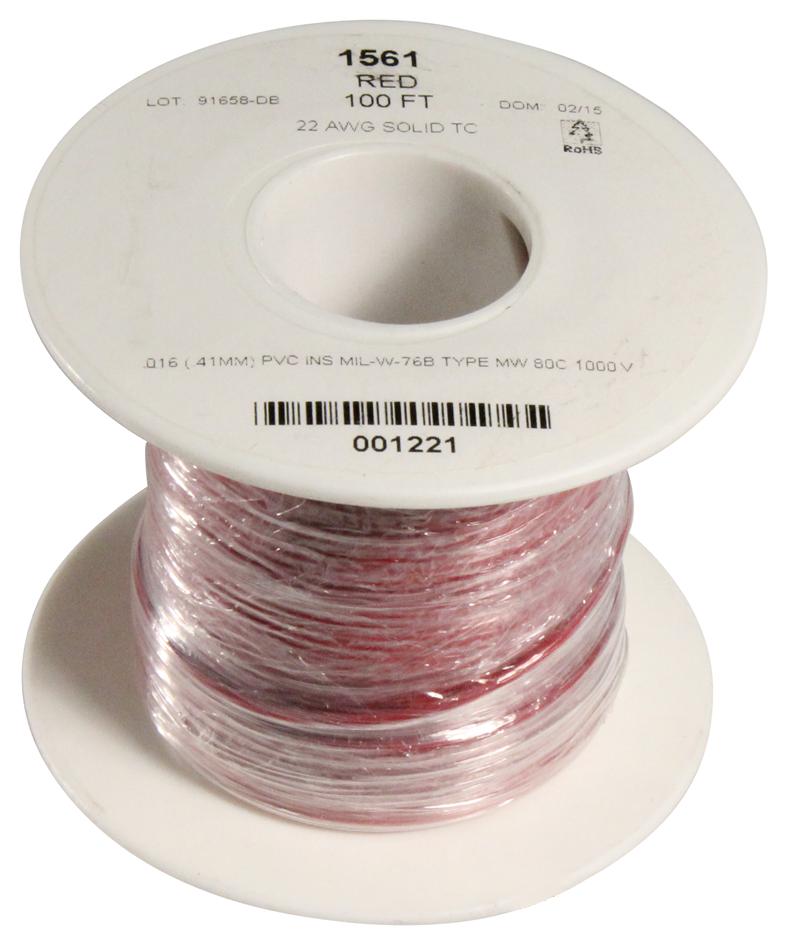

The 1561 RD005 is a 100-foot red hookup wire with a solid tinned copper conductor and PVC insulation. Designed for use in control cabinets within protected environments or in specialized applications such as machine tools on factory floors, high-temperature ovens, or off-road construction equipment. This wire offers durability against wear and abrasion, as well as resistance to oils, solvents, and chemicals. It features a maximum pull tension of 51 pounds, a nominal inductance of 0.07 µH per foot, and a temperature range from -40°C to 80°C. Suitable for defense, military, aerospace, and industrial applications.
ALPHA WIRE 1561RD005 Hookup Wire Specifications:
- Conductor Material: Tinned copper
- Conductor Size: 22 AWG
- Insulation Thickness: 0.016 inches
- Insulation Material: PVC
- Color: Red
- Voltage Rating: 1000 V
- Temperature Range: -40°C to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 51 pounds maximum
- Inductance: 0.07 µH per foot
- Conductor Resistance: 16.9 Ω per 1000 ft at 20°C
- Applied Standards: MIL-W-76B TYPE MW 80°C / 1000 V
- Environmental Compliance: RoHS 2, REACH, California Proposition 65
Buy the Buy AlphaWire Hookup Wire Part Number 1561RD005 Online
Purchase AlphaWire hookup wire part number 1561RD005 online today for reliable and flexible wiring solutions. This 100-foot red wire with tinned copper conductor and PVC insulation is ideal for control cabinets, machine tools, high-temperature ovens, and off-road equipment. It offers superior durability, resistance to oils, solvents, and chemicals, and meets MIL standards. With a maximum pull tension of 51 pounds, it ensures safe installation in demanding environments. Order now for quick delivery and long-lasting performance in industrial, aerospace, military, and control applications.
Get AlphaWire 1561RD005 today—durable hook-up wire designed for industrial and military wiring needs with excellent chemical and wear resistance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1561RD005?
You can click on the BUY or RFQ button to purchase 1561RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1561RD005?
You can download the 1561RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1561RD005?
ALPHA WIRE
