ALPHA WIRE 1852RD001 Hook-up wire

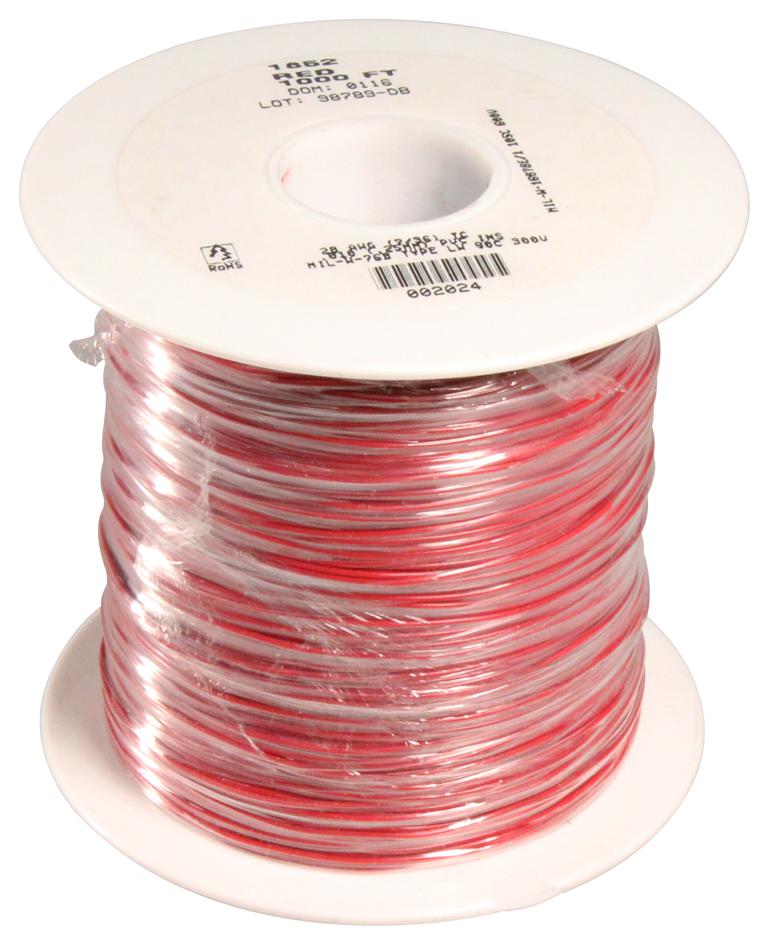

The 1852 RD001 is a 1,000-foot red hook-up wire with a tinned copper conductor and PVC insulation. Designed for use in control cabinets within protected environments, it is suitable for machine tools on factory floors, high-temperature ovens, and off-road construction equipment. The wire offers resistance to wear and abrasion, as well as good electrical performance and resistance to oils, solvents, and chemicals. It has a maximum pull tension of 1.37 lbs, a nominal inductance of 0.07 µH per foot, and operates within a temperature range of -55°C to 105°C. Suitable for applications in defense, military, aerospace, and industrial sectors.
ALPHA WIRE 1852RD001 Hook-up wire Specifications:
- Conductor: Tinned copper, AWG 28 (7/36)
- Insulation: PVC, 0.010" wall thickness
- Color options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, White/Black, White/Red, White/Green, White/Yellow, White/Blue, White/Brown, White/Orange, White/Slate, White/Violet
- Voltage Rating: 600 V
- Temperature Range: -55°C to 105°C
- Pull Tension: Max 1.37 lbs
- Inductance: 0.07 µH/ft
- Conductor Resistance: 65 Ω/1000 ft @20°C
- Bend Radius: 10X Cable Diameter
- Cable Length: 1000 ft and 100 ft spools
- Compliance: RoHS and China RoHS (SJ/T 11364-2014), MIL-W-16878E/1
Buy the AlphaWire 1852 U–2013 Reliable Hook-up Wire for Industrial Applications
Purchase the Alpha Wire 1852 hook-up wire online today and benefit from high-quality, RoHS-compliant cable designed for demanding industrial, military, and aerospace applications. This 1000-foot spool of red wire features a tinned copper conductor with PVC insulation, offering excellent resistance to wear, abrasion, oils, solvents, and chemicals. It operates within a temperature range of -55°C to 105°C, with a maximum pull tension of 1.37 lbs and a nominal inductance of 0.07 µH per foot. Ensure your projects meet strict industry standards with this dependable control cable.
Order your Alpha Wire 1852 series hook-up wire today and ensure reliable electrical connections in your industrial, military, or aerospace projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1852RD001?
You can click on the BUY or RFQ button to purchase 1852RD001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1852RD001?
You can download the 1852RD001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1852RD001?
ALPHA WIRE
