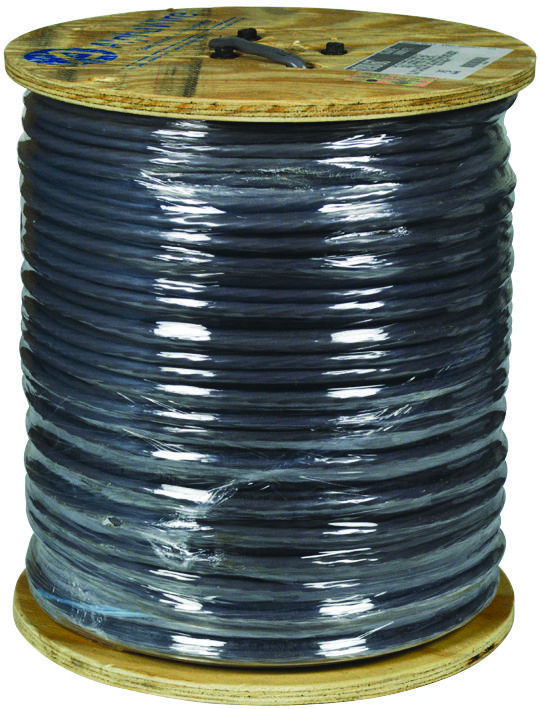

ALPHA WIRE 18986CSL001 6-Core Control Cable
The 1898/6C SL001 is a 6-core unshielded cable with a tinned copper conductor, PVC insulation, and a slate PVC jacket. Suitable for audio, data, control, and instrumentation applications, it features a maximum pull tension of 75 pounds, a capacitance of 33 pF/ft at 1 kHz, an inductance of 0.18 µH/ft, and a conductor DCR of 7.2 ohms per 1000 feet at 20°C. This flexible, low-voltage wire complies with UL and CSA standards, with a temperature range of -20°C to 80°C, making it ideal for various electronic and industrial uses.
ALPHA WIRE 18986CSL001 6-Core Control Cable Specifications:
- Construction: 6-core unshielded cable with PVC insulation and slate jacket
- Conductor: Tinned copper, 18 AWG (16/30), nominal resistance 7.2 ohms per 1000 ft at 20°C
- Insulation: PVC, 0.016" wall thickness, color code D (Slate)
- Jacket: PVC, 0.020" wall, color Slate, maximum outer diameter 0.278"
- Mechanical: Max pull tension 75 lbs, bend radius 10x cable diameter
- Electrical: Voltage rating 300 V (UL), capacitance 33 pF/ft at 1 kHz, inductance 0.18 µH/ft
- Environmental: Temperature range -20°C to +80°C, suitable for various indoor applications
Buy the Alpha Wire Series 1898/6C Cable: 18986CSL001
Order the Alpha Wire 18986CSL001 6-core control cable online today. Designed for reliable performance in electronic, industrial, and instrumentation applications, this cable features PVC insulation, a slate jacket, and 18 AWG tinned copper conductors. With UL and CSA certification, it withstands temperatures from -20°C to 80°C and supports up to 300 V, ensuring safety and efficiency. Perfect for automation, control systems, audio, and data connectivity, buy now for quick delivery and trusted quality.
Get Alpha Wire 18986CSL001 today—built for flexibility, durability, and reliable electrical performance in industrial and electronic applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 18986CSL001?
You can click on the BUY or RFQ button to purchase 18986CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 18986CSL001?
You can download the 18986CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 18986CSL001?
ALPHA WIRE
