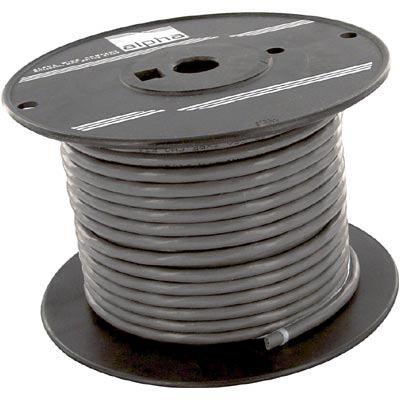

ALPHA WIRE 882004SL005 Electrical Cable
This 20 AWG cable features a 0.016-inch PVC wall insulation and a durable PVC jacket, rated at 300V and designed for cable assemblies with 4 twisted components. It complies with UL 2464 80°C and CSA AWM standards, making it suitable for various electrical applications. With a temperature range of -20°C to 90°C and a bend radius of 10 times the cable diameter, it offers reliable performance in environments requiring flexible, flame-retardant wiring solutions. It supports high-quality electrical transmission with low capacitance and inductance, ideal for industrial and control systems.
ALPHA WIRE 882004SL005 Electrical Cable Specifications:
- Conductor: 20 (10/30) AWG TC
- Insulation Wall Thickness: 0.016 inches PVC
- Jacket Wall Thickness: 0.032 inches PVC
- Jacket Color: Slate
- Jacket Thickness: 0.231 inches (0.242 Max.)
- UL Rating: 2464 80°C / 300V
- CSA Rating: AWM II AB 90°C / 300V
- Voltage Rating: 300V
- Temperature Range: -20°C to 90°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 31 Lbs
- Capacitance: 30 pF/ft @1kHz
- Inductance: 0.19 μH/ft
- Conductor DCR: 11.5 Ω/1000ft @20°C
- Physical Length Options: 1000 FT, 500 FT, 100 FT
- Compliance: RoHS 3, REACH, EU Low Voltage Directive 2006/95/EC
Buy the Alpha Wire 882004 U– Reliable Electrical Cable for Industrial Applications
Purchase the Alpha Wire 882004 cable online today to enjoy high-quality, flexible wiring that meets UL and CSA standards. With PVC insulation and a durable jacket, this 20 AWG cable offers excellent electrical performance and safety features ideal for industrial control and wiring applications. Its compliance with RoHS and REACH regulations ensures environmentally responsible use. Secure your supply of reliable electrical cable and optimize your project's performance by ordering now for fast delivery and expert support.
Order your Alpha Wire 882004 cable today and ensure your projects benefit from dependable, flexible wiring solutions that meet strict industry standards.
Frequently Asked Questions
Where can I buy ALPHA WIRE 882004SL005?
You can click on the BUY or RFQ button to purchase 882004SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 882004SL005?
You can download the 882004SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 882004SL005?
ALPHA WIRE
