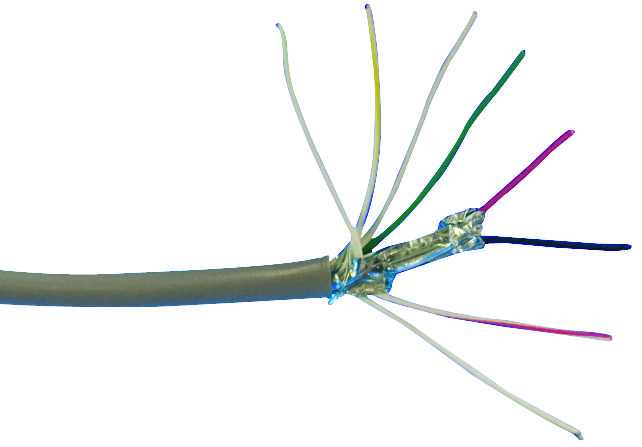

ALPHA WIRE 2466CSL001 Shielded Twisted Pair Cable
The ALPHA WIRE 2466C SL001 is a shielded twisted pair cable designed for reliable data transmission in industrial environments. Constructed with 22 AWG TC conductors insulated with polypropylene and cabled together, this cable provides excellent signal integrity. The aluminum/mylar tape shield minimizes electromagnetic interference, while the PVC jacket offers durability and protection. Compliant with RoHS and CE standards, the 2466C SL001 is suitable for applications requiring robust and reliable data communication.
ALPHA WIRE 2466CSL001 Shielded Twisted Pair Cable Specifications:
- Conductor AWG: 22 (7/30) AWG TC
- Insulation Material: Polypropylene (PP)
- Insulation Wall Thickness: 0.010"
- Pair Construction: 2/Cond Cabled Together
- Twists per Foot (Pair): 4.4 (min)
- Shield Material: Alum/Mylar Tape
- Shield Overlap: 25%
- Foil Direction: Foil Facing Out
- Cable Construction: 2 Components Cabled
- Drain Wire AWG: 24 (7/32) AWG TC
- Jacket Material: PVC
- Jacket Wall Thickness: 0.020"
- Jacket Color: SLATE, BLACK
- Print: ALPHA WIRE-* P/N 2466C 2PR 22 AWG EXXXXXX SHIELDED 75C CMG (UL) C(UL) CE ROHS * = Factory Code
- UL Rating: CMG
- CSA Rating: C(UL) TYPE CMG
- Temperature Range: -20 to 75°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 25 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Characteristic Impedance: 60 Ω
- Inductance: 0.18 µH/ft, Nominal
- Mutual Capacitance: 25 pf/ft @1 kHz, Nominal
- Ground Capacitance: 45 pf/ft @1 kHz, Nominal
- Conductor DCR: 16.1 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 16 Ω/1000ft @20°C, Nominal
- Packaging (1000 FT): 12 x 6 x 3.5 inches
- Packaging (BOX 1000FT): 9-1/2 EASY REEL: Continuous length
- Packaging (500 FT): 12 x 4.5 x 3.5 inches
- Packaging (100 FT): 6.5 x 2 x 1.9 inches
Buy the 2466C SL001 ALPHA WIRE Shielded Twisted Pair Cable | myMectronic
Purchase the ALPHA WIRE 2466C SL001 cable securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 2466CSL001?
You can click on the BUY or RFQ button to purchase 2466CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2466CSL001?
You can download the 2466CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2466CSL001?
ALPHA WIRE
